Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect fan control amp. connector.
  2. Remove screws from the fan control amp. and then remove fan control amp.

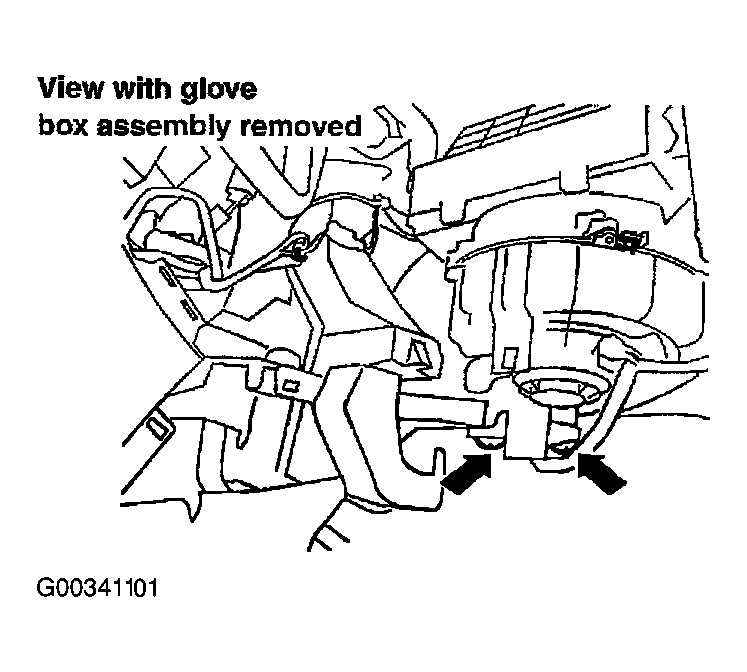

    Fig 1: Locating Fan Control Amp.
    G00341101Courtesy of NISSAN MOTOR CO., U.S.A.
