Side Ventilator Grille RH

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel, refer to "REMOVAL AND INSTALLATION under INSTRUMENT PANEL ASSEMBLY under GAUGES & INSTRUMENT PANELS article in ACCESSORIES & EQUIPMENT".
  2. Release the tabs to remove side ventilator grille RH.

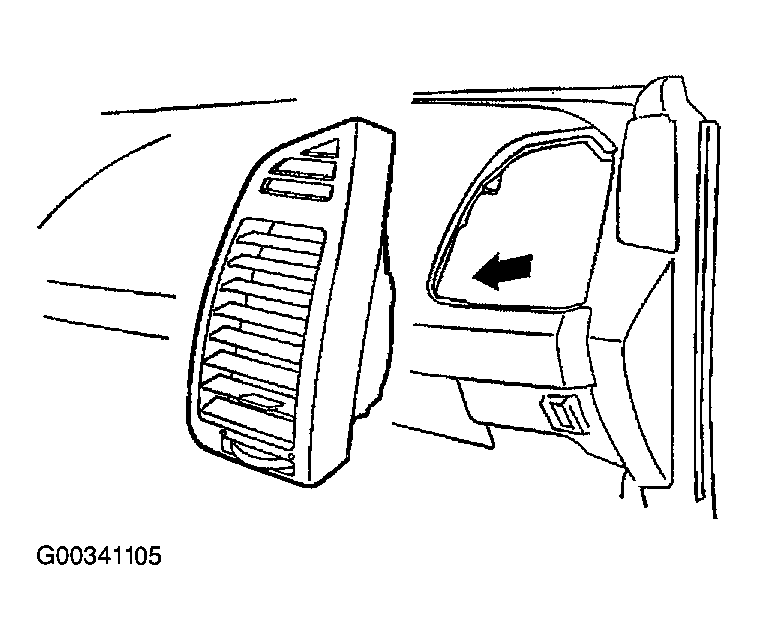

    Fig 1: Removing Side Ventilator Grille (RH)
    G00341105Courtesy of NISSAN MOTOR CO., U.S.A.
