Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the glove box assembly. Refer to "INSTRUMENT PASSENGER LOWER PANEL AND GLOVE BOX under REMOVAL AND INSTALLATION under GAUGES & INSTRUMENT PANELS article in ACCESSORIES & EQUIPMENT".
  2. Remove console side cover. Refer to "CENTER CONSOLE under REMOVAL AND INSTALLATION under GAUGES & INSTRUMENT PANELS article in ACCESSORIES & EQUIPMENT".
  3. Remove the ECM.
  4. Disconnect the blower motor, intake door motor and fan control amp. connector
  5. Disconnect the main harness from the top of the blower unit.
  6. Remove the 2 bolts and 1 screw from the blower unit, then remove it.

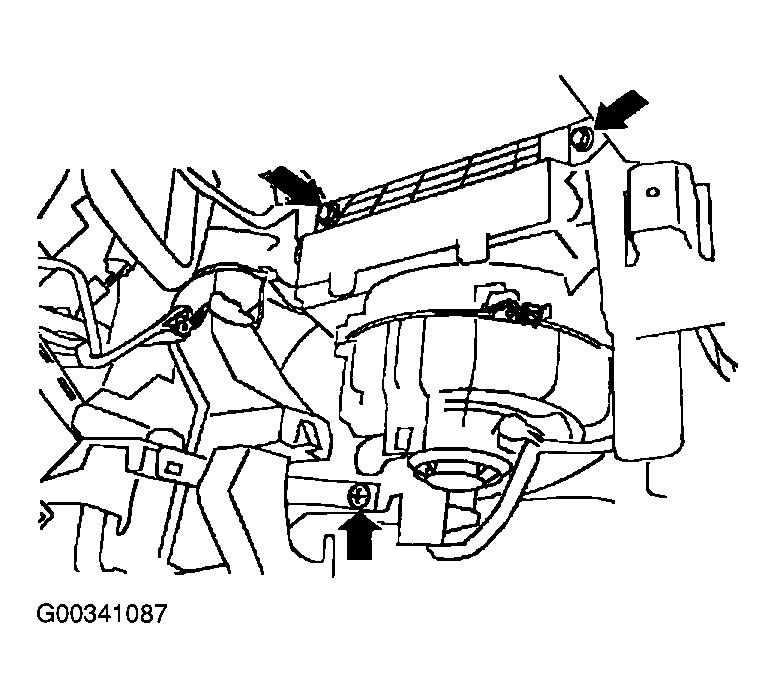

    Fig 1: Locating Blower Unit
    G00341087Courtesy of NISSAN MOTOR CO., U.S.A.
