Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the blower unit. Refer to "Removal and Installation ".
  2. Release the 8 tabs attaching blower motor to blower unit case and then remove it.

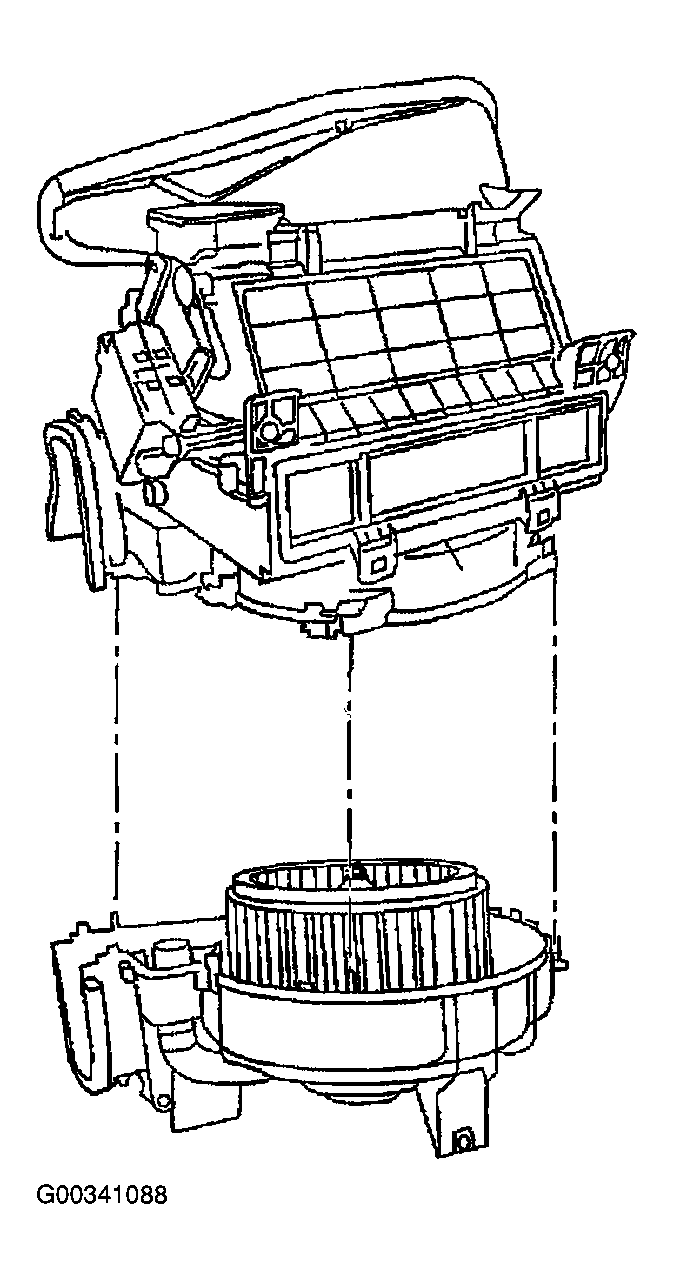

    Fig 1: Removing Blower Motor
    G00341088Courtesy of NISSAN MOTOR CO., U.S.A.
