Instrument Panel Junction & Relay Blocks
WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

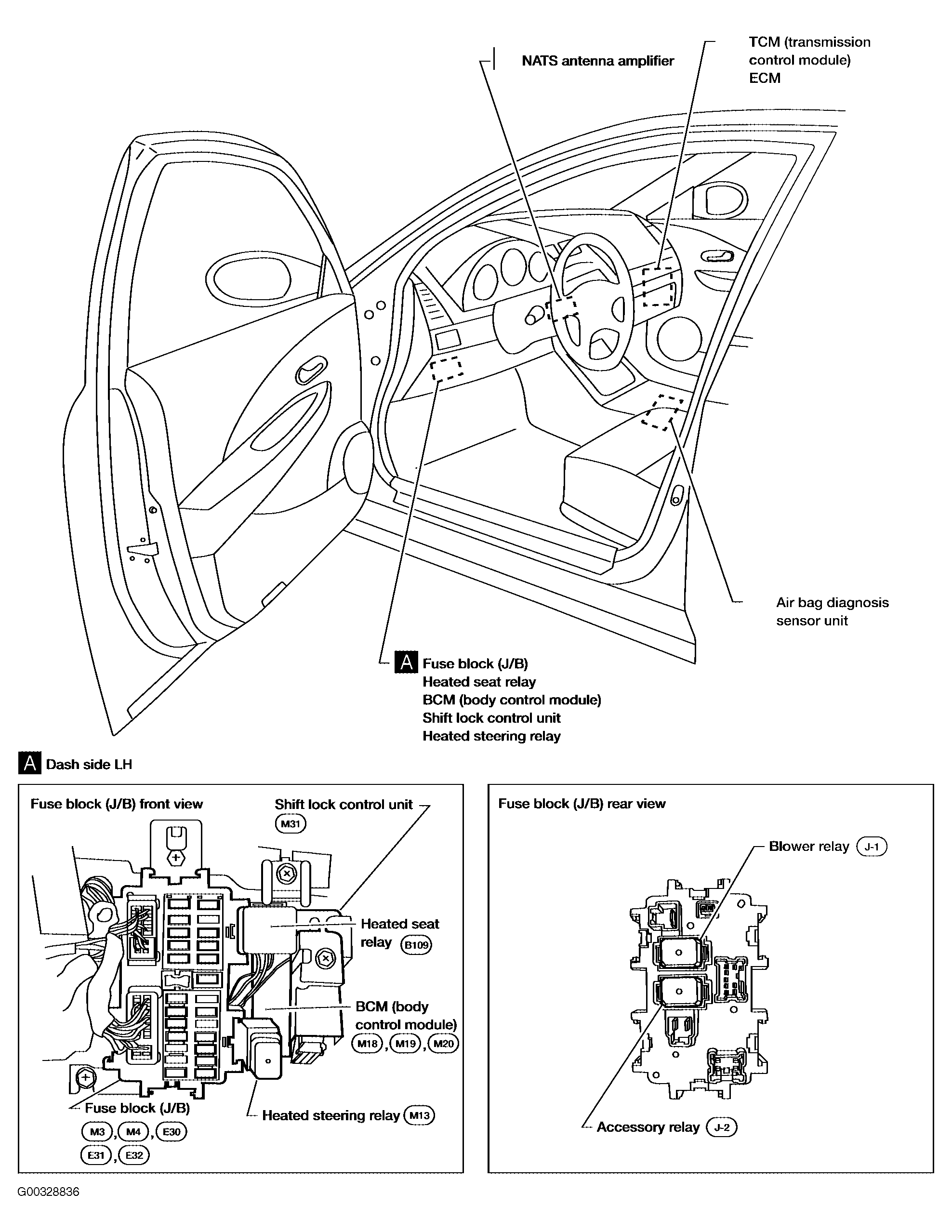

For instrument panel and passenger area fuse block, relay, control module and unit locations, see Fig 1.
Fuse block is located behind driver's side lower instrument panel. For fuse identification, see Figure, Figure, Figure, Figure and Figure . For circuit wiring diagram, see POWER DISTRIBUTION in SYSTEM WIRING DIAGRAMS article.
