Engine Compartment Junction & Relay Blocks

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For engine compartment fuse, fusible link and relay box locations, see Fig 1-Fig 14 .

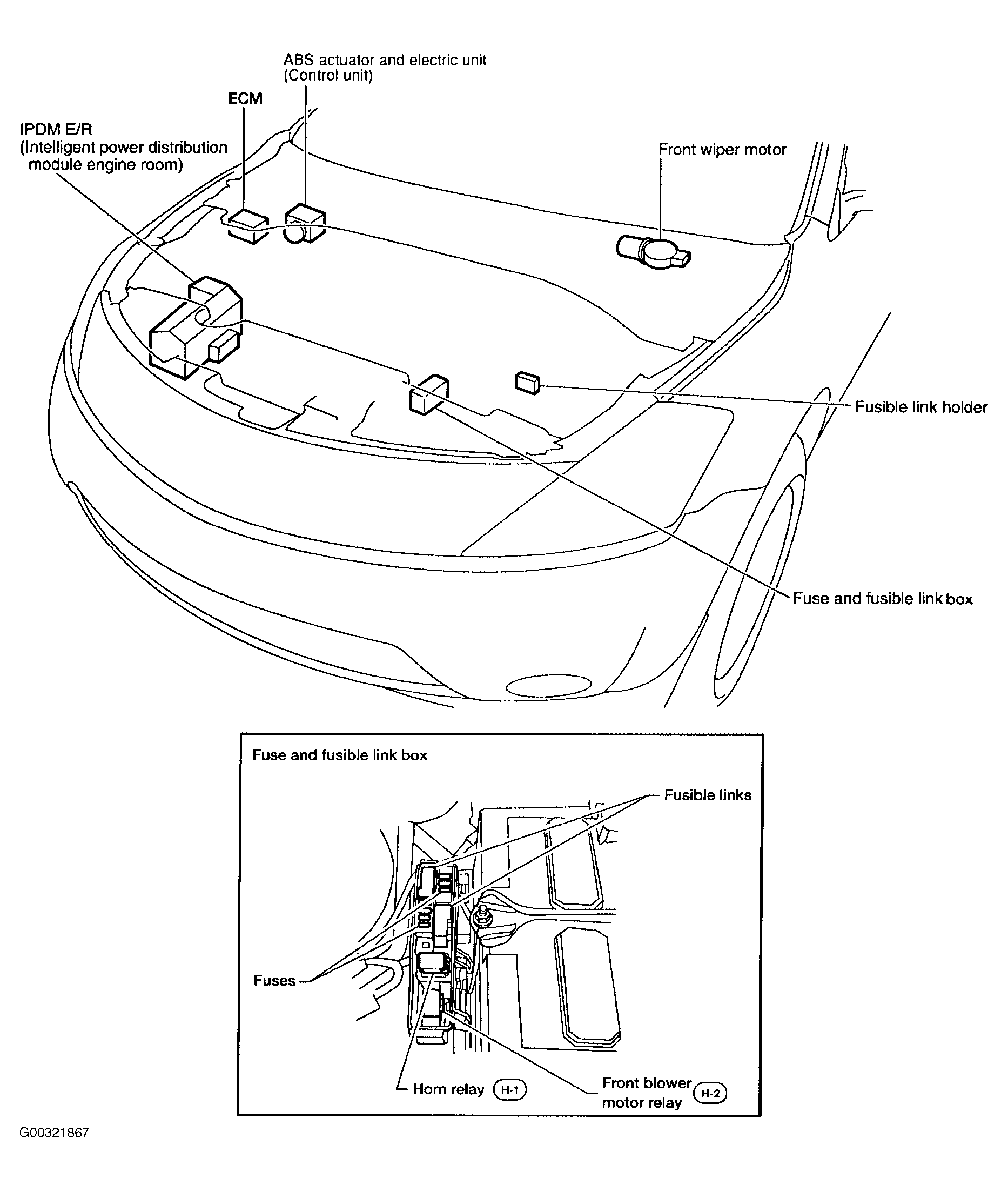

Fig 1: Locating Engine Compartment Fuse Link Holder & Fusible Link Box

G00321867

Courtesy of NISSAN MOTOR CO., U.S.A.

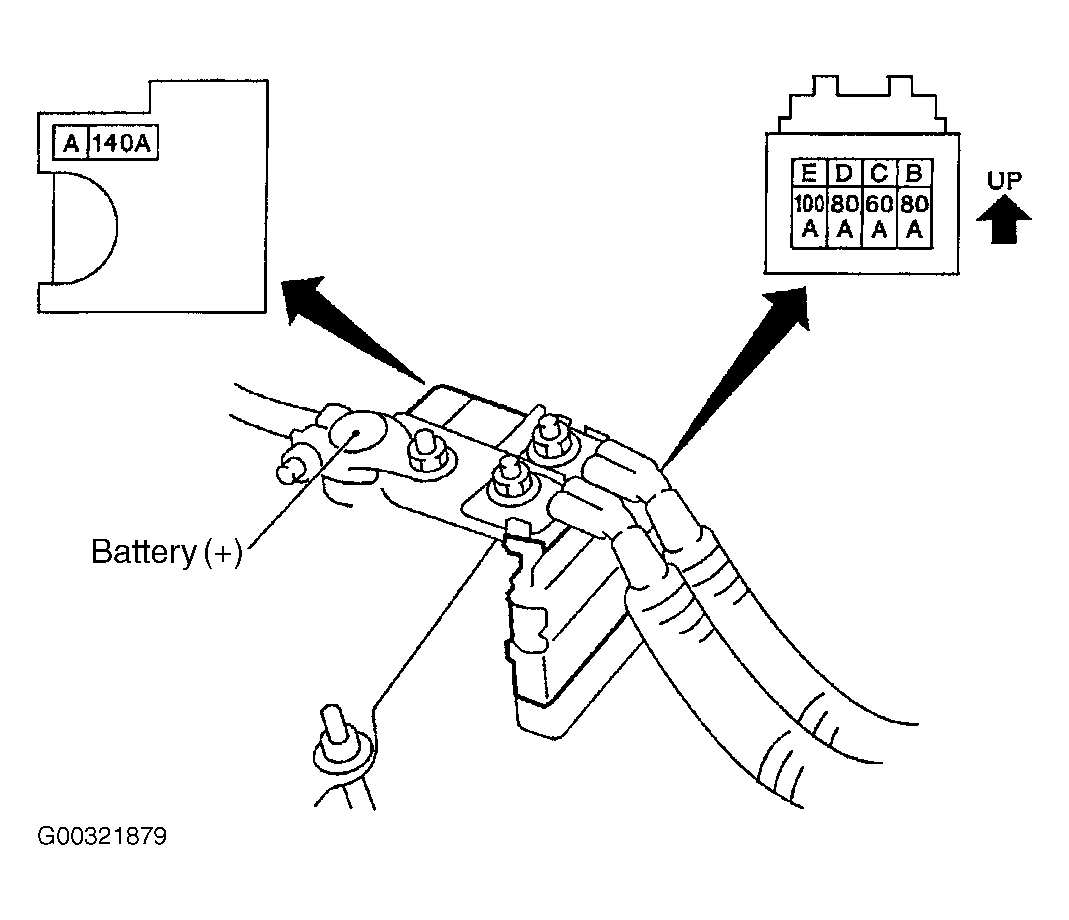

Fig 2: Locating Fusible Link Holder Components

G00321879

Courtesy of NISSAN MOTOR CO., U.S.A.

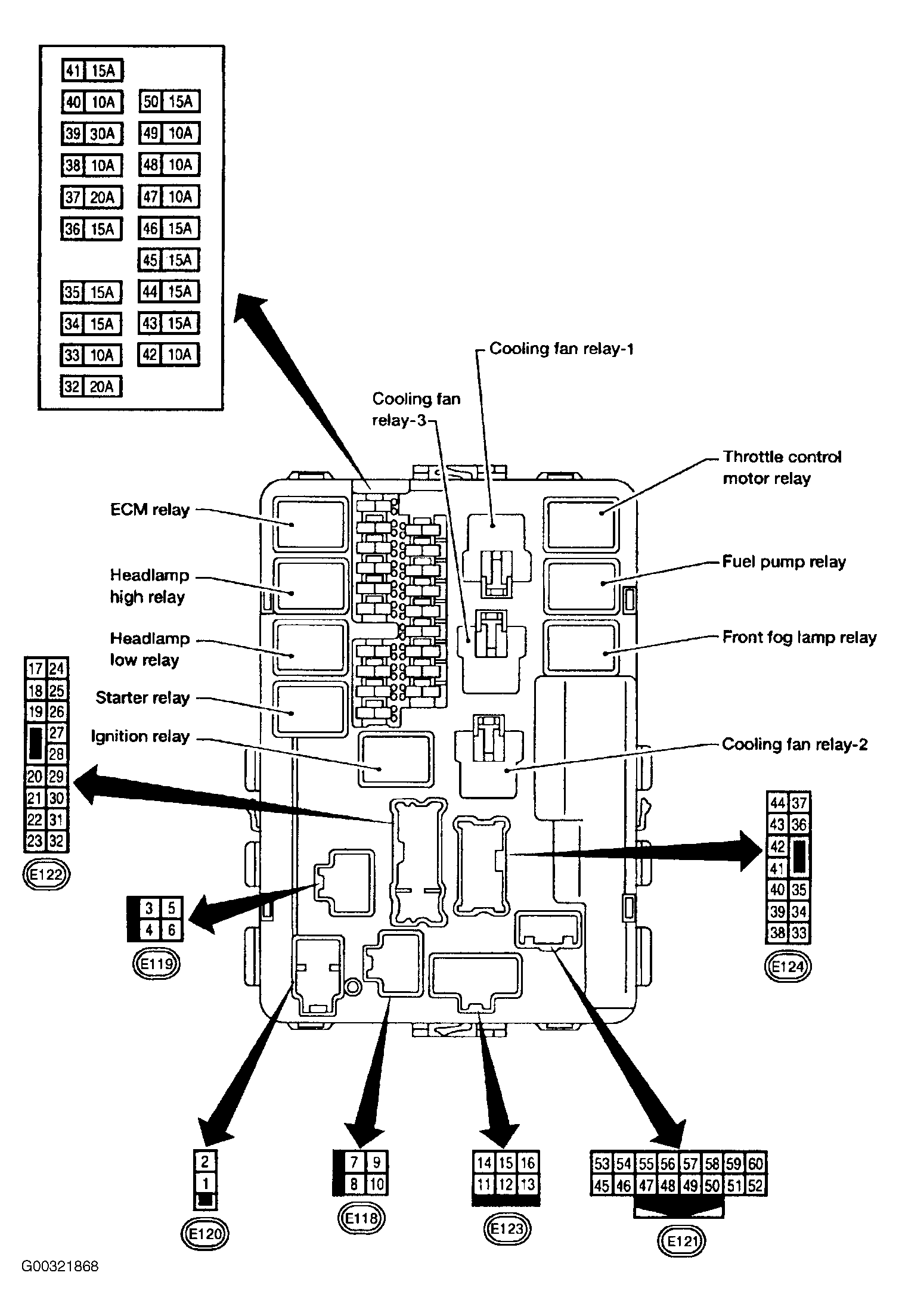

Fig 3: Locating & Identifying Intelligent Power Distribution Module Relays & Fuses

G00321868

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: IPDM Relays (1 Of 2)

G00321870

Courtesy of NISSAN MOTOR CO., U.S.A.

IPDM E/R RELAY IDENTIFICATION

RELAY DESCRIPTION
A/C Relay
Throttle Control Motor Relay
Tail Lamp Relay
CAUTION: IPDM E/R Integrated Relays Cannot Be Removed.

Fig 5: IPDM Relays (2 Of 2)

G00321871

Courtesy of NISSAN MOTOR CO., U.S.A.

IPDM E/R RELAY IDENTIFICATION

RELAY DESCRIPTION
Cornering Lamp Relay LH
Cornering Lamp Relay RH
Front Wiper Relay
Front Wiper Hi Relay
Front Fog Lamp Relay
CAUTION: IPDM E/R Integrated Relays Cannot Be Removed.

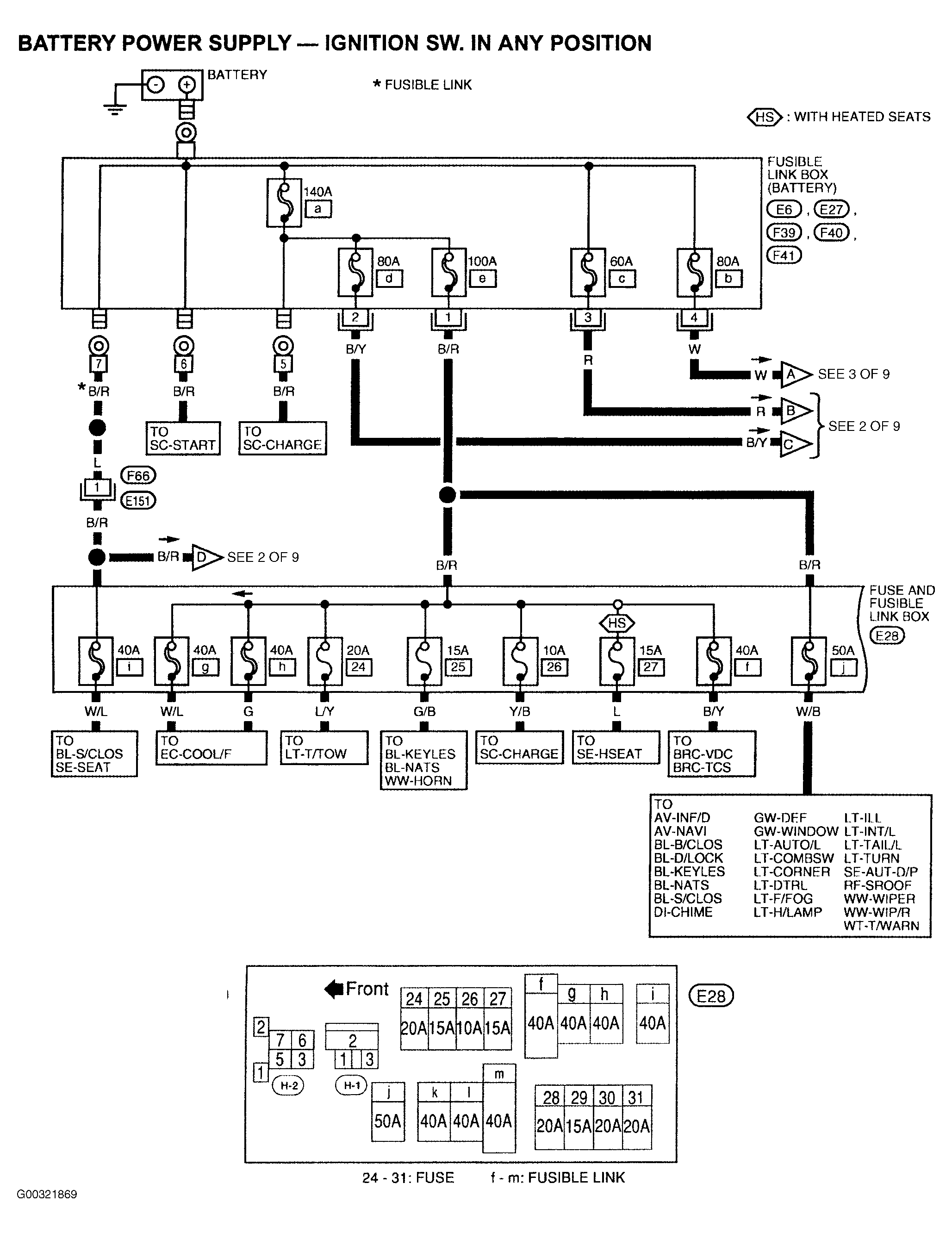

Fig 6: Identifying Circuit Protection Components (1 of 9)

G00321869

Courtesy of NISSAN MOTOR CO., U.S.A.

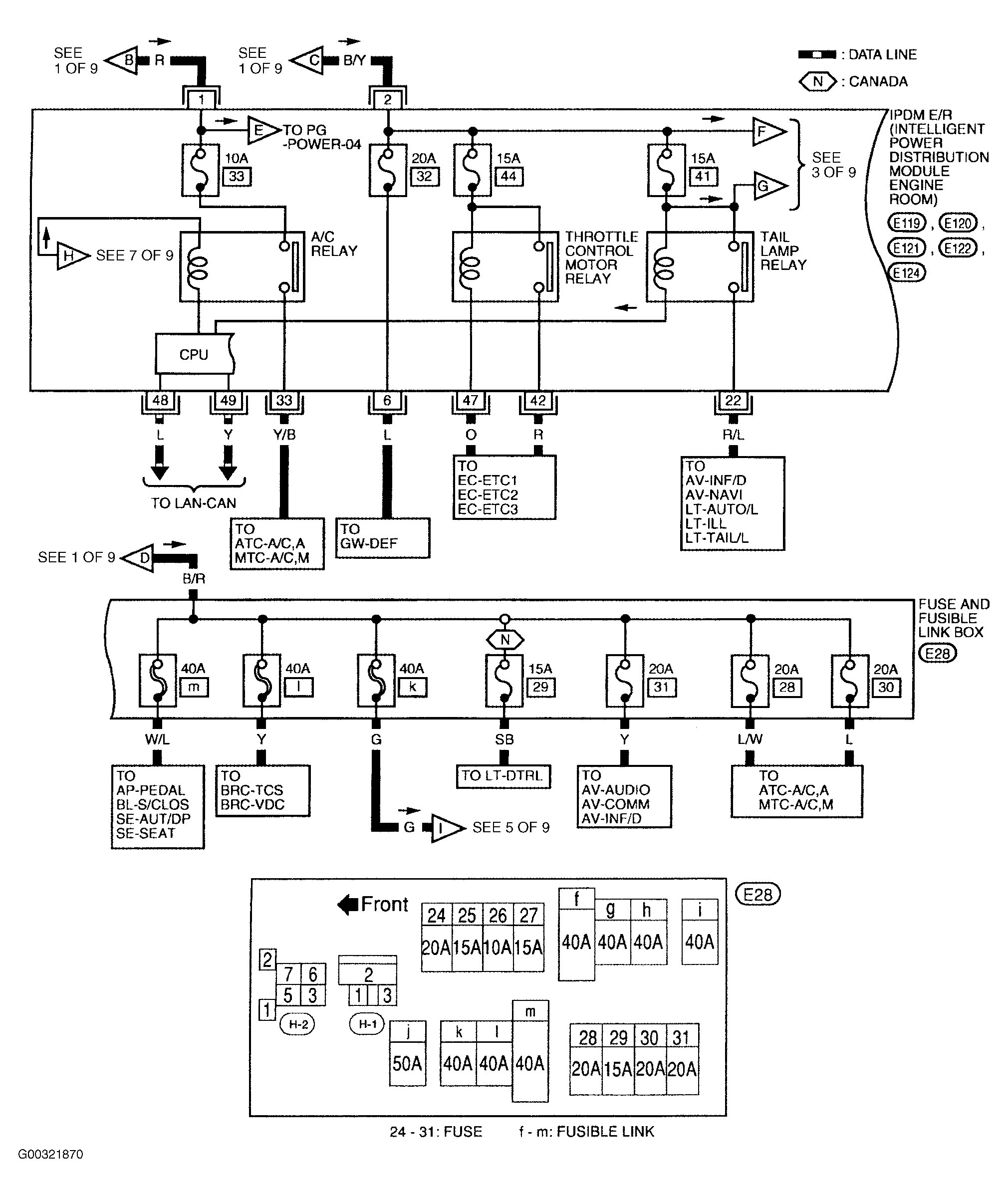

Fig 7: Identifying Circuit Protection Components (2 of 9)

G00321870

Courtesy of NISSAN MOTOR CO., U.S.A.

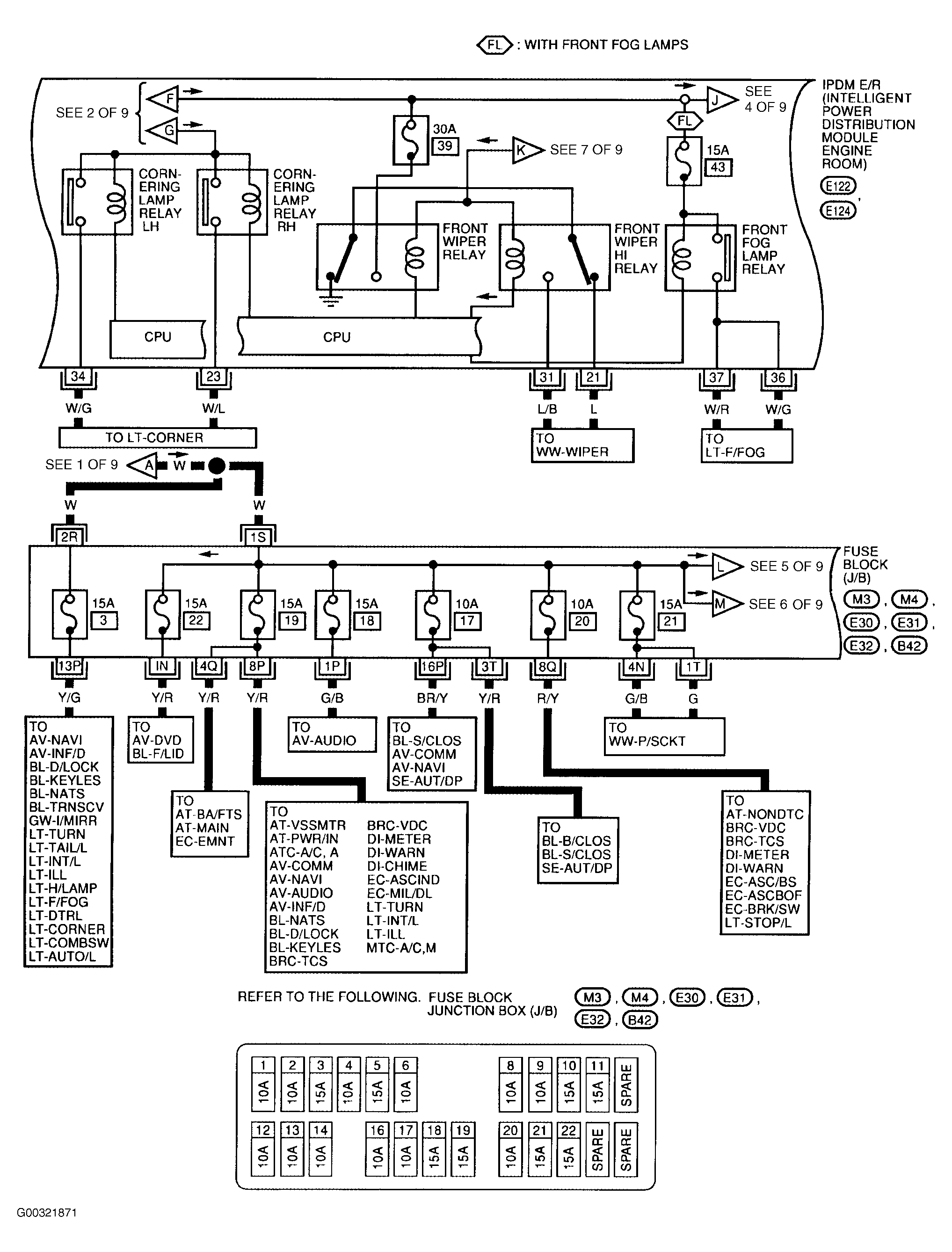

Fig 8: Identifying Circuit Protection Components (3 of 9)

G00321871

Courtesy of NISSAN MOTOR CO., U.S.A.

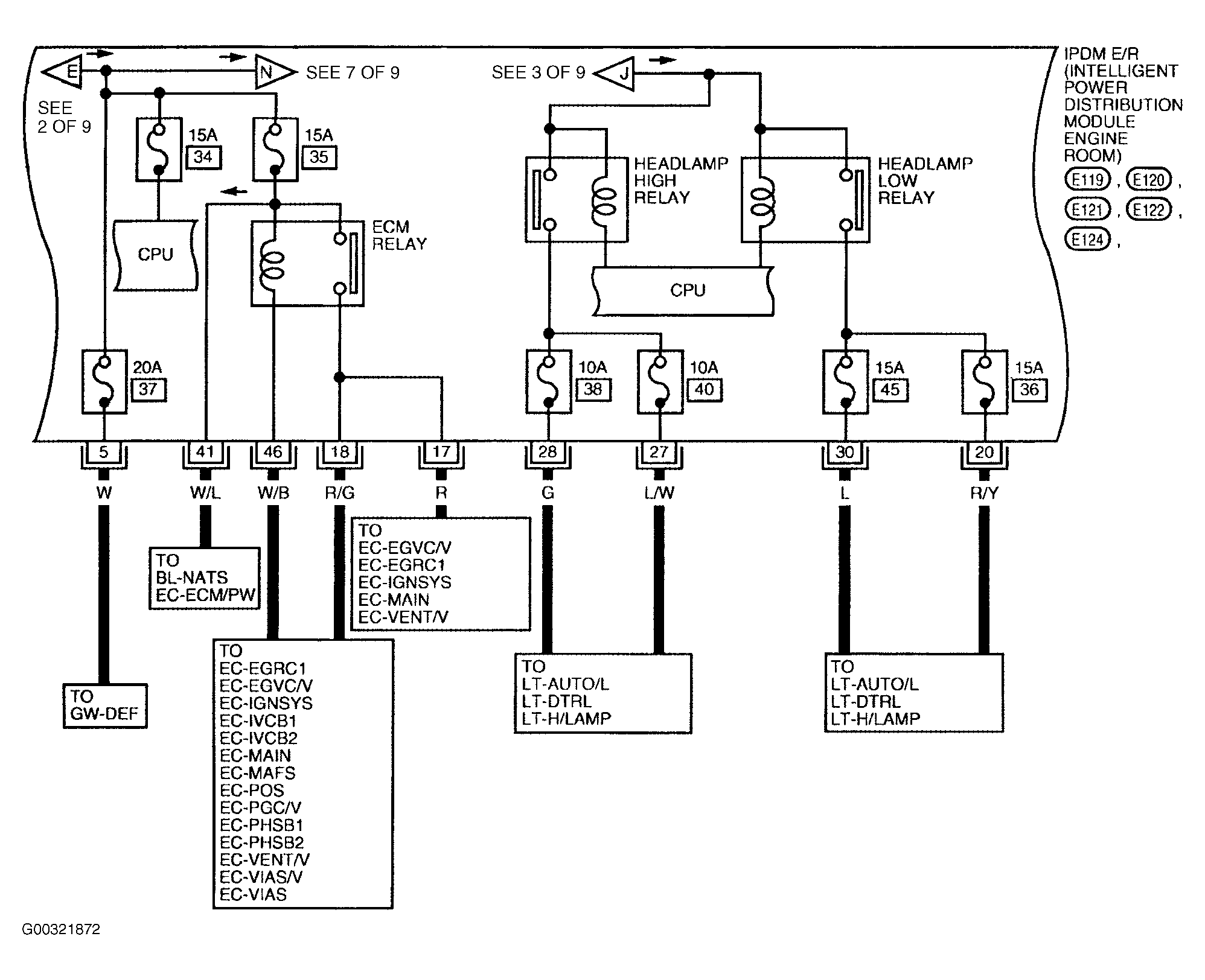

Fig 9: Identifying Circuit Protection Components (4 of 9)

G00321872

Courtesy of NISSAN MOTOR CO., U.S.A.

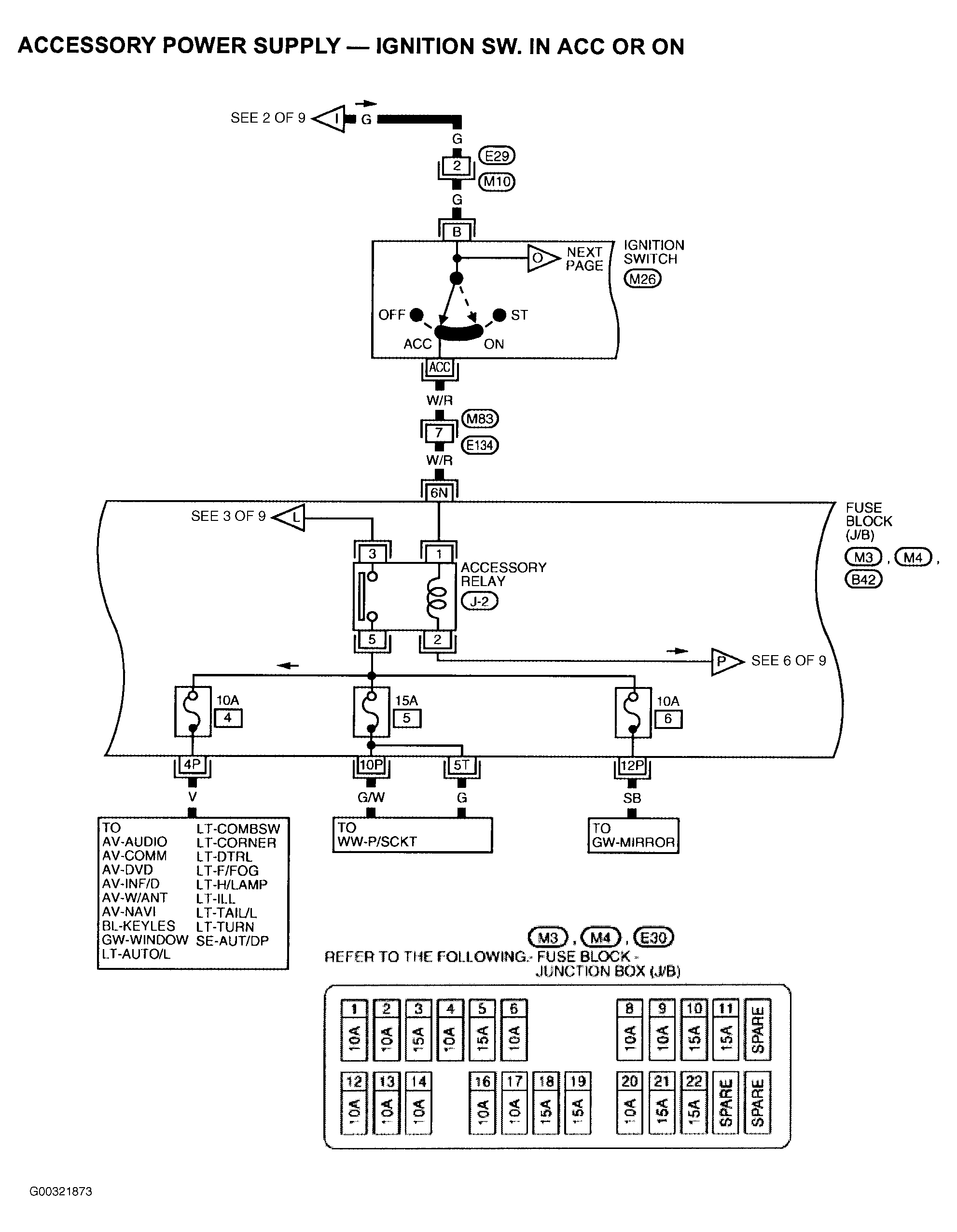

Fig 10: Identifying Circuit Protection Components (5 of 9)

G00321873

Courtesy of NISSAN MOTOR CO., U.S.A.

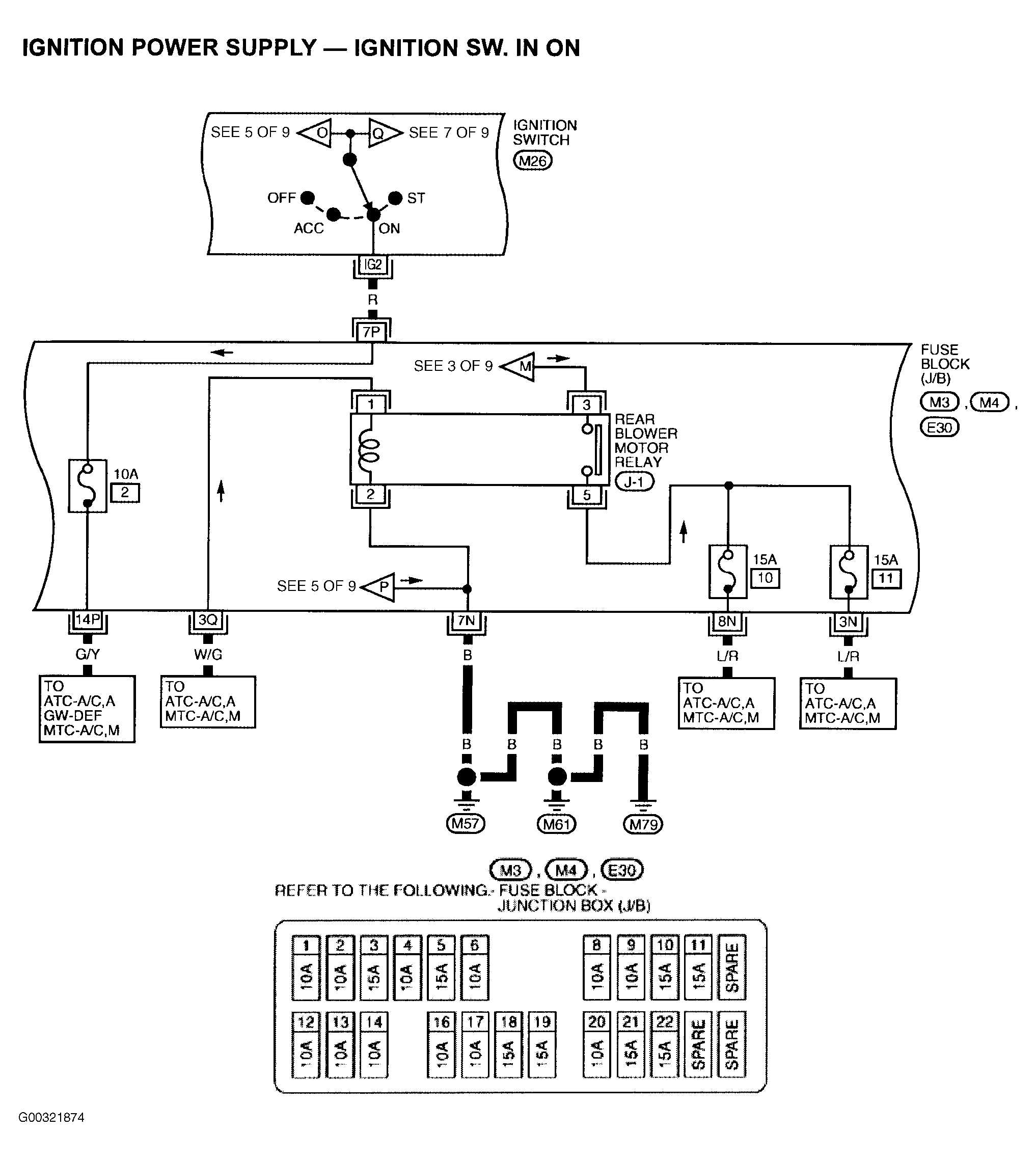

Fig 11: Identifying Circuit Protection Components (6 of 9)

G00321874

Courtesy of NISSAN MOTOR CO., U.S.A.

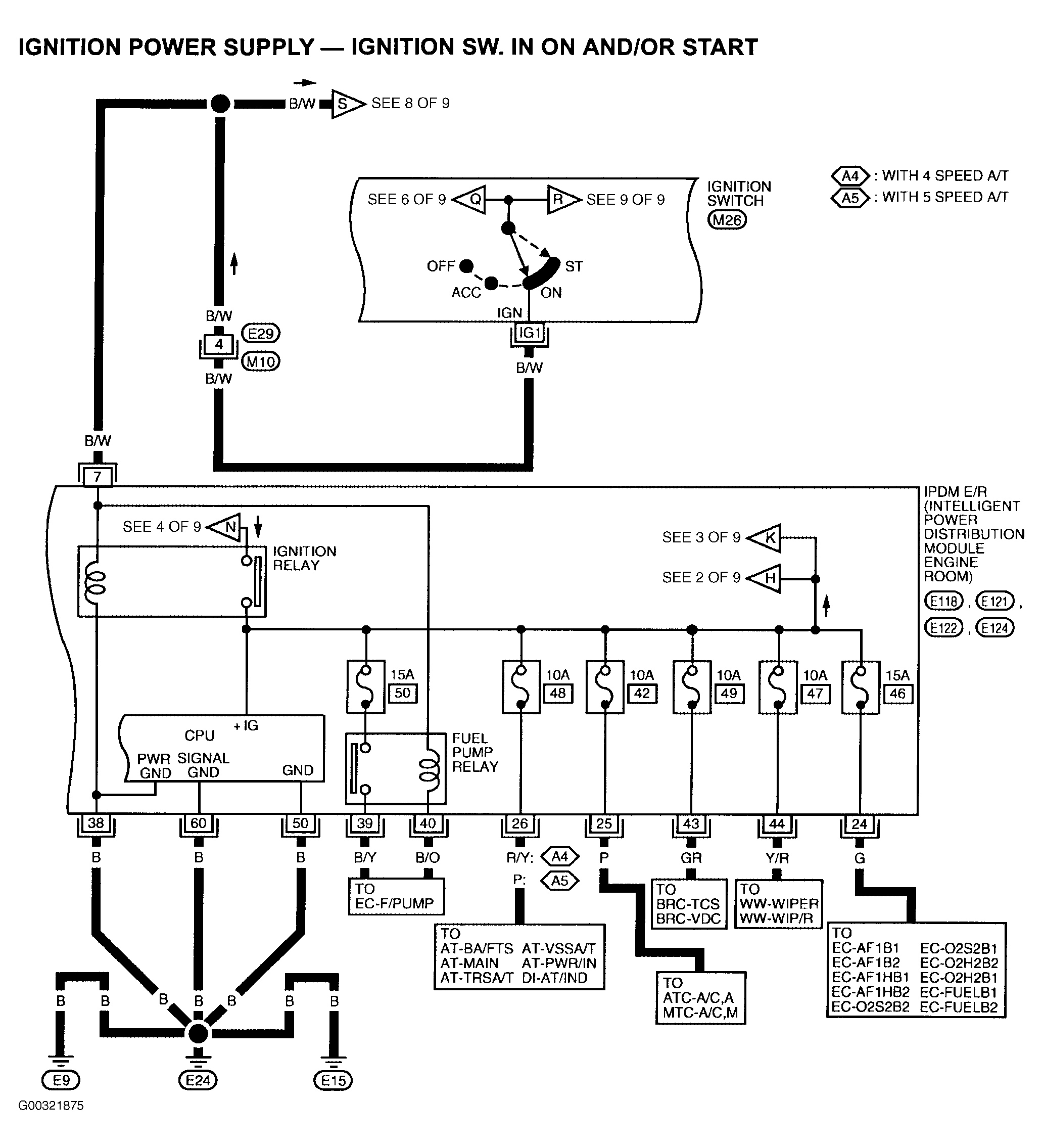

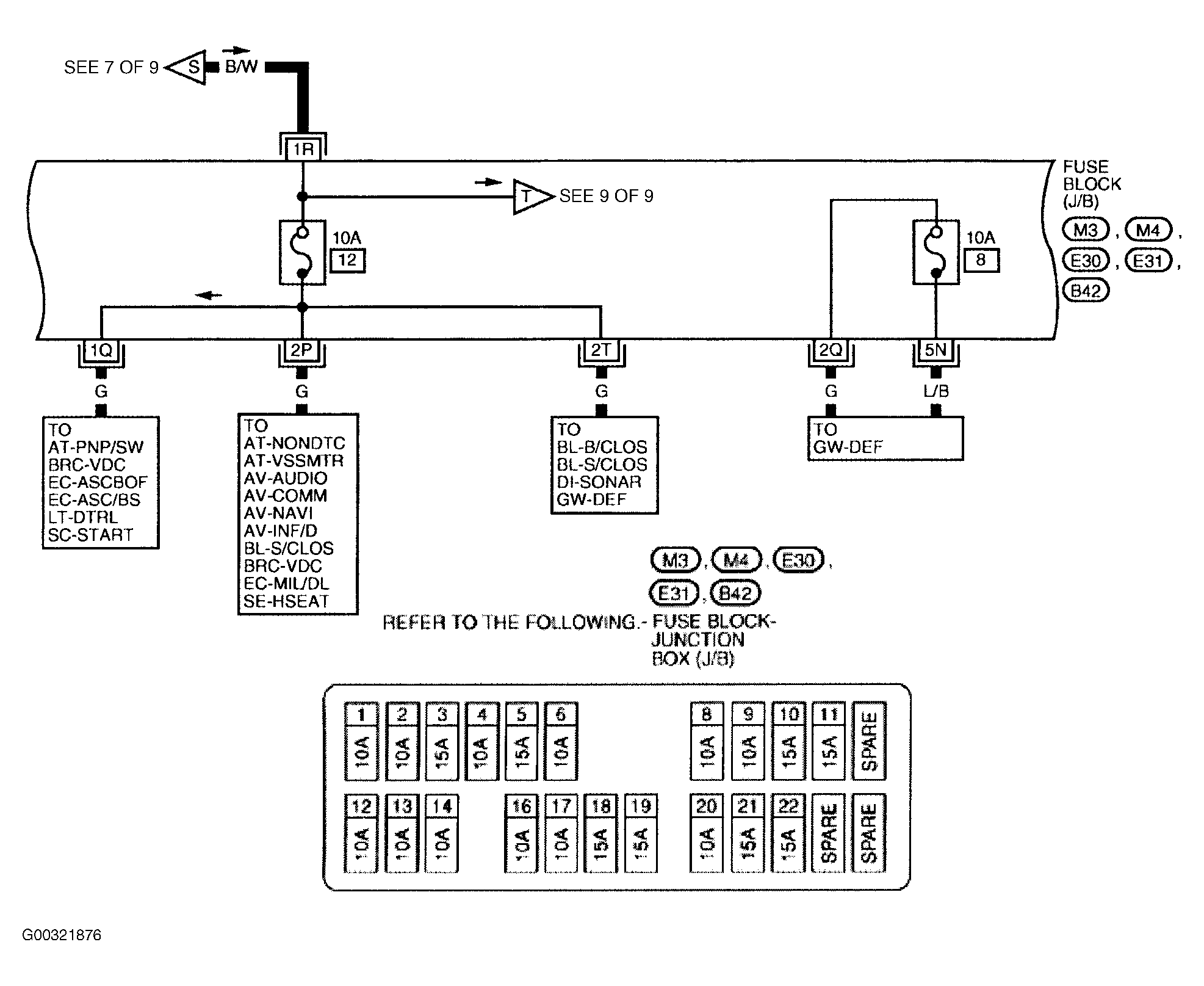

Fig 12: Identifying Circuit Protection Components (7 of 9)

G00321875

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Identifying Circuit Protection Components (8 of 9)

G00321876

Courtesy of NISSAN MOTOR CO., U.S.A.

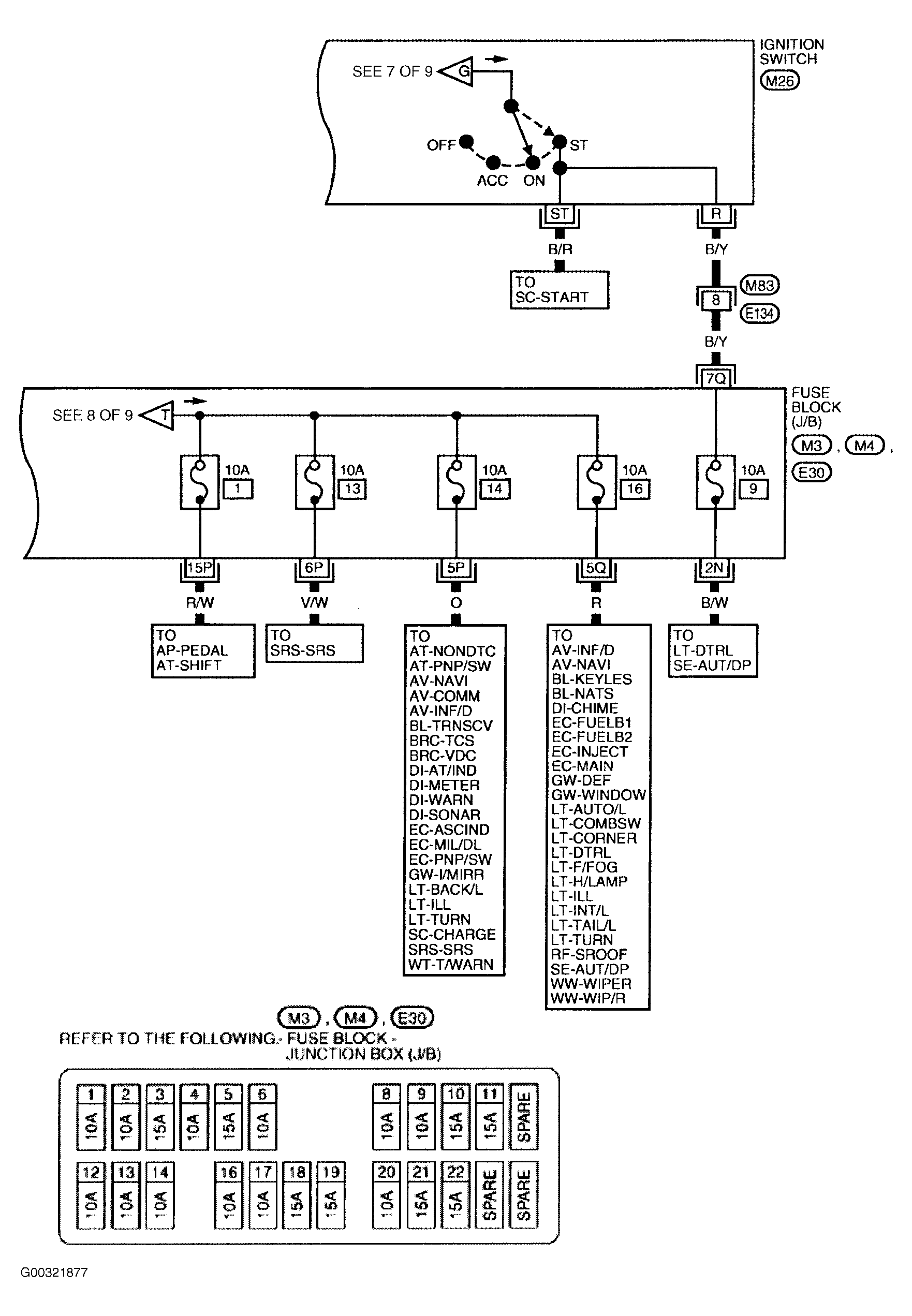

Fig 14: Identifying Circuit Protection Components (9 of 9)

G00321877

Courtesy of NISSAN MOTOR CO., U.S.A.
