Removal & Installation (4WD Models)

WARNING: This page is about a different car, the 2004 Nissan Pathfinder and 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove rear drive shaft from vehicle. See appropriate DRIVE SHAFTS & UNIVERSAL JOINTS article in DRIVELINE/AXLES.
  2. Remove transfer case. See appropriate REMOVAL & INSTALLATION article.
  3. Remove rear oil seal.
  4. Apply ATF to NEW seal and install using hammer and Seal Installer (J26082). See Fig 1 .

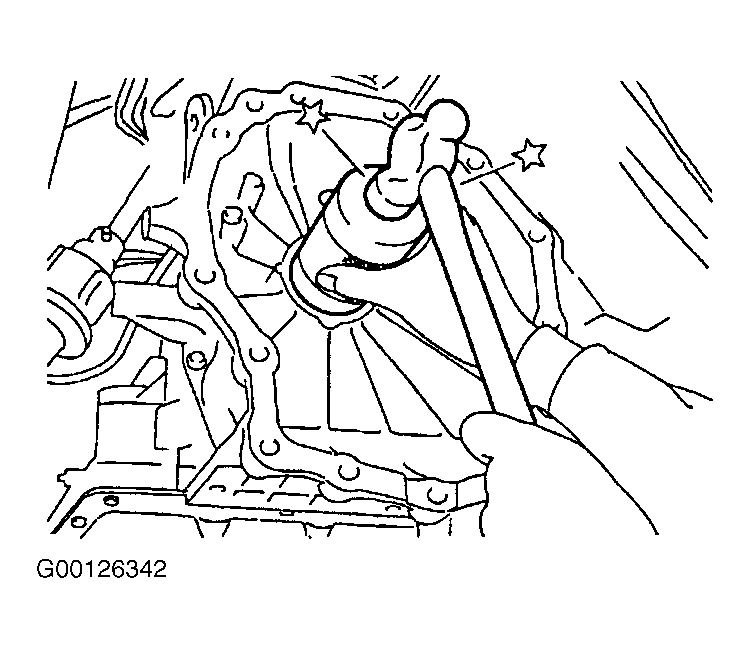

    Fig 1: Installing Rear Oil Seal (4WD)
    G00126342Courtesy of NISSAN MOTOR CO., U.S.A.
  5. To install, reverse removal procedure. Tighten bolts to specification. See TORQUE SPECIFICATIONS  .
