Removal & Installation (2WD Models)

WARNING: This page is about a different car, the 2004 Nissan Pathfinder and 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Replace rear extension assembly as a unit because it cannot be disassembled.

Remove drive shaft.
Remove exhaust mounting and mounting bracket. See Fig 1 .

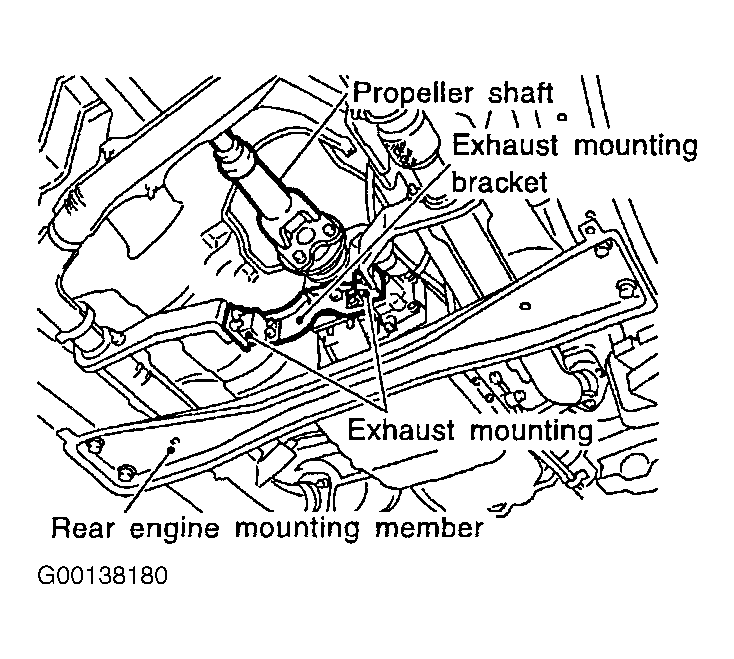

Fig 1: Removing & Installing Exhaust Brackets & Crossmember
Courtesy of NISSAN MOTOR CO., U.S.A.
Disconnect revolution and speedometer sensor harness connector.
Support transmission assembly with a jack.
Remove rear engine crossmember.
Remove rear extension assembly. Insert your hand between rear extension and transmission case. Detach rear extension assembly while holding parking gear and needle bearing by hand. See Fig 2 .

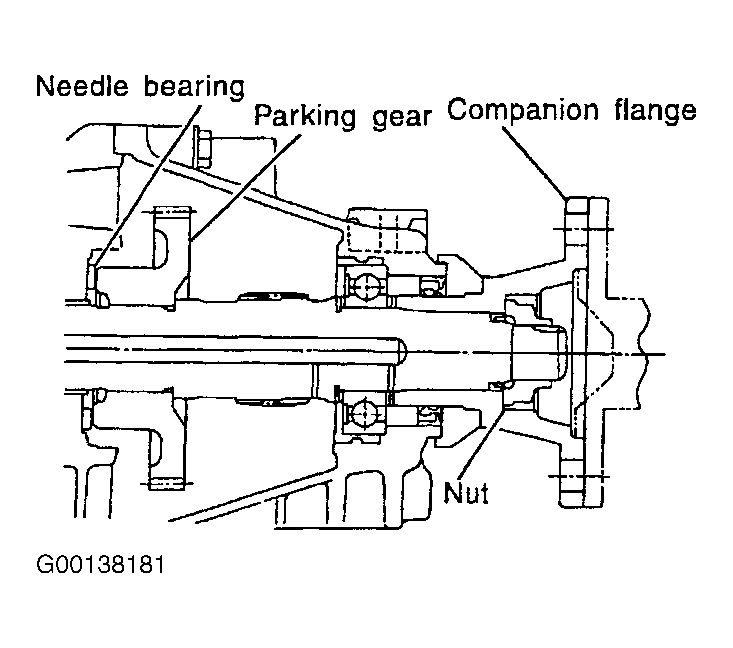

Fig 2: Identifying Rear Extension Housing Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove parking gear and needle bearing.
Reinstall any part removed. Always use new sealing parts. Tighten bolts to specification. See TORQUE SPECIFICATIONS . Check fluid level and fill as necessary.
