Draining & Refilling: Transmission

WARNING: This page is about a different car, the 2004 Nissan Pathfinder and 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Warm up transmission fluid.
Stop engine.
Remove drain plug, and allow fluid to drain. See Fig 1 .

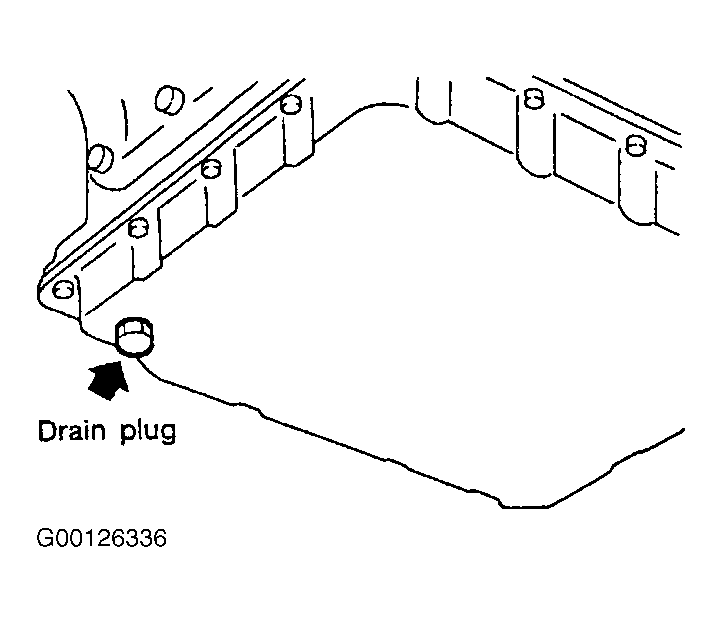

Fig 1: Locating Transmission Drain Plug
Courtesy of NISSAN MOTOR CO., U.S.A.
Reinstall drain plug. Tighten drain plug to specification. See TORQUE SPECIFICATIONS .
Remove dipstick and add (same amount as drained) fluid through fill tube. See RECOMMENDED FLUIDS
Warm transmission to normal operating temperature. Shift transmission through all gears. Move gearshift lever to "P" position. Check fluid level. See CHECKING FLUID LEVELS . Add fluid as necessary.
