Removal & Installation (RE5F22A)
WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
- Remove battery and bracket.

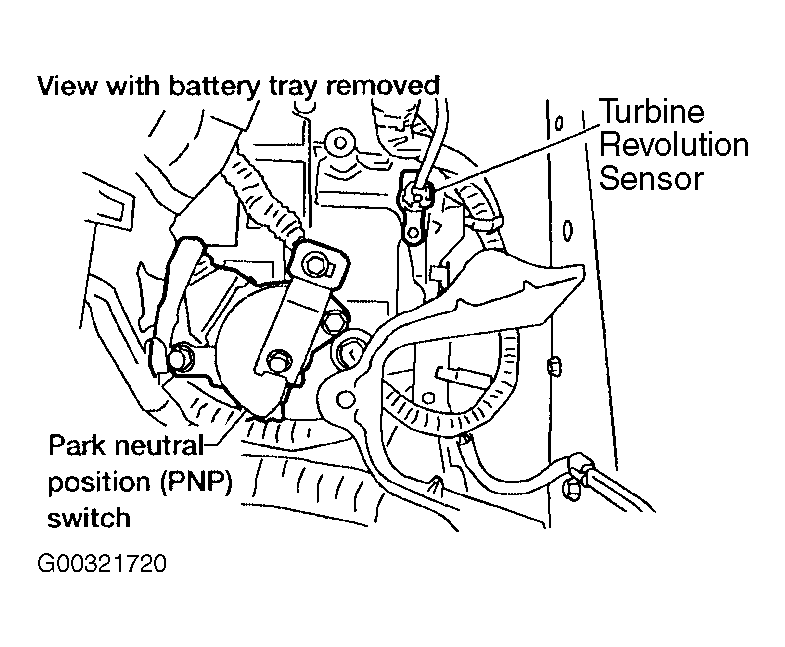

- Disconnect turbine revolution sensor harness. See Fig 1 .
- Remove bolt and turbine revolution sensor from transaxle.
- To install, reverse removal procedure. Always use NEW seal bolt when installing.
