Removal & Installation (RE5F22A)

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove intake air duct.
  2. Disconnect revolution sensor harness connector. See Fig 1 .
  3. Remove bolt and revolution sensor.
  4. To install, reverse removal procedure. Always use new seal bolt when installing.

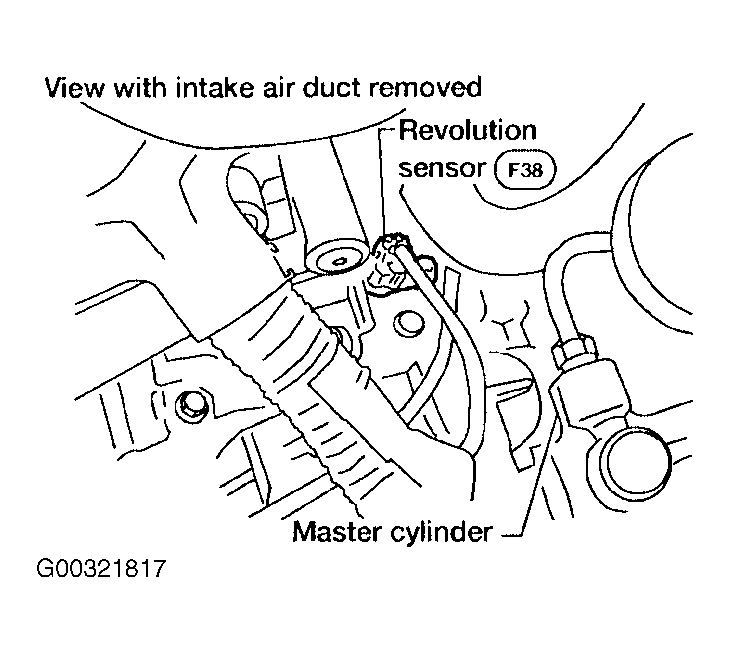

Fig 1: Locating Revolution Sensor
G00321817Courtesy of NISSAN MOTOR CO., U.S.A.
