Removal & Installation (RE4F04B)

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect revolution sensor harness connector. See Fig 1 .
Remove bolt and revolution sensor.
To install, reverse removal procedure. Install NEW "O" ring on revolution sensor. Tighten bolt to specification. See TORQUE SPECIFICATIONS .

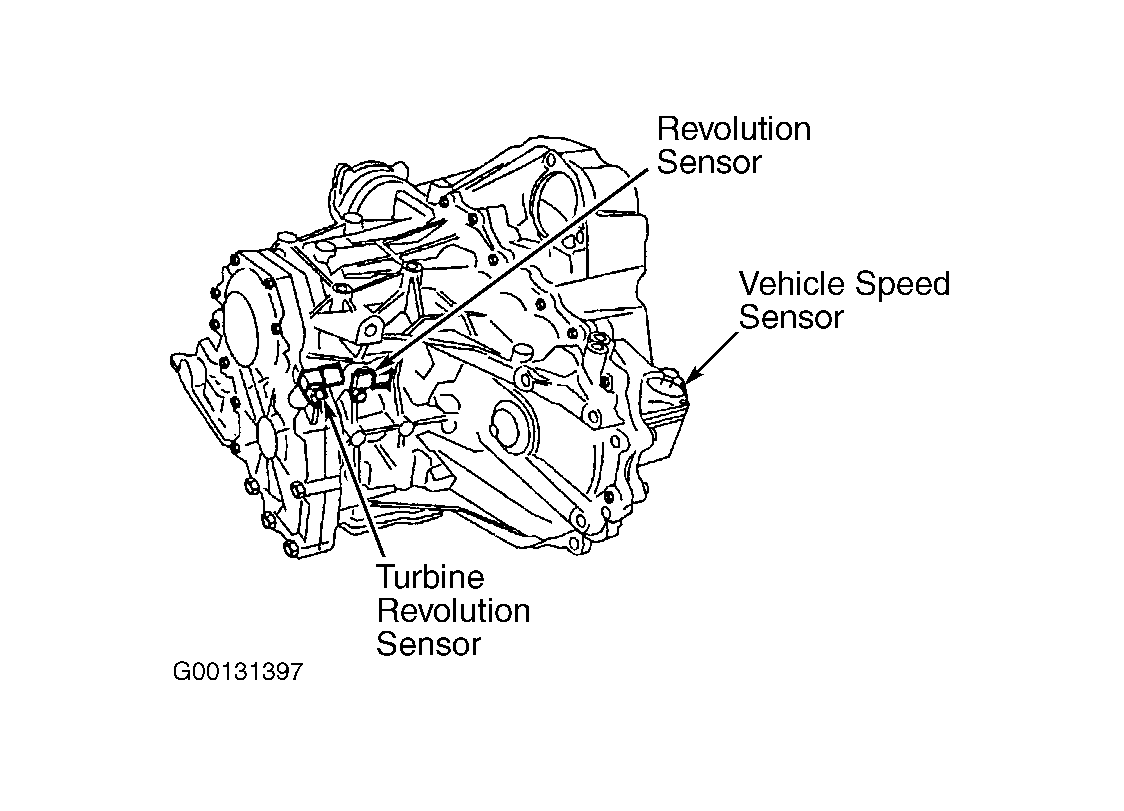

Fig 1: Locating Turbine Revolution Sensor, Revolution Sensor & Vehicle Speed Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.
