Removal & Installation (RE4F04B)

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Remove axle shaft assemblies. See AXLE SHAFTS article in DRIVELINE/AXLES.
Remove oil seals.
Apply transmission fluid to NEW oil seals. Install differential side oil seals. Ensure dimensions "A" is within specification. See Fig 1 . Dimension "A" should be plus or minus .020 in. (.5 mm).
Reinstall axle shaft assemblies. Add fluid as necessary.

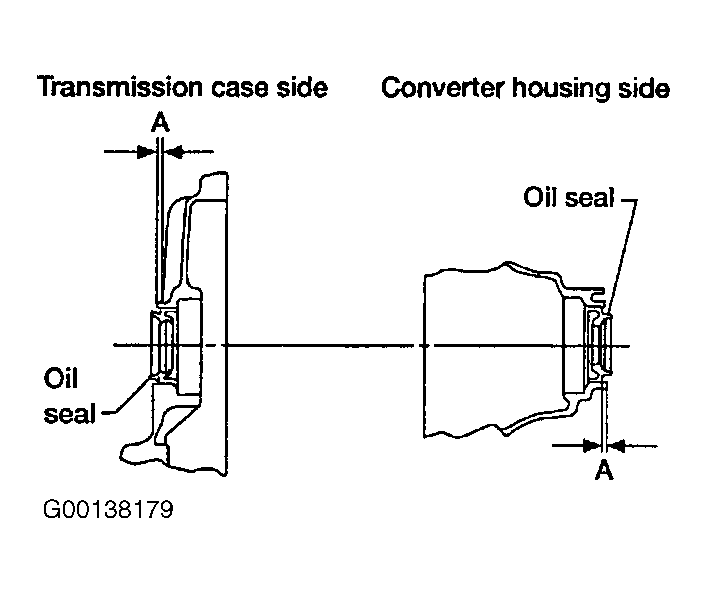

Fig 1: Installing Differential Side Oil Seals

Courtesy of NISSAN MOTOR CO., U.S.A.
