Removal & Installation (RE4F04B)
WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
- Remove shift cable from manual shaft.
- Set manual shaft in Neutral.
- Loosen PNP switch bolts.

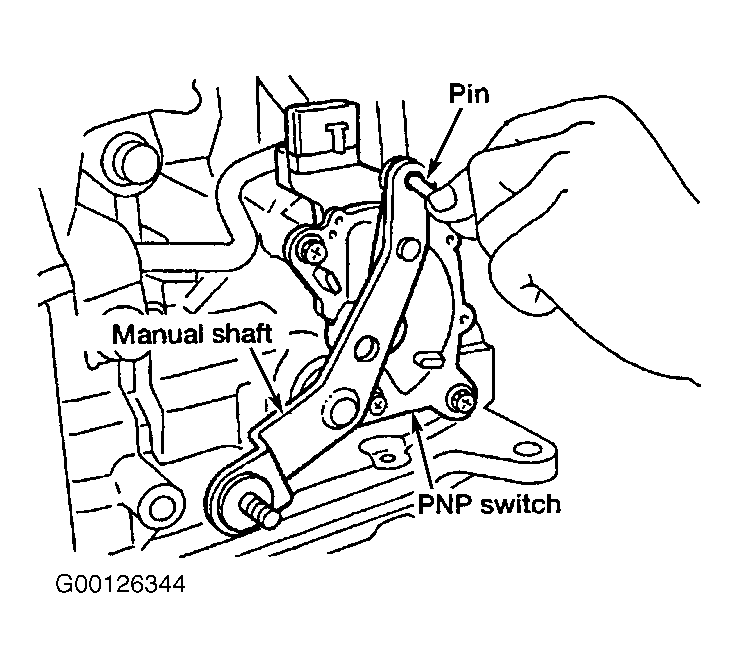

- Insert .16 in. (4-mm) pin into adjustment holes in both PNP switch and manual shaft assembly as near vertical as possible. See Fig 1 .
- Reinstall any part removed.
- Check continuity of PNP switch. See DIAGNOSIS article.
