Trouble Diagnoses With Battery/Starting/Charging System Tester
WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
To ensure a complete and thorough diagnosis, the battery, starter and generator test segments must be done as a set from start to finish.
- Turn off all loads on the vehicle electrical system.

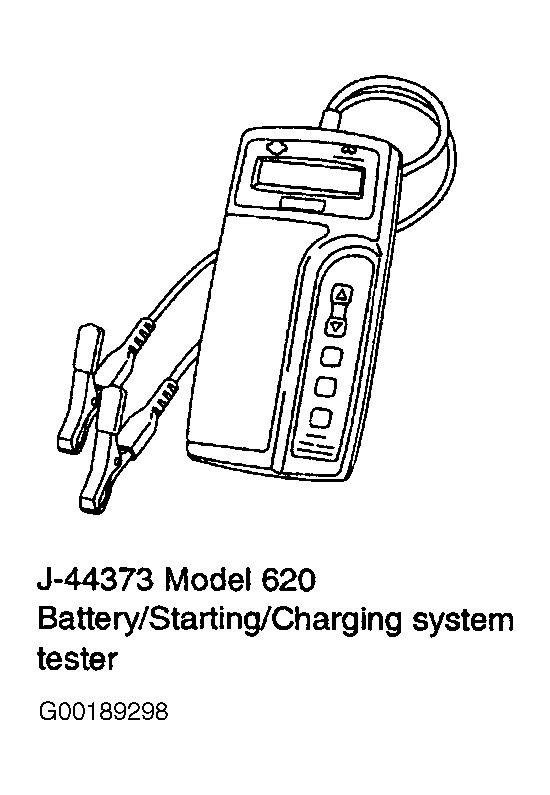

- Perform battery test with Battery/Starting/Charging system tester. See Fig 1.
- Press "ENTER" to begin the starting system test.
- Start the engine.
- Diagnosis result is displayed on the tester. See DIAGNOSTIC RESULT ITEM .
NOTE:
If the starter performs normally but the engine does not start, see TROUBLE SHOOTING - NO CODES article. For intermittent "NO CRANK" or "NO STARTER OPERATION" incidents, see DIAGNOSTIC PROCEDURE 2, CHECK "S" TERMINAL CIRCUIT .
