Removal & Installation 4-Speed A/T Model

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.
  2. Remove the air cleaner cover and the air cleaner to intake manifold collector duct.
  3. Remove the harness protector from the starter engine room harness.
  4. Disconnect the starter harness connectors.
  5. Remove the two starter mounting bolts. See Fig 1.
  6. Remove the starter.
  7. For installation, reverse removal. Tighten all bolts/nuts to specification. See TORQUE SPECIFICATIONS .

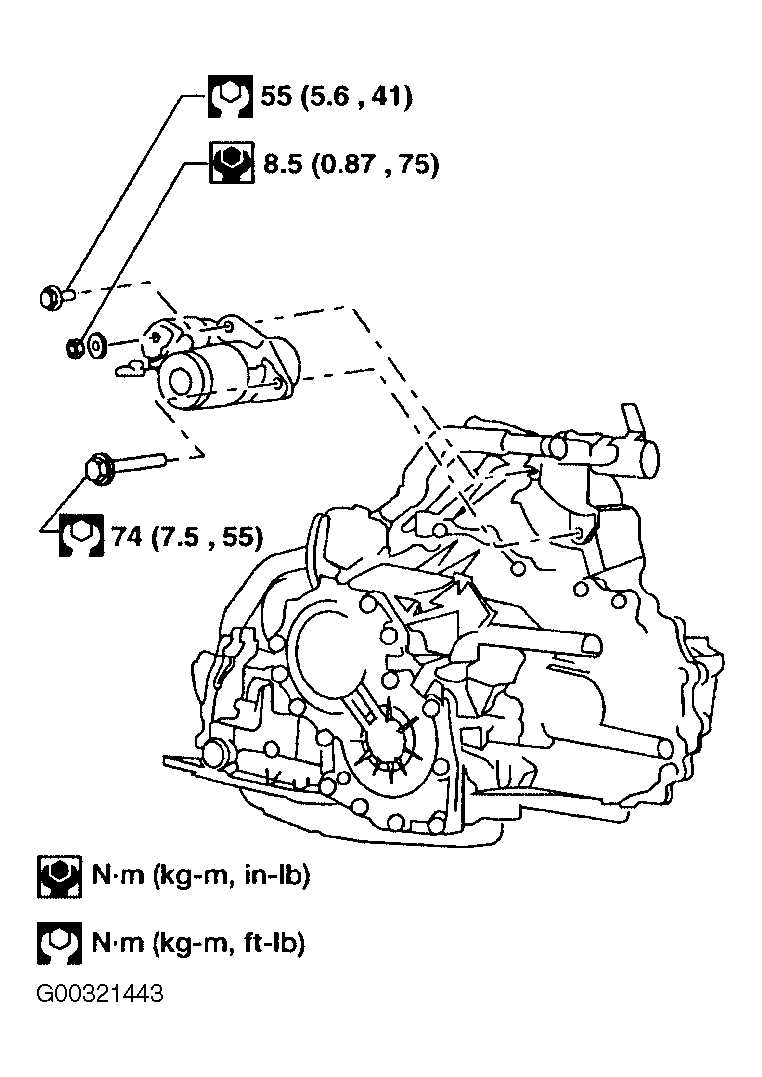

Fig 1: Starter Motor (4-Speed A/T Model) With Torque Specifications
G00321443Courtesy of NISSAN MOTOR CO., U.S.A.
