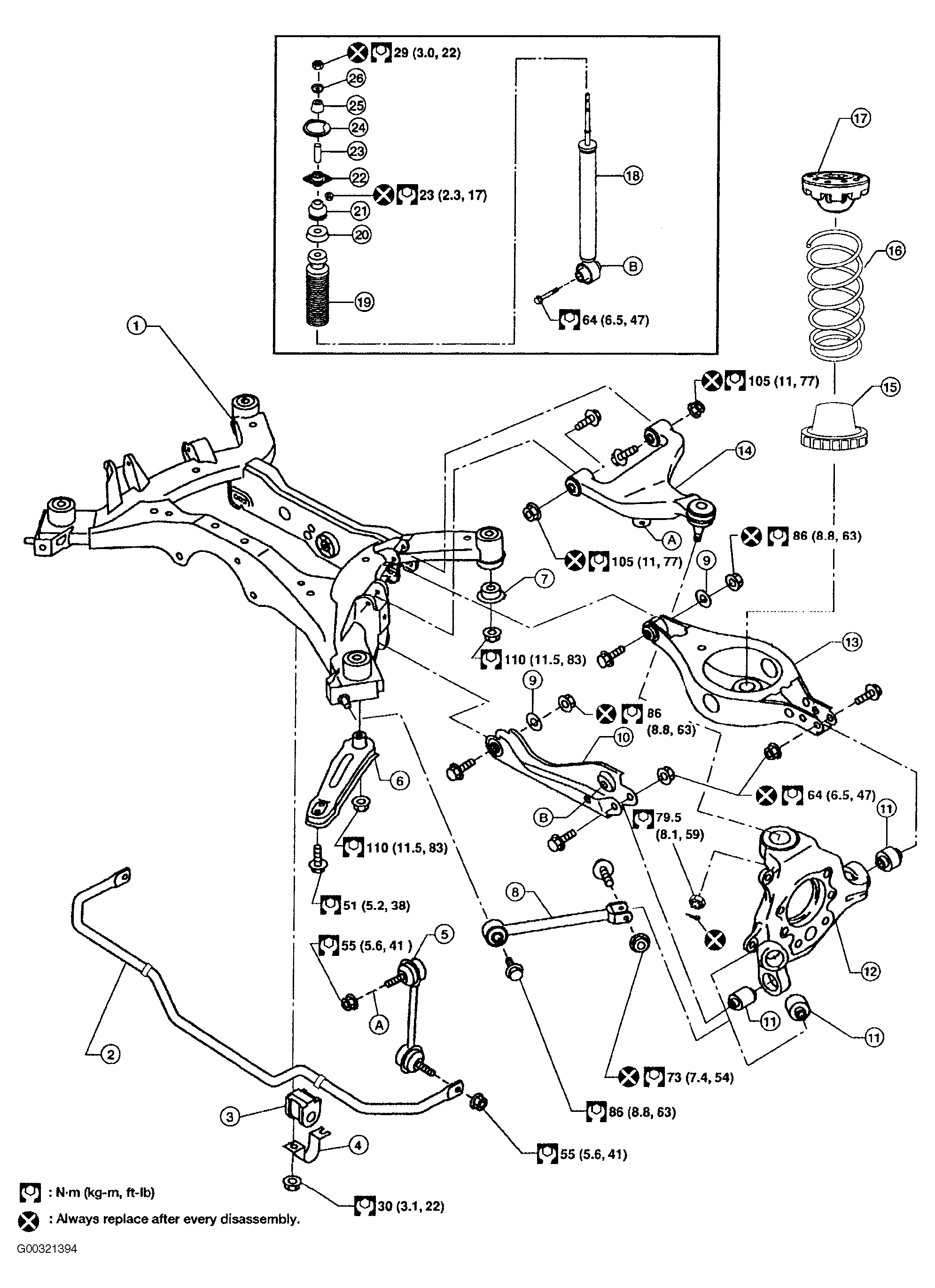

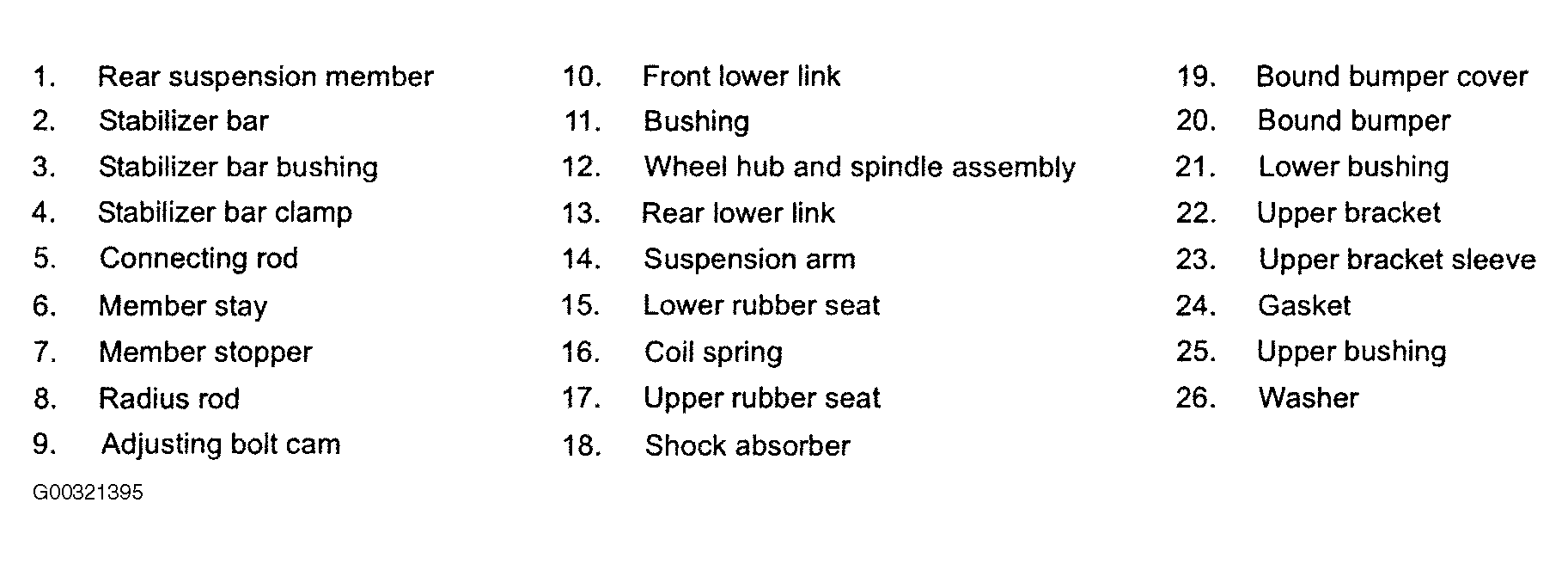

Rear Suspension Member: Removal
WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support vehicle. Remove wheel. Remove brake caliper assemblies and rotors. Disconnect ABS sensor connectors, and disconnect the ABS sensor harness from the rear suspension member.
- Remove the center exhaust tube with mufflers.
- Disconnect the parking brake cable assemblies from the front cable.
- Remove the shock absorber upper end nuts.
- Remove the left and right side member stay bolts.
- Use a jack to support the rear suspension member.
- Remove the rear suspension member mounting nuts.
- Slowly lower jack, remove rear suspension assembly.
