Section 285 (Cooling System Specifications & Drive Belt Routing)
>>
Drive Belt Routing
>>
Drive Belt Routing (4-Cylinder)
Drive Belt Routing (4-Cylinder)
WARNING:
This page is about a different car, the 2004 Nissan Altima, 2003 Nissan Altima, and 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

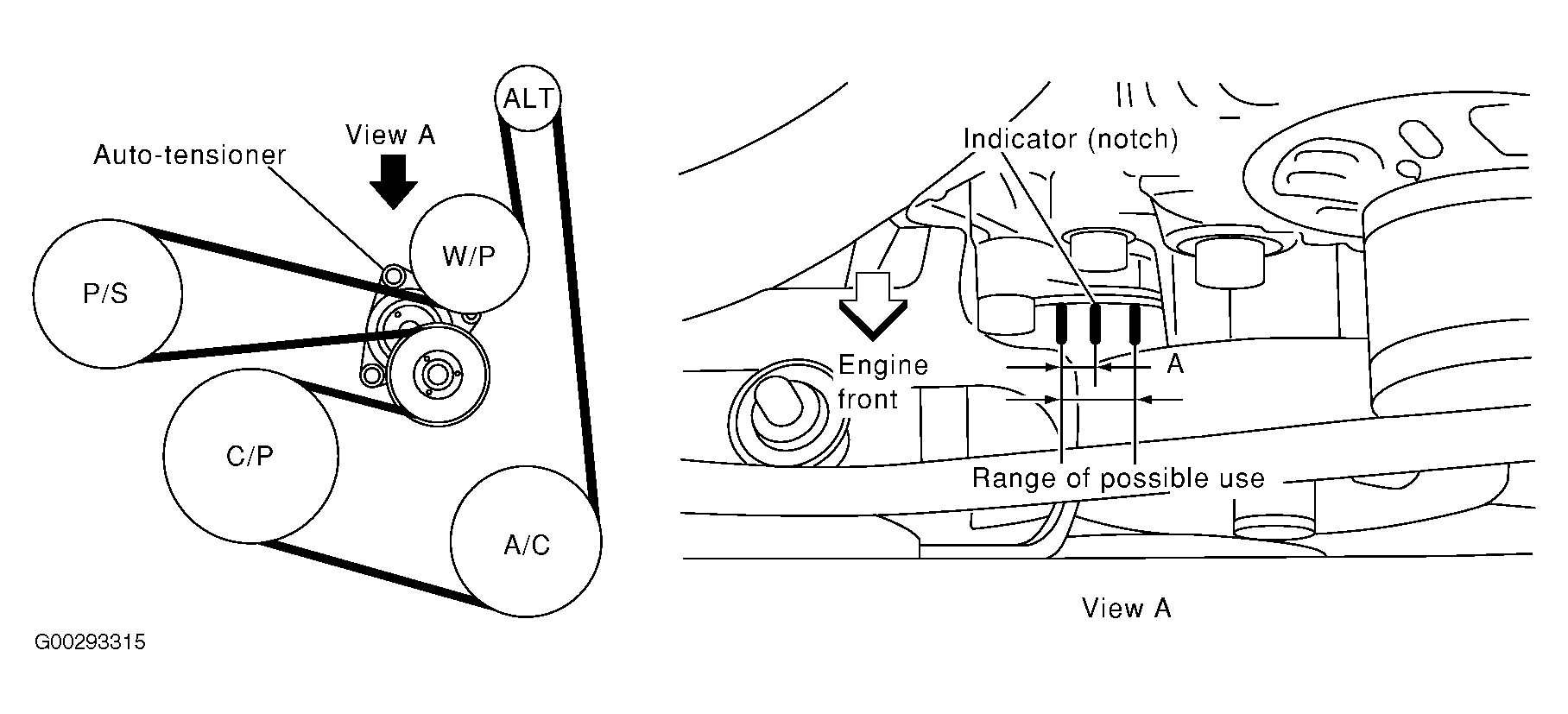

Fig 1: Identifying Drive Belt Routing (4-Cylinder)
Courtesy of NISSAN MOTOR CO., U.S.A.
