Diagnostic Procedure 2, Check "B" Terminal Circuit

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For trouble diagnoses with Battery/Starting/Charging system tester, see TROUBLE DIAGNOSES WITH BATTERY/STARTING/CHARGING SYSTEM TESTER .

NOTE: For connector symbol explanation, see HOW TO READ CONNECTOR SYMBOLS .

For diagnostic procedure 2, check "B" terminal circuit, see Fig 1 .

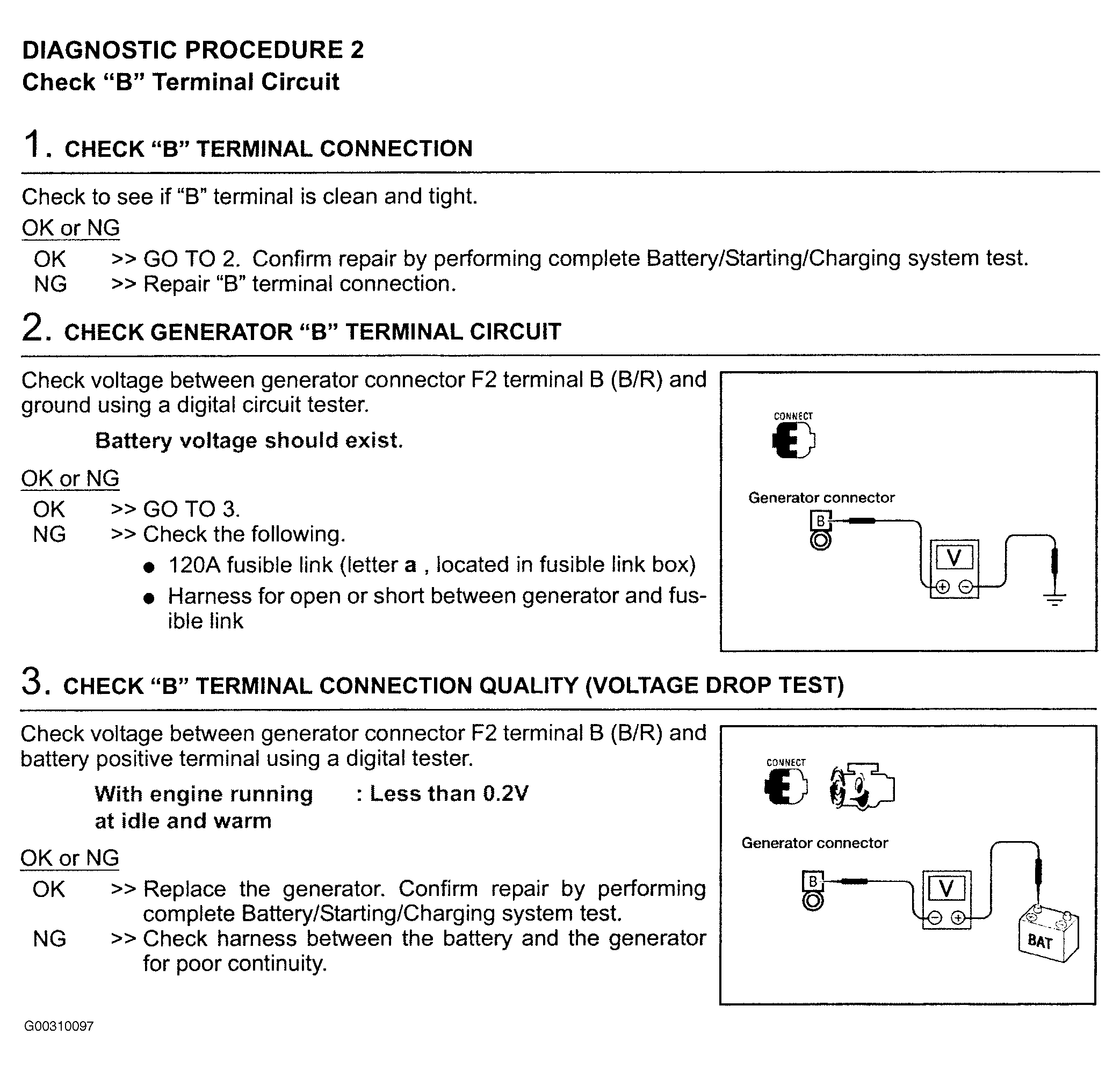

Fig 1: Identifying Diagnostic Procedure 2, Check "B" Terminal Circuit

Courtesy of NISSAN MOTOR CO., U.S.A.
