Diagnostic Procedure 3, Check "S" Terminal Circuit

WARNING: This page is about a different car, the 2004 Nissan Pathfinder, 2003 Nissan Pathfinder, and 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For trouble diagnoses with Battery/Starting/Charging system tester, see TROUBLE DIAGNOSES WITH BATTERY/STARTING/CHARGING SYSTEM TESTER .

NOTE: For connector symbol explanation, see HOW TO READ CONNECTOR SYMBOLS .

For diagnostic procedure 3, check "S" terminal circuit, see Fig 1.

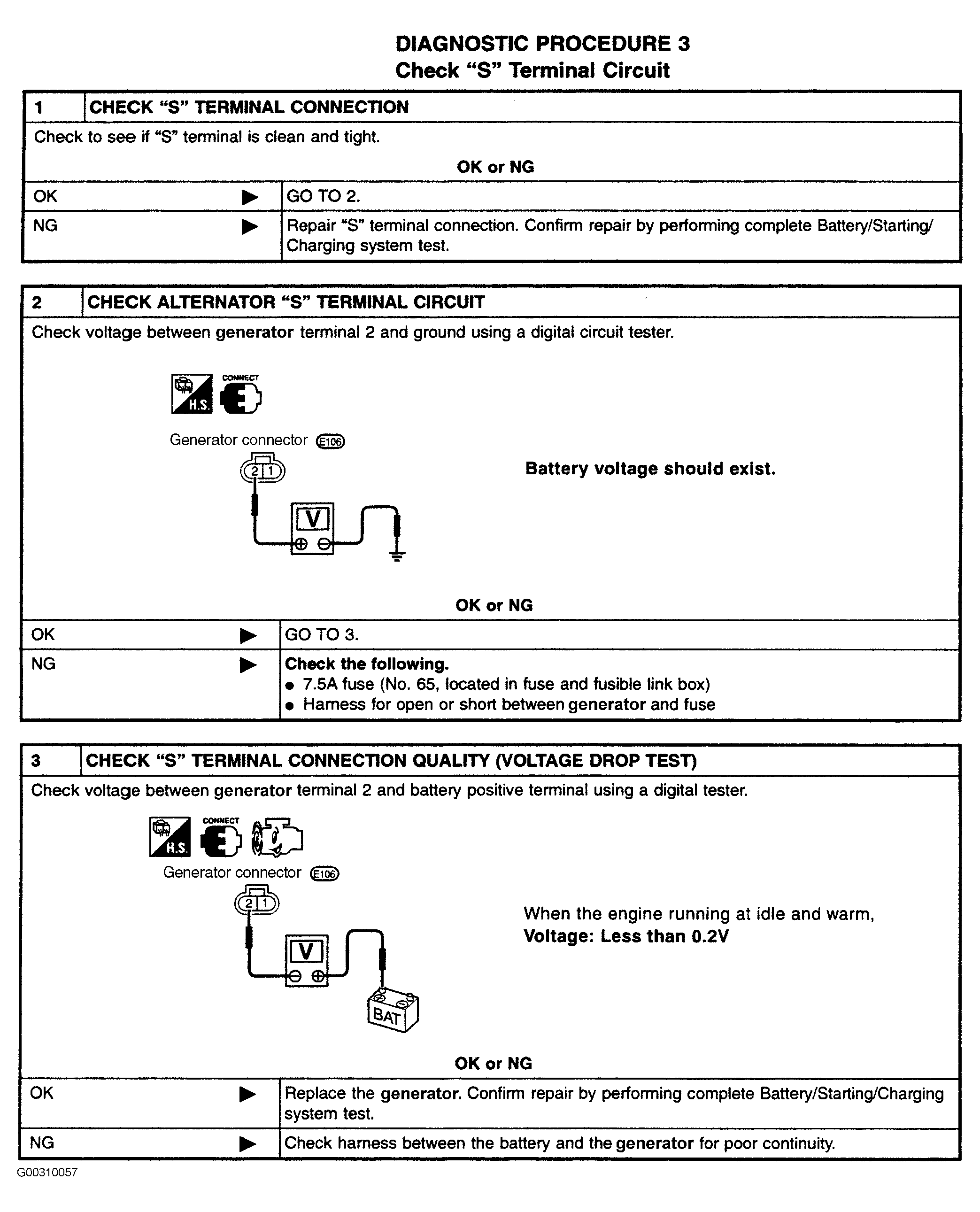

Fig 1: Identifying Diagnostic Procedure 3, Check "S" Terminal Circuit

Courtesy of NISSAN MOTOR CO., U.S.A.
