Reassembly (Inboard Side)

WARNING: This page is about a different car, the 2004 Nissan Pathfinder, 2003 Nissan Pathfinder, and 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Mount axle shaft in vise.
  2. Wrap tape around shaft splines.
  3. Install small clamp, boot and slide joint housing onto shaft.
  4. Install spider assembly, with chamfer facing shaft, aligning marks made during disassembly.
  5. Install NEW snap ring.
  6. Pack inboard joint with 3.35-3.70 ozs. (95-105 g) of grease.
  7. Install joint assembly, aligning marks made during disassembly.
  8. Position boot to correct length. Inboard boot length should be 3.74-3.82 in. (95.0-97.0 mm). See Fig 1 .
  9. Lock boot clamps in place using hammer and punch. See Fig 2 .
    Fig 1: Setting Inboard Side Boot Length
    G00310004Courtesy of NISSAN MOTOR CO., U.S.A.

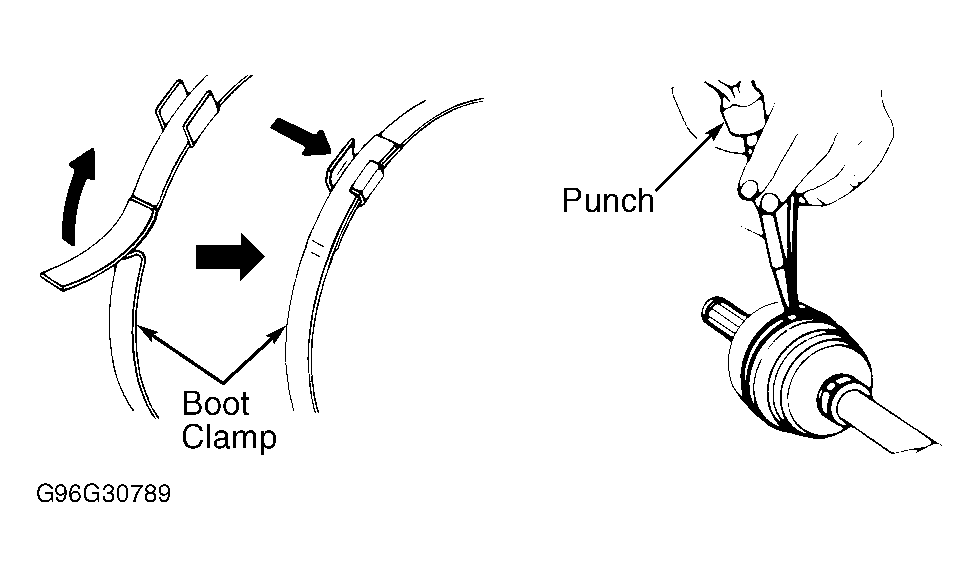

    Fig 2: Installing Boot Clamps
    G96G30789Courtesy of NISSAN MOTOR CO., U.S.A.
