Disassembly (Inboard Side)

WARNING: This page is about a different car, the 2004 Nissan Pathfinder, 2003 Nissan Pathfinder, and 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Mount axle shaft in vise.
  2. Using a hammer, tap lightly around slide joint housing to remove plug seal. See Fig 1 .
  3. Remove boot clamps. See Fig 2 .
  4. Mark slide joint housing in relation to axle shaft for reassembly reference.
  5. Remove snap ring.
  6. Remove spider assembly from axle shaft using press.
  7. Wrap splines of axle shaft with protective tape to protect joint boot.
  8. Remove inboard side boot from axle shaft.

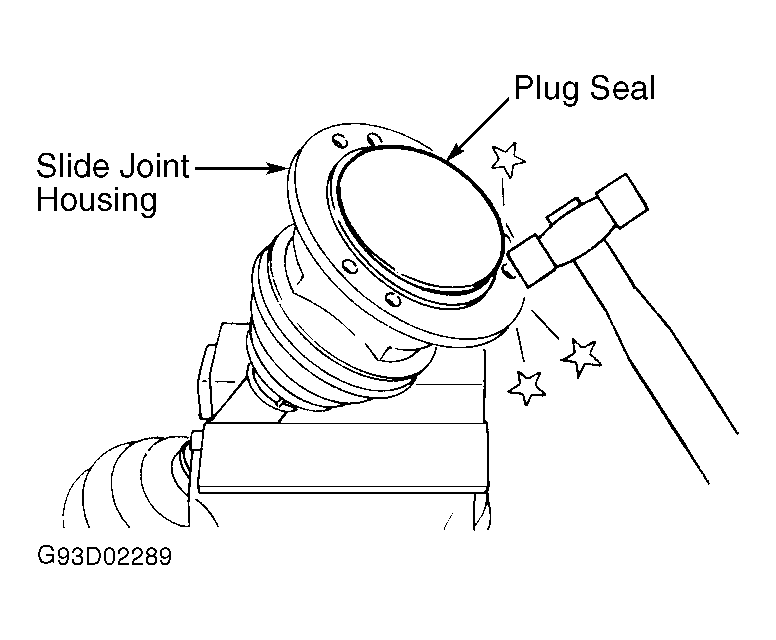

Fig 1: Removing Plug Seal (Inboard Side)
G93D02289Courtesy of NISSAN MOTOR CO., U.S.A.

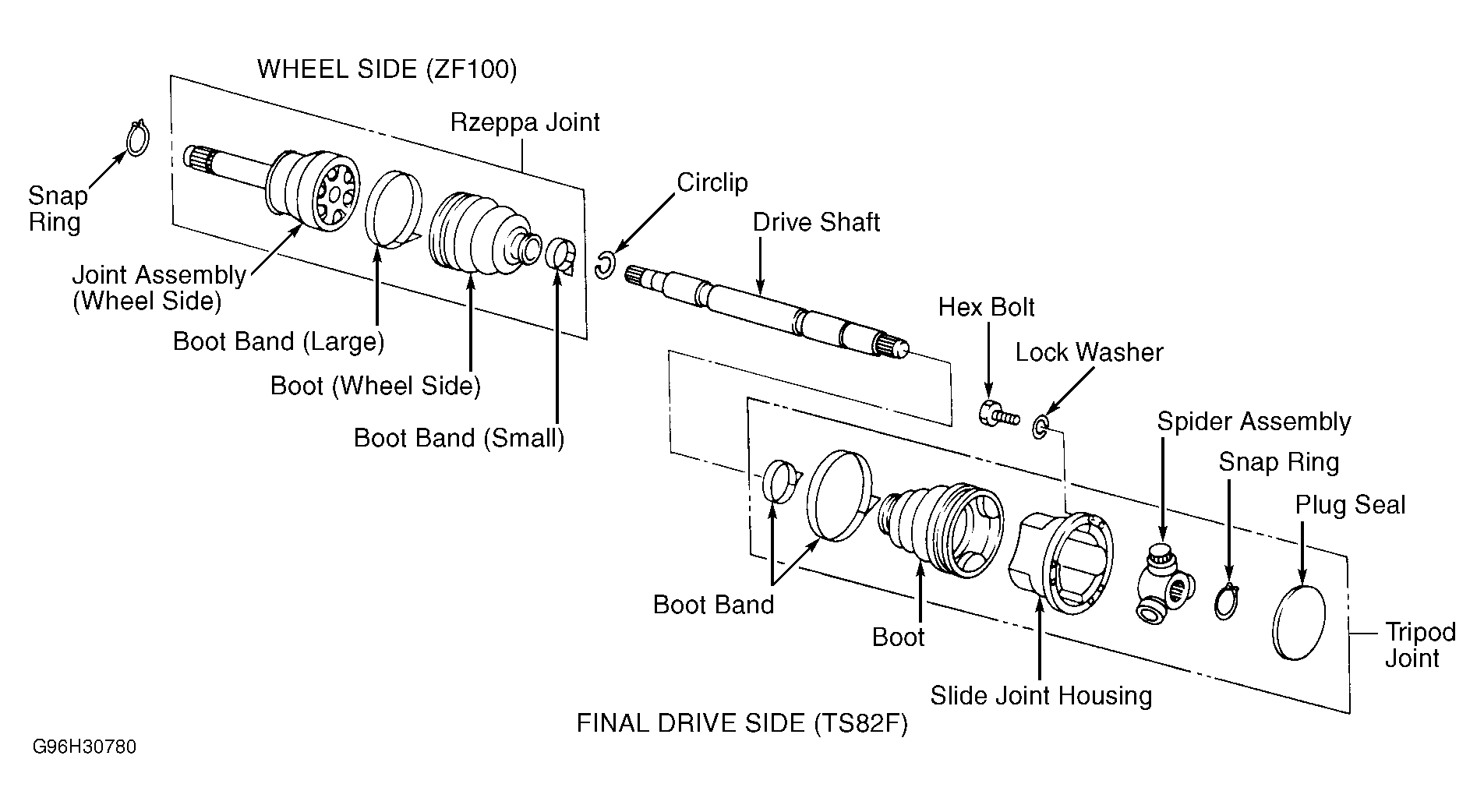

Fig 2: Exploded View Of Axle Shaft
G96H30780Courtesy of NISSAN MOTOR CO., U.S.A.
