Disassembly (Outer Joint)

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place axle shaft into a soft-jaw vise, with outer joint facing up.
  2. Remove boot clamps and slide boot away from joints
  3. Using sliding hammer, or suitable tool, screw in tool 1.18 in. (30 mm), or longer, into threaded part of joint sub-assembly. Separate joint from axle shaft. See Fig 1 .

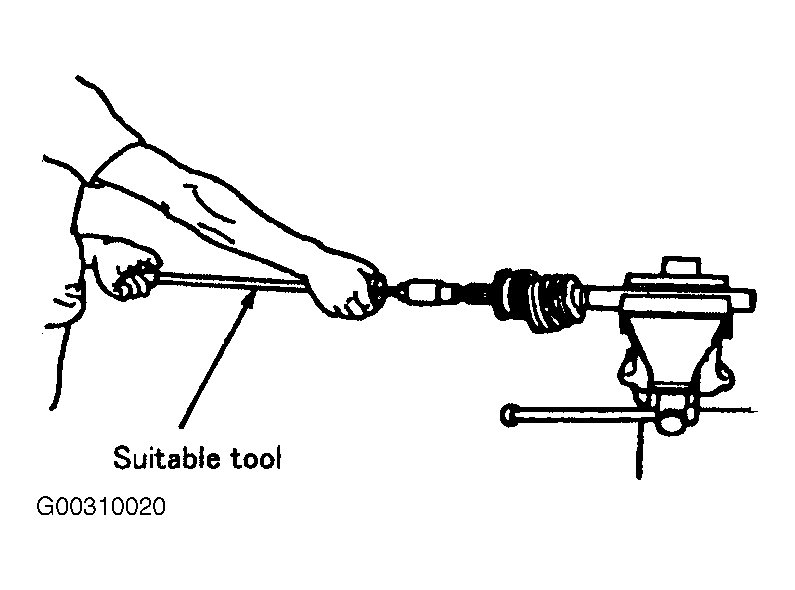

    Fig 1: Removing Outer Joint Assembly
    G00310020Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove boot.
  5. Remove circlip from left axle shaft.
  6. While rotating ball cage, remove old grease from joint.
