Dynamic Damper
WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
Install dynamic damper and new clamps to specific length. See DYNAMIC DAMPER MEASUREMENT SPECIFICATION table.
NOTE:

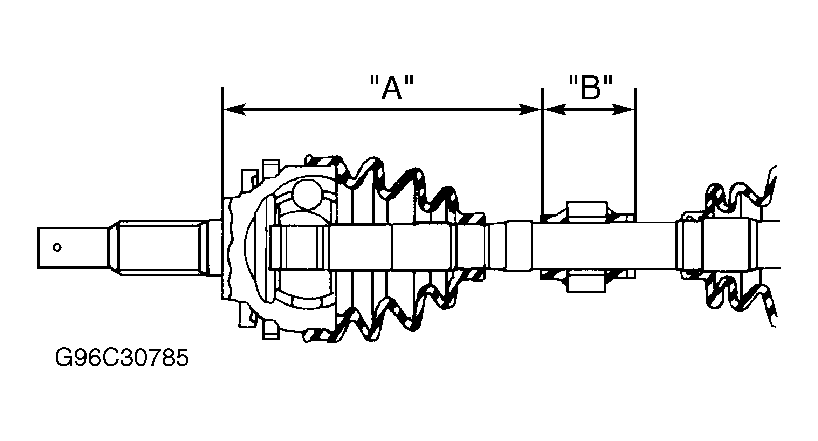

Use illustration for measurement locations. See Fig 1
.
DYNAMIC DAMPER MEASUREMENT SPECIFICATION
| Application | Dimension "A" - In. (mm) | Dimension "B" - In. (mm) | |
|---|---|---|---|
| 1.8L | |||
| Right Side | 16.54-16.93 (420-430) | 2.54 (64) | |
| Left Side | 6.89-7.28 (175-185) | 2.76 (70) | |
| 2.5L | |||
| Right Side | 7.87-8.11 (200-206) | 2.68 (68) | |
| Left Side | 6.81-7.05 (173-179) | 1.97 (50) | |
