Disassembly (Support Bearing)

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Using screwdriver, remove support bearing dust shield. See Fig 1 .

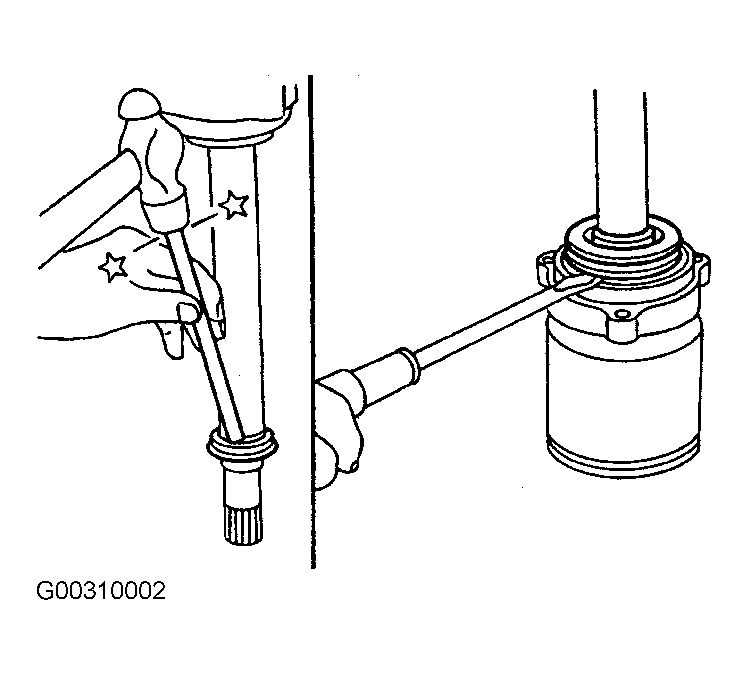

Fig 1: Removing & Installing Dust Shield
Courtesy of NISSAN MOTOR CO., U.S.A.
Using hammer and screwdriver, remove wheel side dust shield on axle shaft. See Fig 1 .
Remove snap ring.
Using press, remove support bearing off axle shaft.
Remove snap ring and dust shield from bearing retainer.
Using hammer and appropriate driver, separate support bearing from bearing retainer.
