Rear Wheel Hub & Bearing Assembly

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Check wheel bearing axial end play. Specification should be less than .004 in. (.01 mm). For component view and removal procedure, see Fig 1 . For installation, reverse removal procedure.

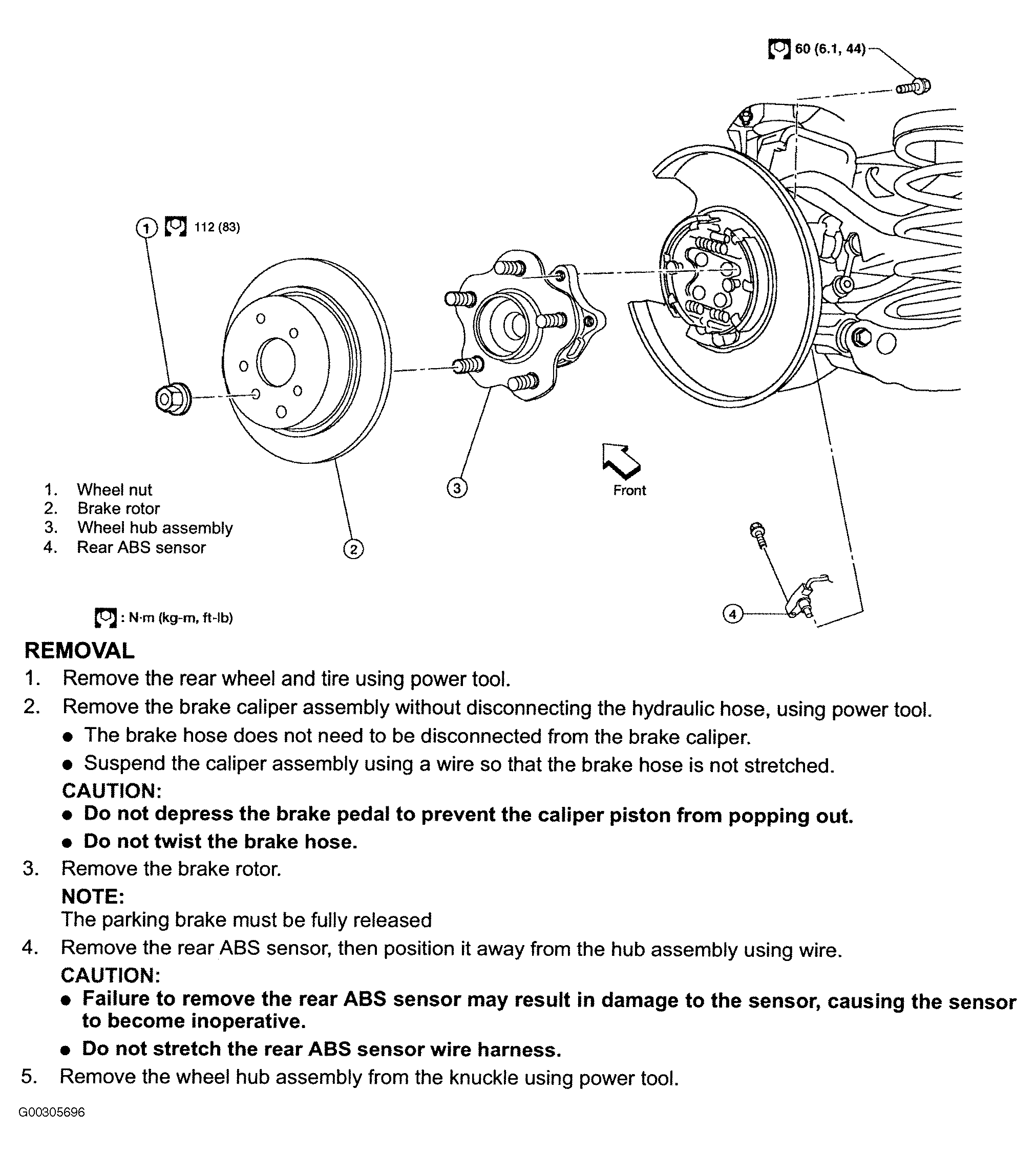

Fig 1: Rear Wheel Hub & Bearing Removal Procedure
G00305696Courtesy of NISSAN MOTOR CO., U.S.A.
