WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
Check wheel bearing axial end play. Specification should be less than .003 in. (.07 mm). For component view and removal procedure, see Fig 1
-Fig 4
. For installation, reverse removal procedure.

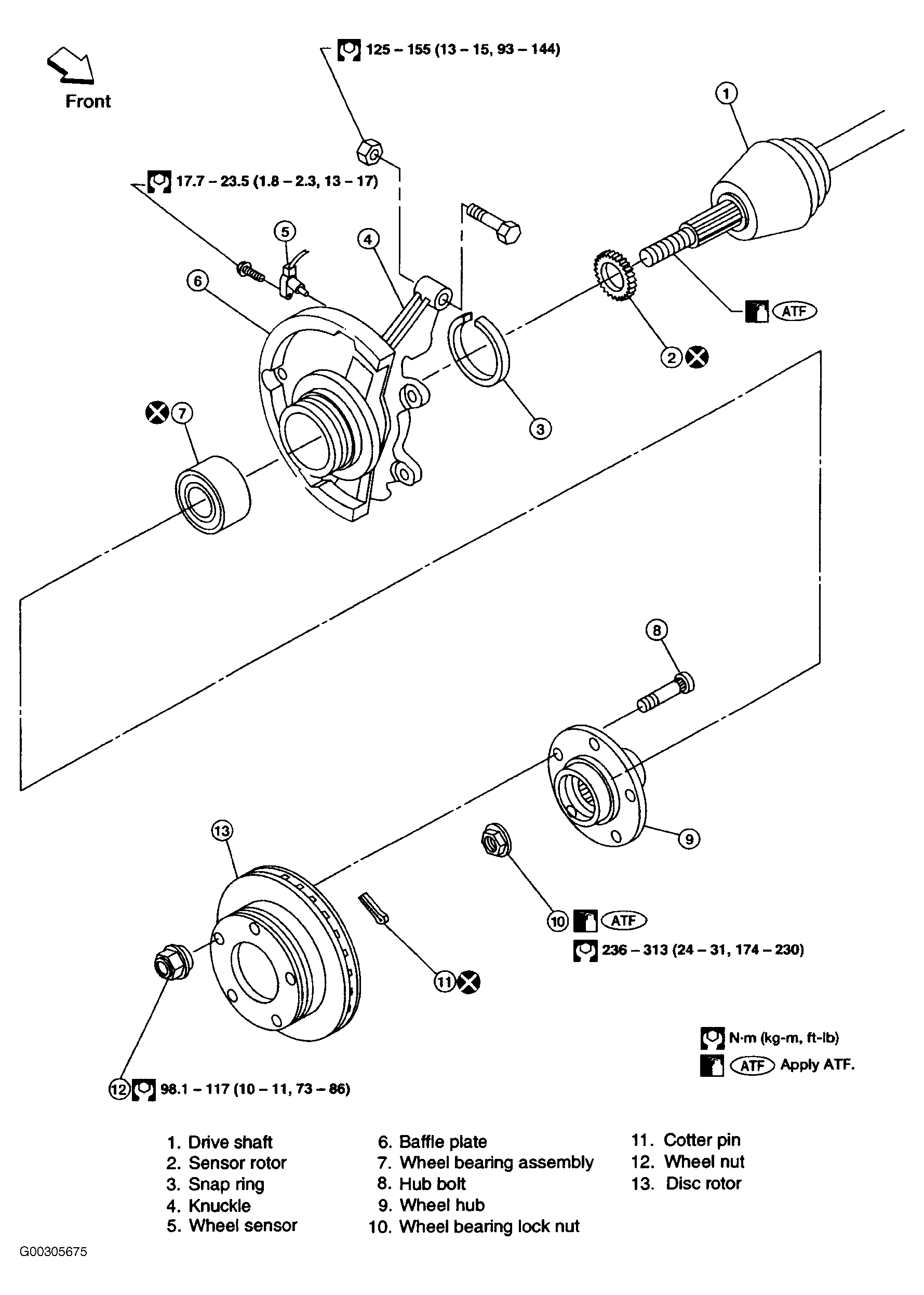

Fig 1: Component View Of Front Wheel Hub & Bearing Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

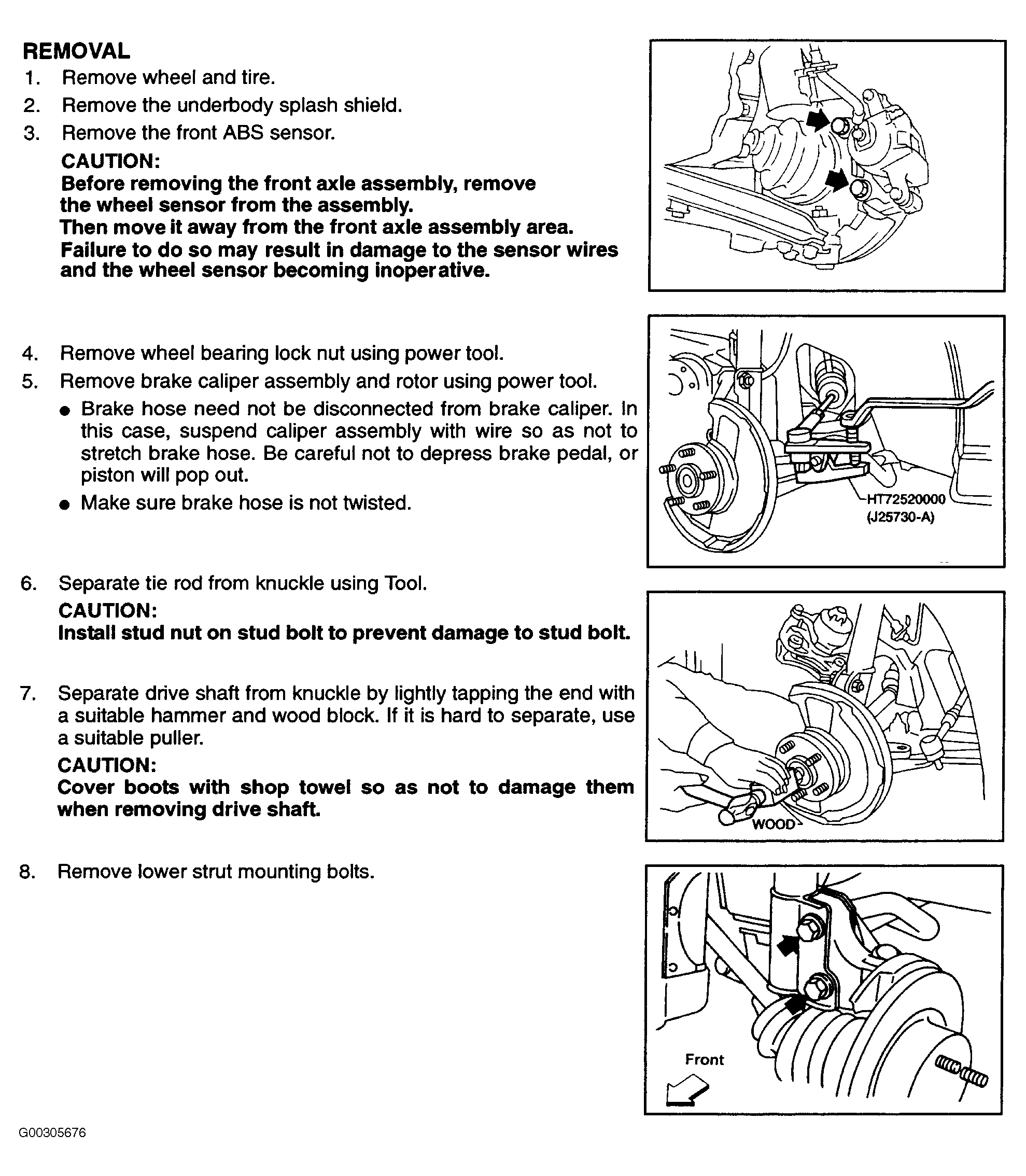

Fig 2: Front Wheel Hub & Bearing Replacement Procedure (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

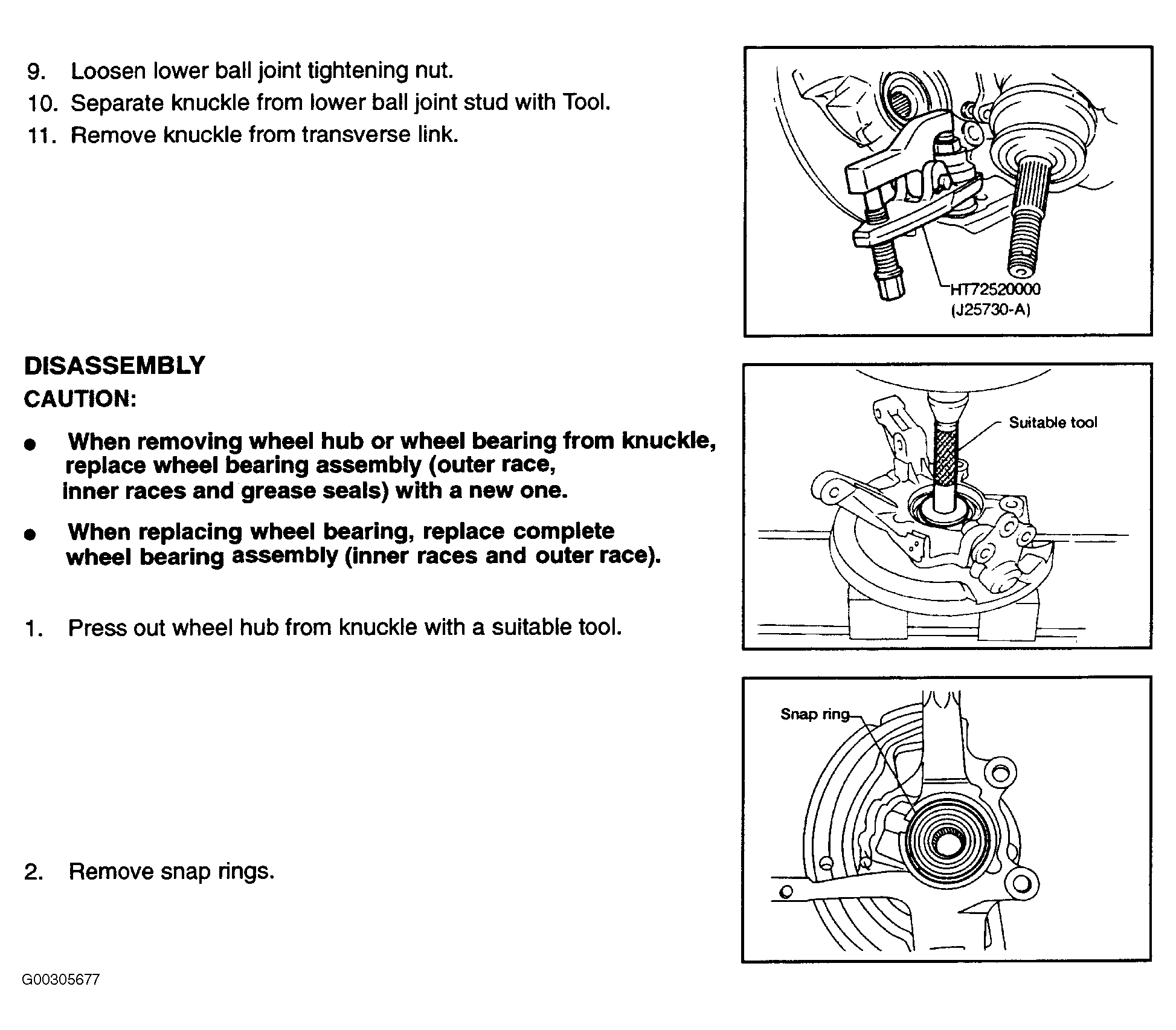

Fig 3: Front Wheel Hub & Bearing Replacement Procedure (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

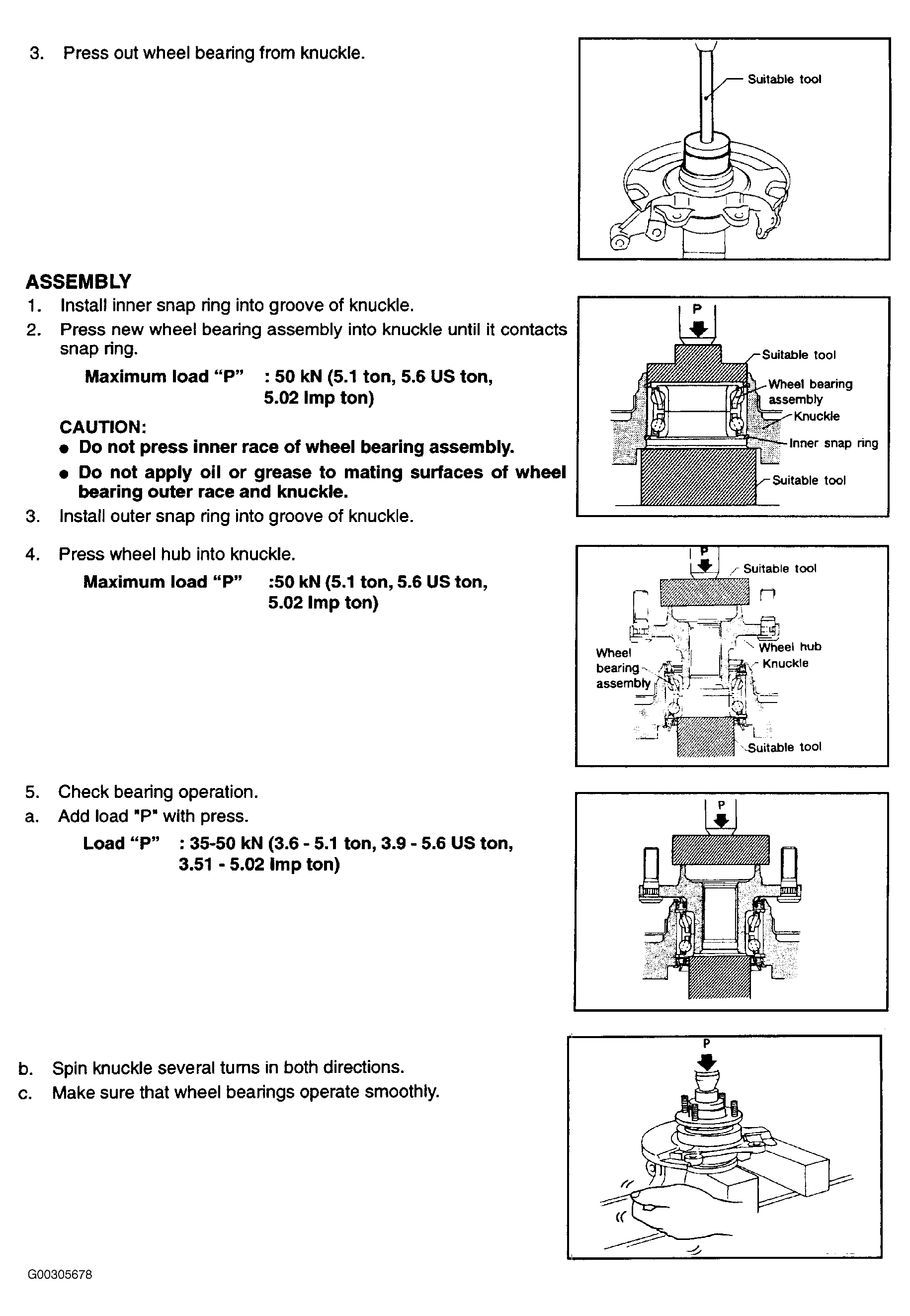

Fig 4: Front Wheel Hub & Bearing Replacement Procedure (3 Of 3)
