Rear Parking Brake Shoes: Installation

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse order of removal noting the following:
- Apply brake grease to the contact areas shown. See Fig 1 .
- Install the parking brake shoe springs as shown. See Fig 2 .
The orientation of the adjuster is different from left to right. Assemble the adjuster so that the threaded part is expanded when rotating it to the direction as shown. See Fig 3 .
Completely retract the adjuster to assemble. When disassembling the adjuster, apply brake grease to the threads. After installing parking brake shoes and rotor, adjust the parking brake. See REAR PARKING BRAKE SHOES under ADJUSTMENTS

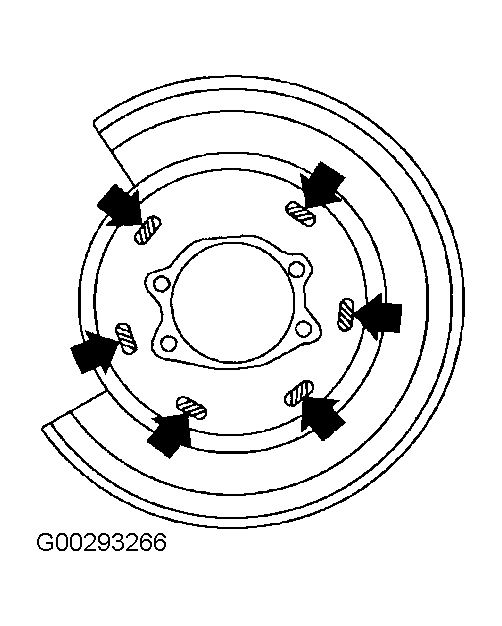

Fig 1: Locating Lubrication Points

Courtesy of NISSAN MOTOR CO., U.S.A.

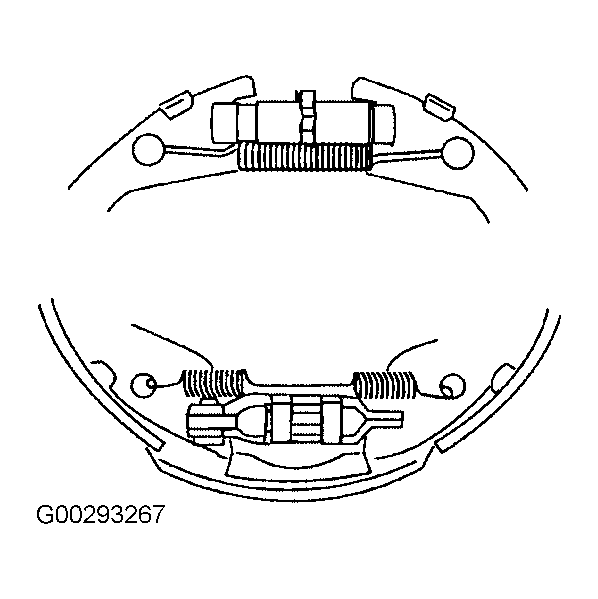

Fig 2: View Of Parking Brake Shoe Springs

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Identifying Adjuster Placement

Courtesy of NISSAN MOTOR CO., U.S.A.
