Section 254 (Disc & Drum): Overhaul

WARNING: This page is about a different car, the 2004 Nissan Pathfinder, 2003 Nissan Pathfinder, and 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Refer to appropriate illustration for exploded view of specific assembly. See Fig 1 -Fig 3 . For front caliper overhaul, see Figure . For rear wheel brake cylinder overhaul, see Figure . For rear axle and wheel bearing overhaul, see REAR AXLE SHAFT BEARING & OIL SEAL under REMOVAL & INSTALLATION.

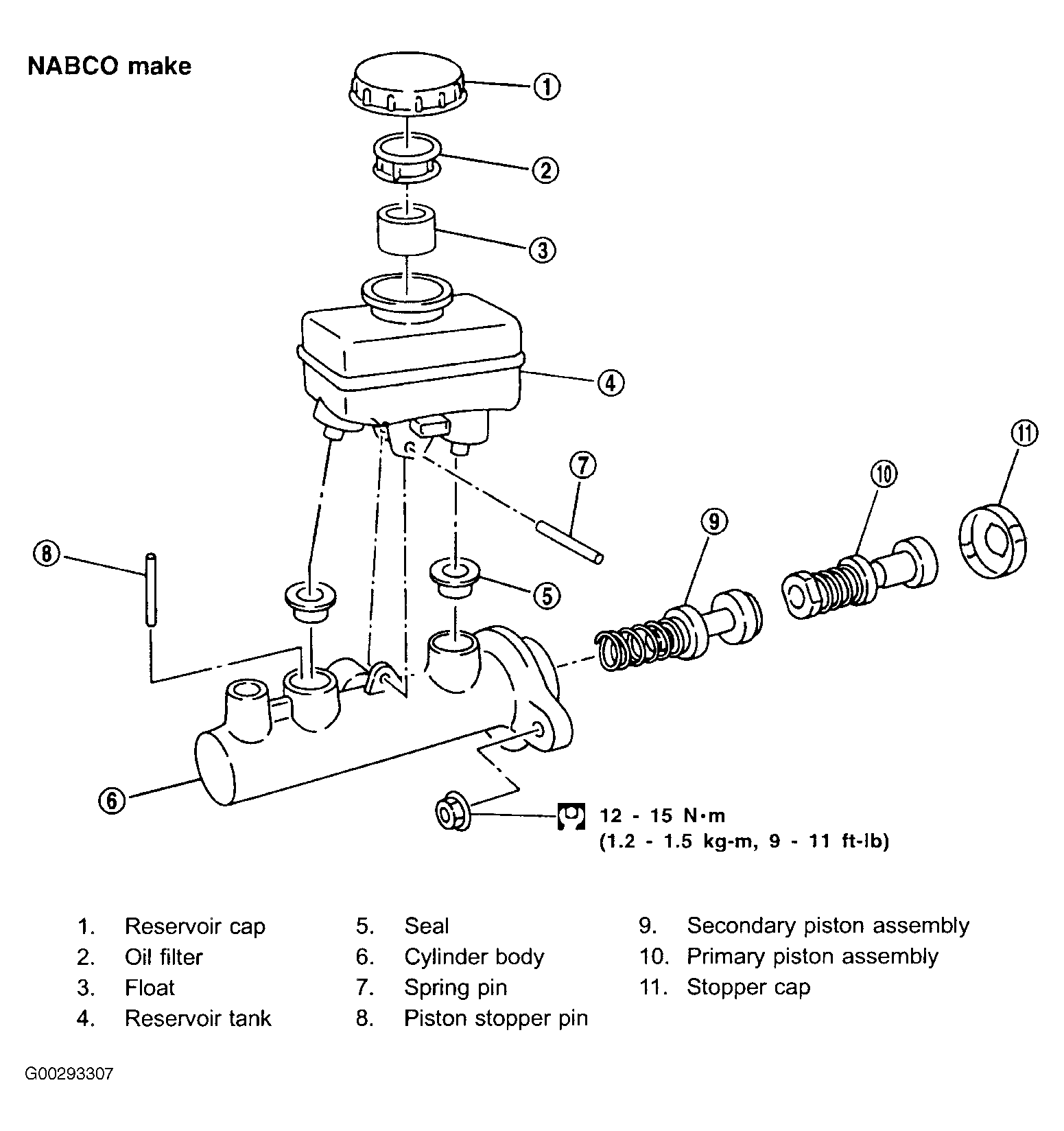

Fig 1: Exploded View Of Nabco Style Brake Master Cylinder (2002 Models) With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

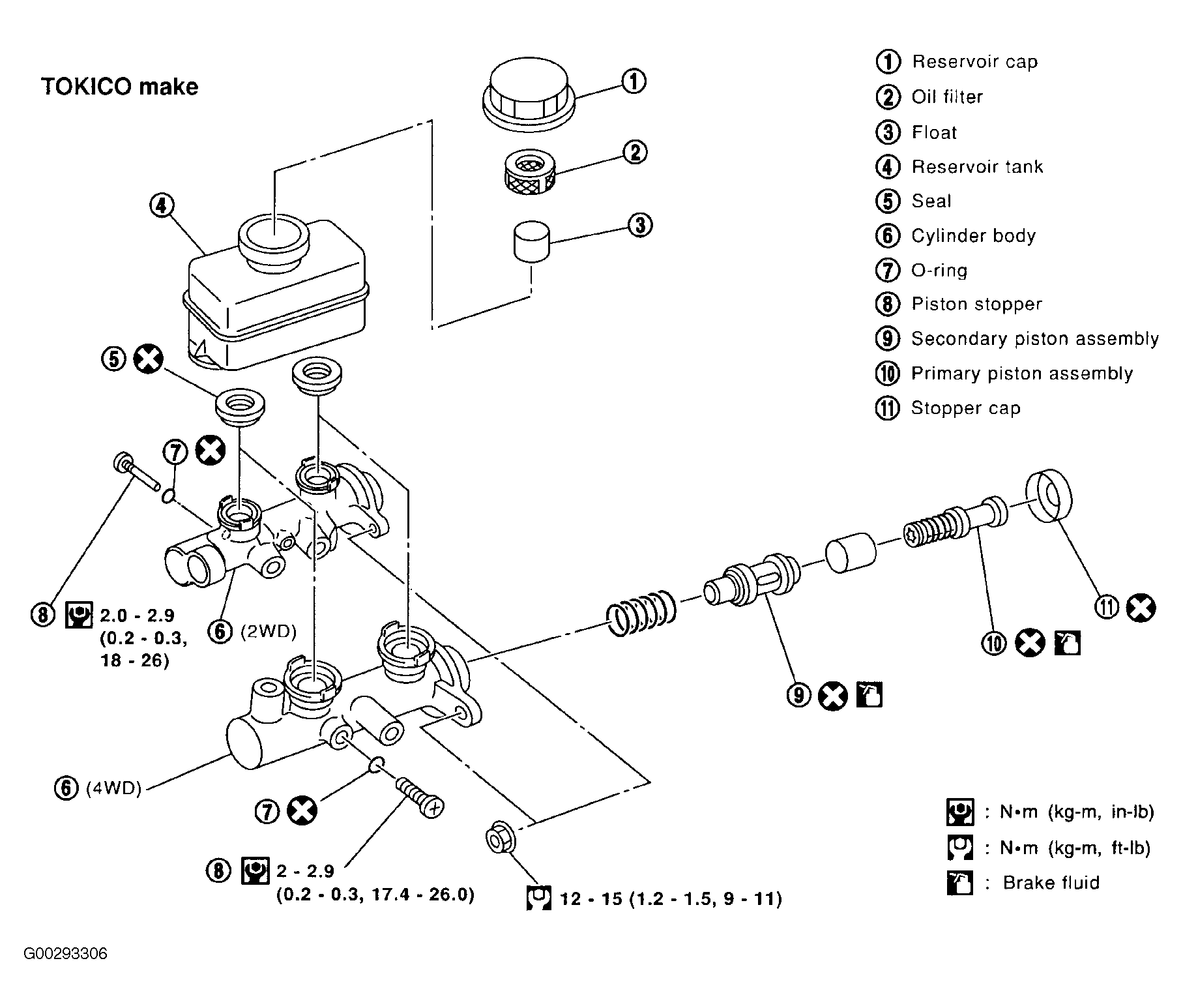

Fig 2: Exploded View Of Tokico Style Brake Master Cylinder (2002 Models) With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

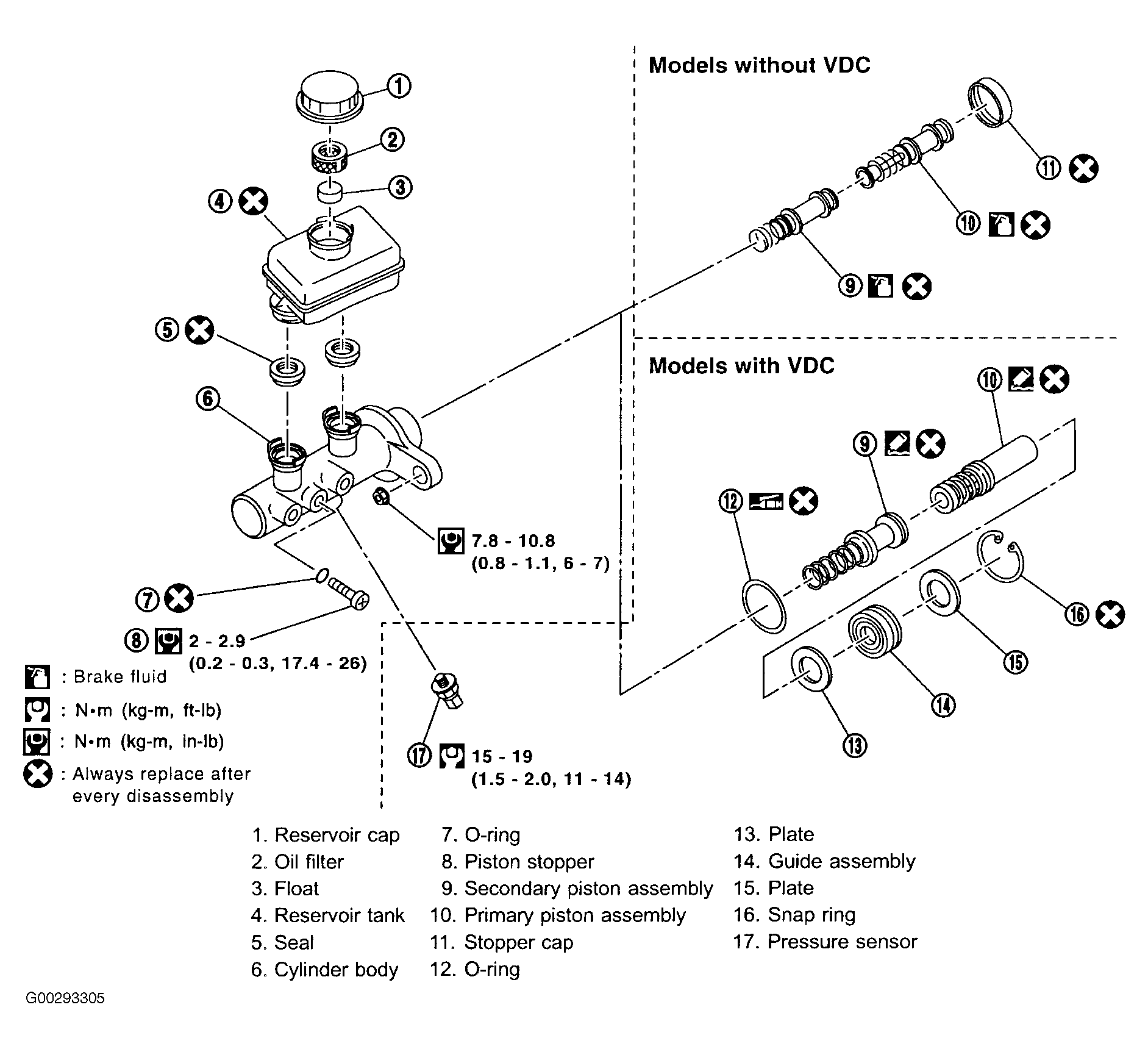

Fig 3: Exploded View Of Brake Master Cylinder (2003-04 Models) With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
