Preload Adjustment

WARNING: This page is about a different car, the 2004 Nissan Pathfinder, 2003 Nissan Pathfinder, and 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Adjust wheel bearing preload after wheel bearing has been replaced or front axle has been reassembled.

For preload adjustment of wheel bearing, see Fig 1 -Fig 2 .

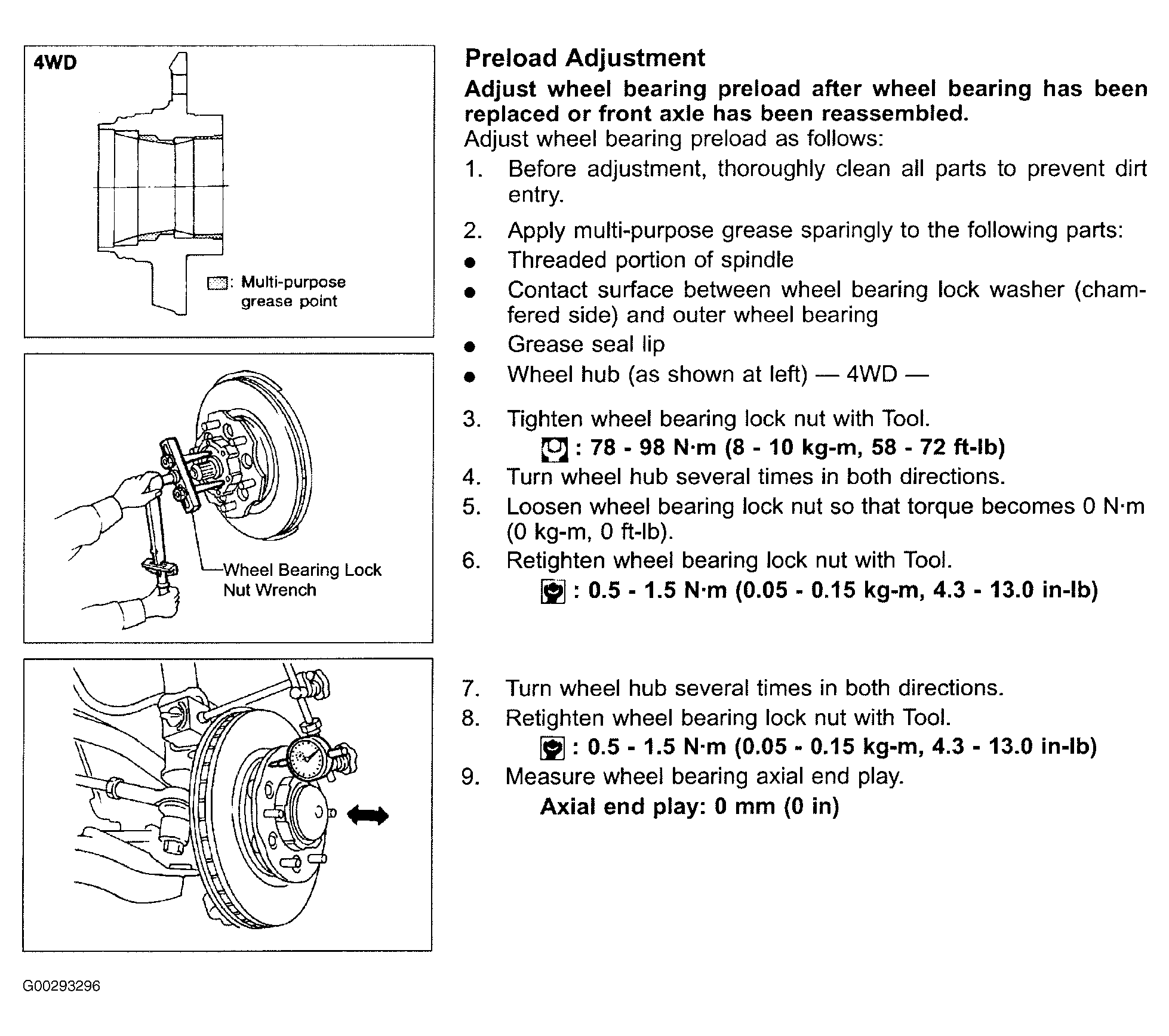

Fig 1: Performing Wheel Bearing Preload Adjustment (Steps 1-9)

Courtesy of NISSAN MOTOR CO., U.S.A.

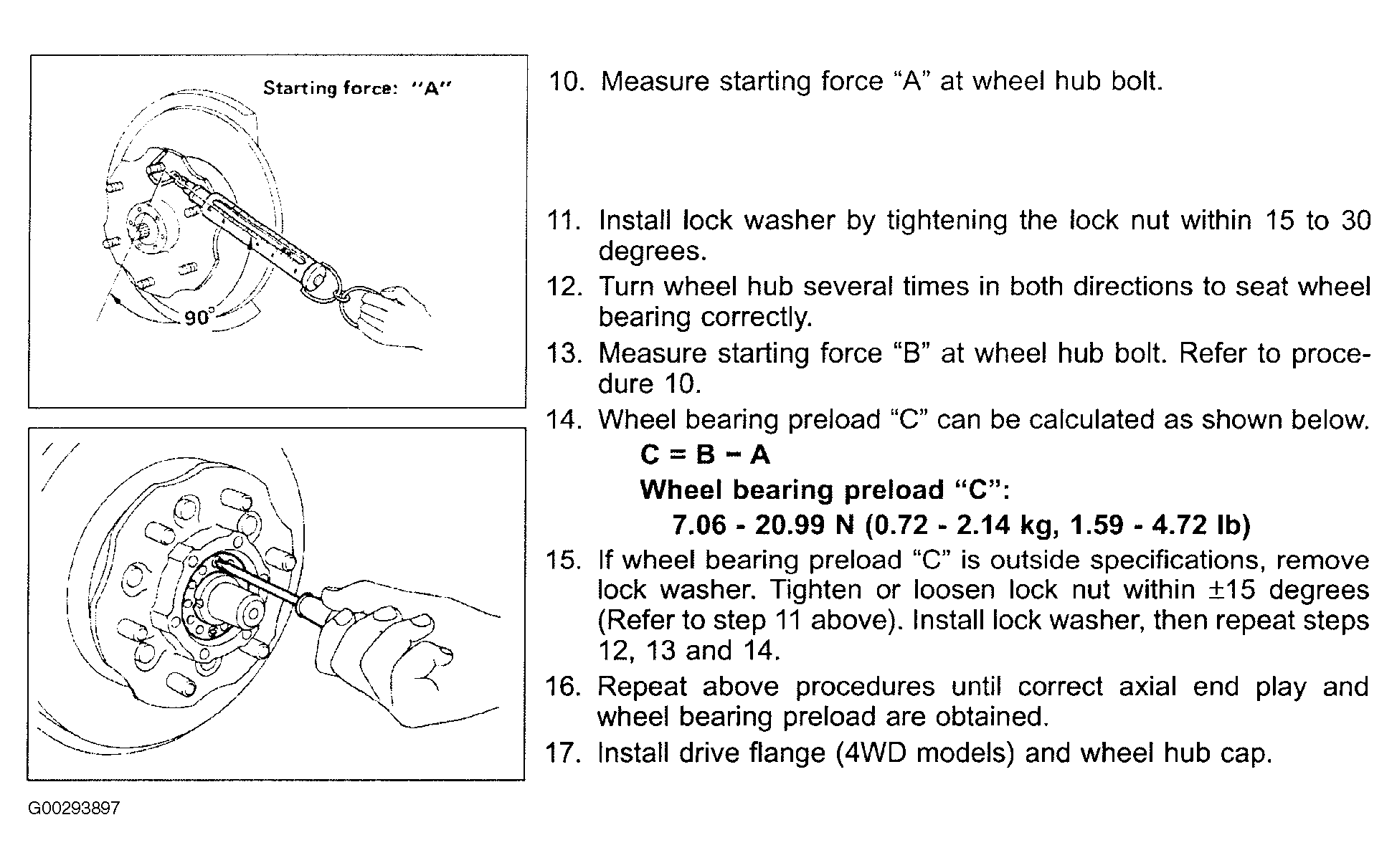

Fig 2: Performing Wheel Bearing Preload Adjustment (Steps 10-17)

Courtesy of NISSAN MOTOR CO., U.S.A.
