Sending Units & Sensors
WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
SENDING UNITS & SENSORS LOCATION
| Component | Location |
|---|---|
| Accelerator Pedal Position (APP) Sensor | Behind lower left center of dash. See Figure . |
| Air Bag Diagnosis Sensor Unit | Behind right end of dash. See Figure . |
| Air/Fuel Ratio Sensor (Bank 1) (F65) | At right rear of engine compartment. See Figure . |
| Air/Fuel Ratio Sensor (Bank 2) (F5) | At front of engine. See Figure . |
| Ambient Sensor (E1) | Behind center of front bumper. See Figure . |
| Belt Tension Sensor (B137) | At base of right "B" pillar. See Figure . |
| Camshaft Position Sensor (PHASE) (Bank 1) (F303) | At top right front of engine. See Figure . |
| Camshaft Position Sensor (PHASE) (Bank 2) (F23) | At left rear of engine. See Figure . |
| Crankshaft Position Sensor (F11) | At rear of engine. See Figure . |
| Crash Zone Sensor (E4) | At center front of engine compartment. See Figure . |
| EGR Temperature Sensor (F63) | At left front of engine compartment. See Figure . |
| Engine Coolant Temperature Sensor (F24) | At left rear of engine. See Figure . |
| EVAP Control System Pressure Sensor (B119) | Under right rear of vehicle. See Figure . |
| Front Wheel Sensor (Left) (E18) | At left front steering knuckle assembly. See Figure . |
| Front Wheel Sensor (Right) (E117) | At right front steering knuckle assembly. See Figure . |
| Heated Oxygen Sensor No. 2 (Bank 1) (F13) | At left rear of engine. See Figure . |
| Heated Oxygen Sensor No. 2 (Bank 2) (F12) | At right rear of engine. See Figure . |
| Intake Sensor (M305) | Behind lower center of center console. See Figure . |
| In-Vehicle Sensor (M32) | Behind center of dash. See Figure . |
| Knock Sensor (F302) | At top front of engine. See Figure . |
| Mass Air Flow Sensor (F31) | At left side of engine compartment. See Figure . |
| Optical Sensor (M402) | At top of right side of dash. See Figure . |
| Power Steering Pressure Sensor (F46) | At right rear of engine compartment. See Figure . |
| Rear Sonar System Sensor (Left Inner) (B203) | At left center of rear bumper. See Figure . |
| Rear Sonar System Sensor (Left Outer) (B202) | At left side of rear bumper. See Figure . |
| Rear Sonar System Sensor (Right Inner) (B204) | At right center of rear bumper. See Figure . |
| Rear Sonar System Sensor (Right Outer) (B205) | At right side of rear bumper. See Figure . |
| Rear Wheel Sensor (Left) (B123) | At left rear wheel hub assembly. See Figure . |
| Rear Wheel Sensor (Right) (B122) | At right rear wheel hub assembly. See Figure . |
| Refrigerant Pressure Sensor (E111) | At right front of engine compartment. See Figure . |
| Revolution Sensor (W/4 Speed A/T) (F38) | At rear of transaxle. See Figure . |
| Revolution Sensor (W/5 Speed A/T) (F402) | At rear of transaxle. See Figure . |
| Side Air Bag (Satellite) Sensor (Left) (B15) | At left "B" pillar. See Figure . |
| Side Air Bag (Satellite) Sensor (Right) (B114) | At right "B" pillar. See Figure . |
| Steering Angle Sensor (M47) | Behind left side of dash. See Figure . |
| Turbine Revolution Sensor (F37) | At rear of transaxle. See Figure . |

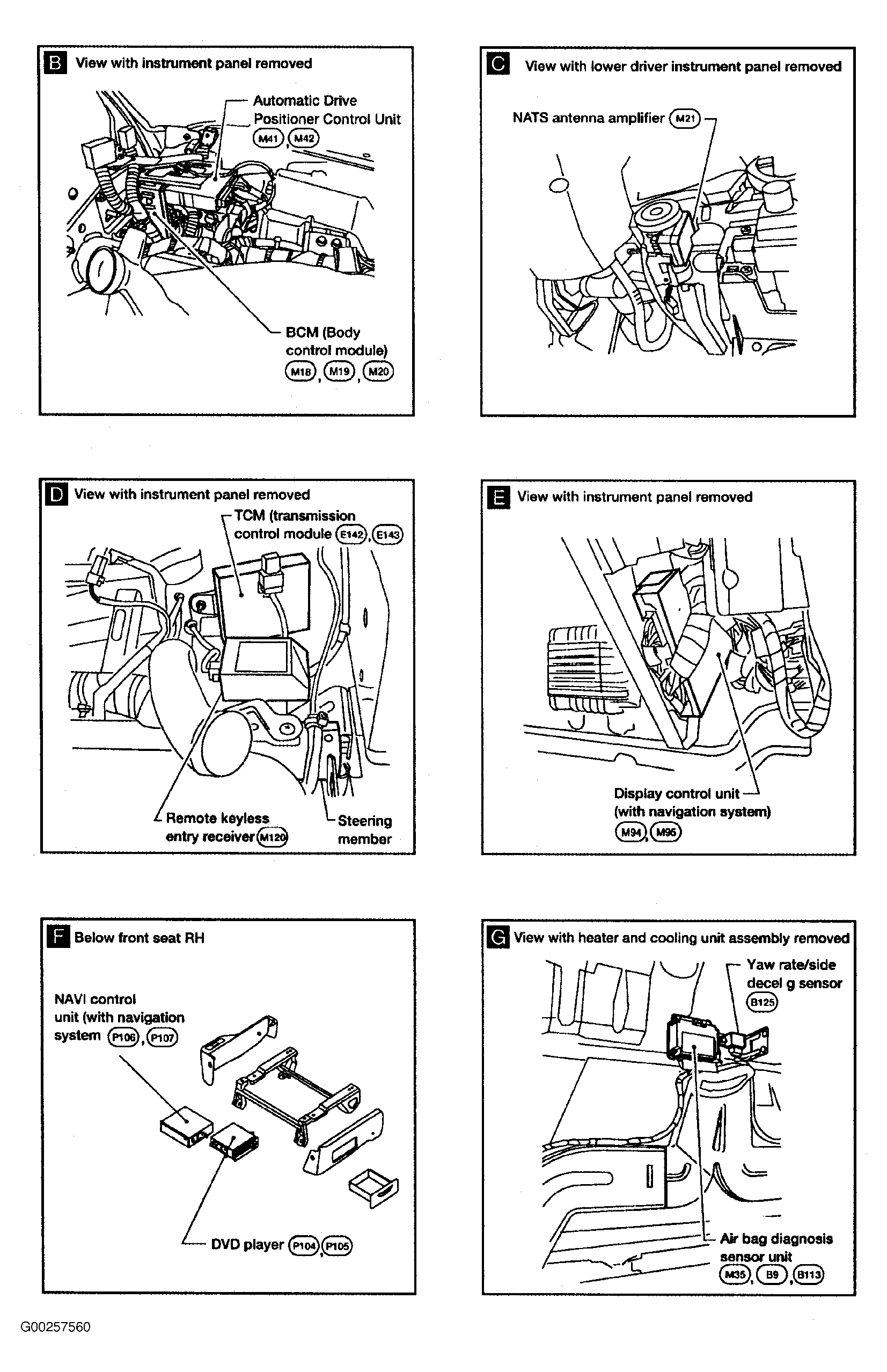

| Yaw Rate/Side/Decel G-Sensor | At lower center of dash. See Figure . |
