Buzzers, Relays & Timers

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

BUZZERS, RELAYS & TIMERS LOCATION

Component	Location
Accessory Relay	In fuse block (J/B). See Figure .
A/T PV IGN Relay	Behind right end of dash. See Figure .
Back Door Warning Chime	At left side of back door. See Figure .
Blower Relay	In fuse block (J/B). See Figure .

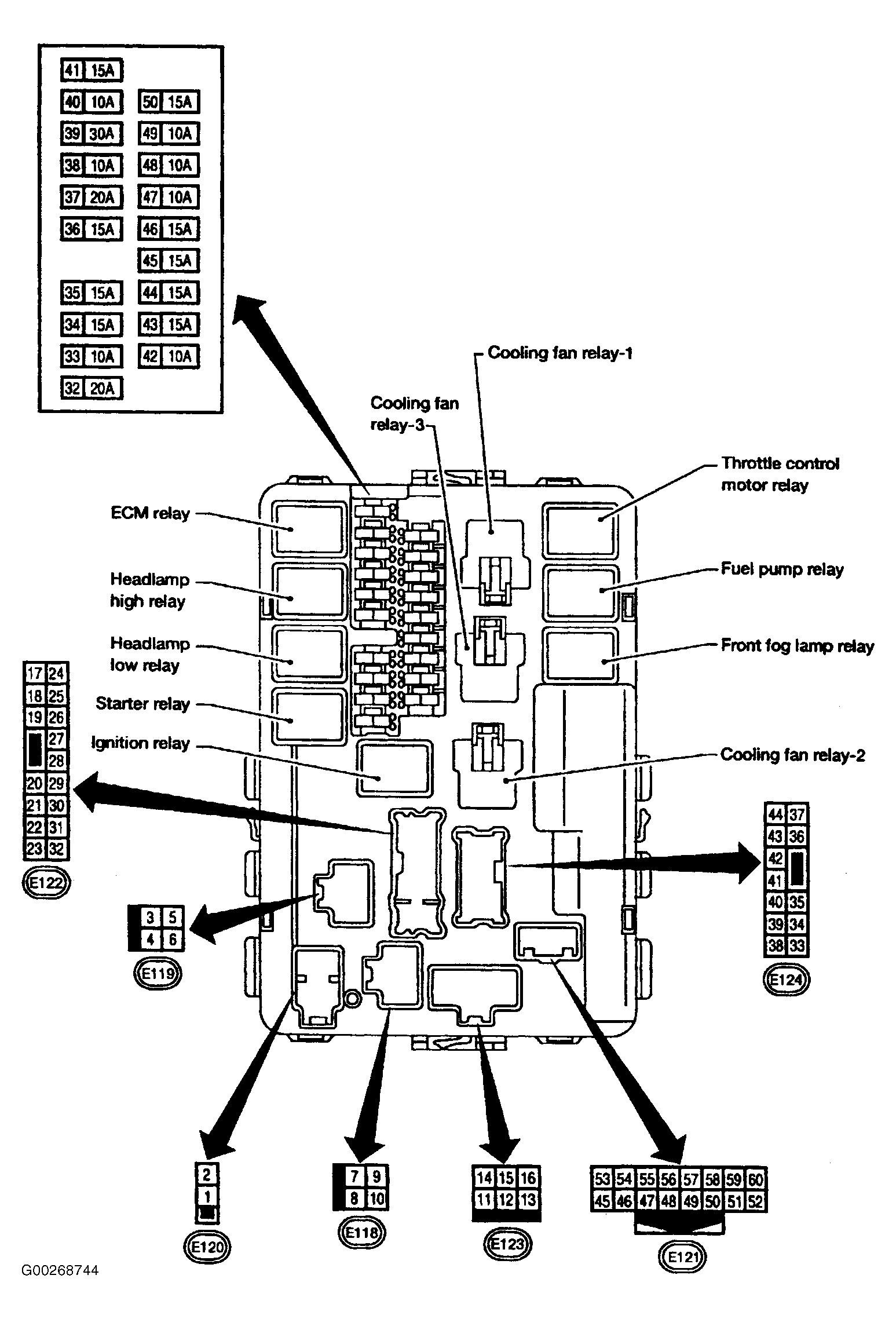

Cooling Fan Relay-1	In IPDM E/R (intelligent power distribution module engine room). See Figure .
Cooling Fan Relay-2	In IPDM E/R (intelligent power distribution module engine room). See Figure .
Cooling Fan Relay-3	In IPDM E/R (intelligent power distribution module engine room). See Figure .
Daytime Light Relay (E148)	At left side of engine compartment. See Figure .
ECM Relay	In IPDM E/R (intelligent power distribution module engine room). See Figure .
Front Blower Motor Relay	In fuse & fusible link box. See Figure .
Front Fog Lamp Relay	In IPDM E/R (intelligent power distribution module engine room). See Figure .
Fuel Lid Opener Relay (M13)	Behind left side of dash. See Figure .
Fuel Pump Relay	In IPDM E/R (intelligent power distribution module engine room). See Figure .
Headlamp High Relay	In IPDM E/R (intelligent power distribution module engine room). See Figure .
Headlamp Low Relay	In IPDM E/R (intelligent power distribution module engine room). See Figure .
Heated Seat Relay (B109)	At right kick panel. See Figure .
Heater Pump Relay	Behind right kick panel. See Figure .
Horn Relay	In fuse & fusible link box. See Figure .
Ignition Relay	In IPDM E/R (intelligent power distribution module engine room). See Figure .
Rear Window Defogger Relay (B4)	At left kick panel. See Figure .
Sonar Buzzer (M117)	Behind center of dash. See Figure .
Starter Relay	In IPDM E/R (intelligent power distribution module engine room). See Figure .
Throttle Control Motor Relay	In IPDM E/R (intelligent power distribution module engine room). See Figure .
