Buzzers, Relays & Timers
WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
BUZZERS, RELAYS & TIMERS LOCATION
| Component | Location |
|---|---|

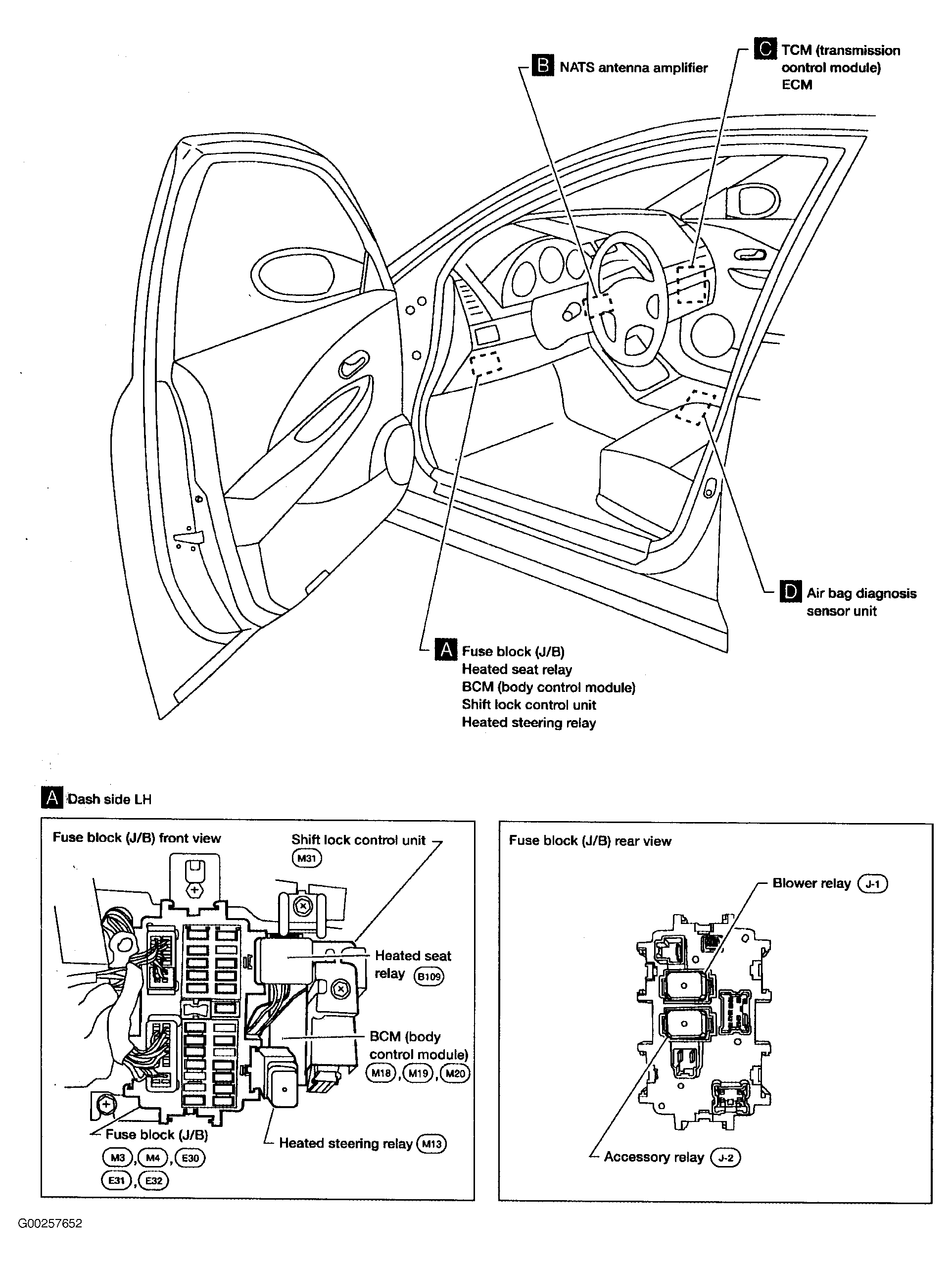

| Accessory Relay | On fuse block (J/B). See Figure . |

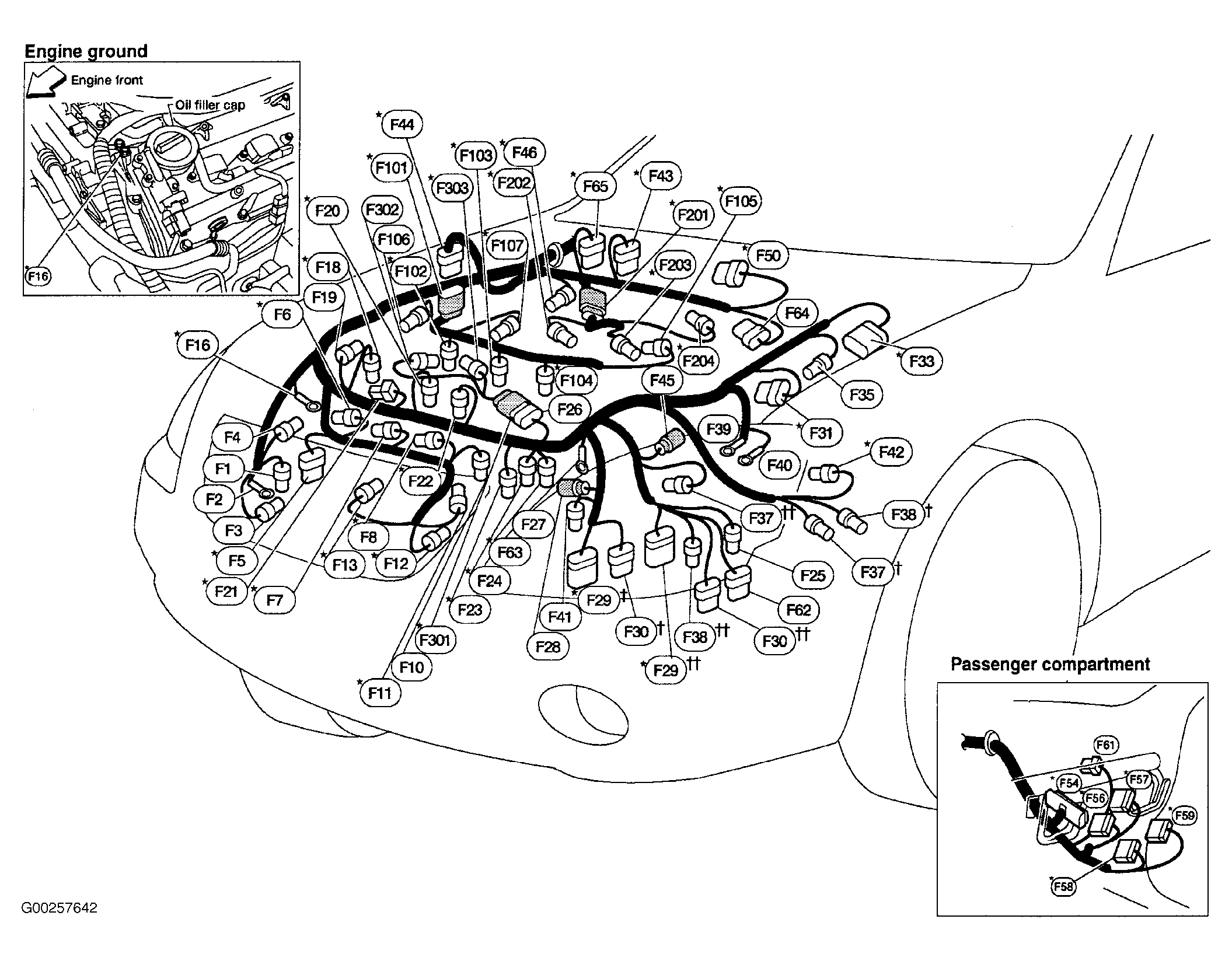

| A/T PV IGN Relay (A/T) (F61) | Behind right end of dash. See Figure . |
| Blower Relay | On fuse block (J/B). See Figure . |

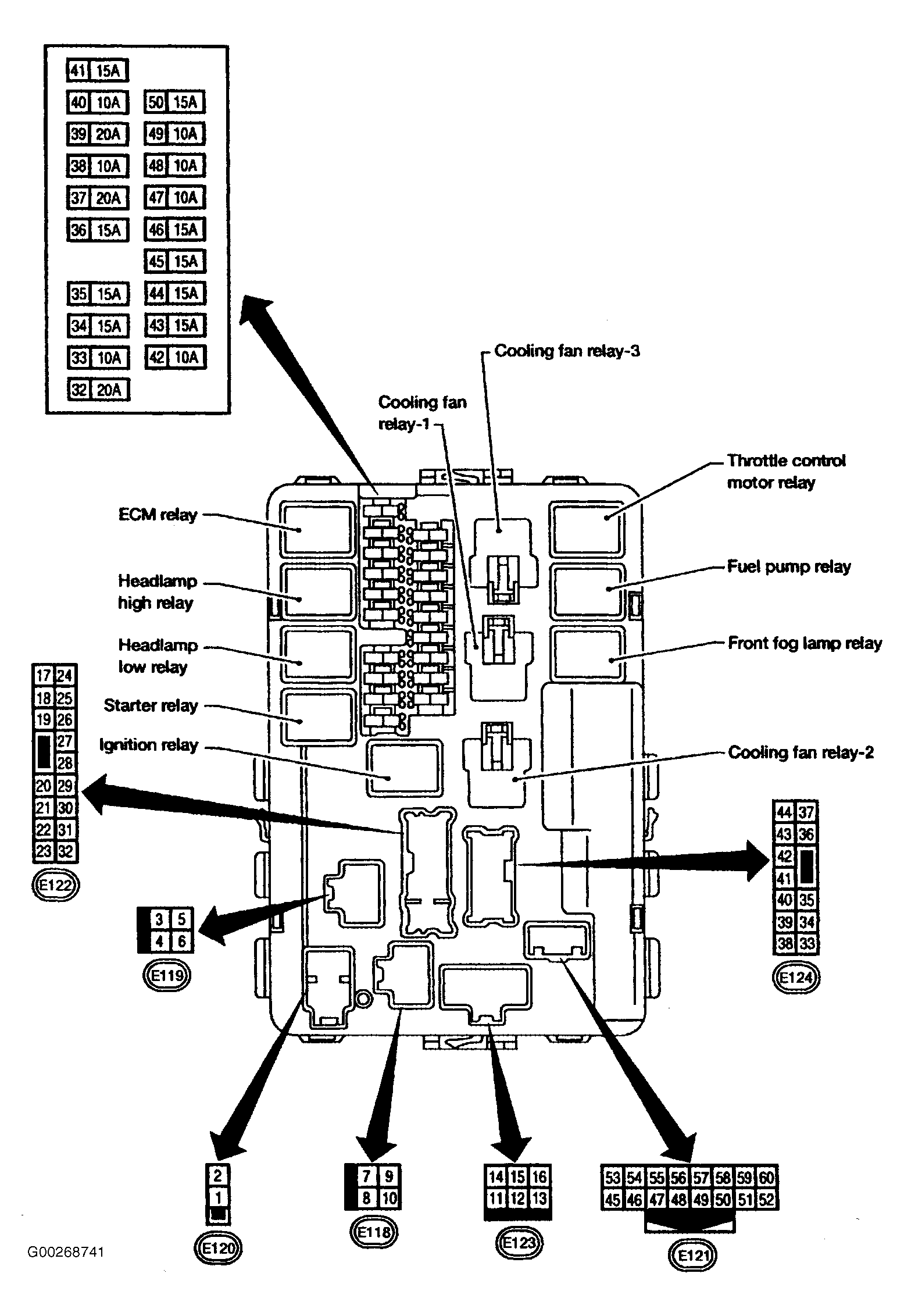

| Cooling Fan Relay-1 | In IPDM E/R (intelligent power distribution module). See Figure . |
| Cooling Fan Relay-2 | In IPDM E/R (intelligent power distribution module, engine room). See Figure . |
| Cooling Fan Relay-3 | In IPDM E/R (intelligent power distribution module, engine room). See Figure . |

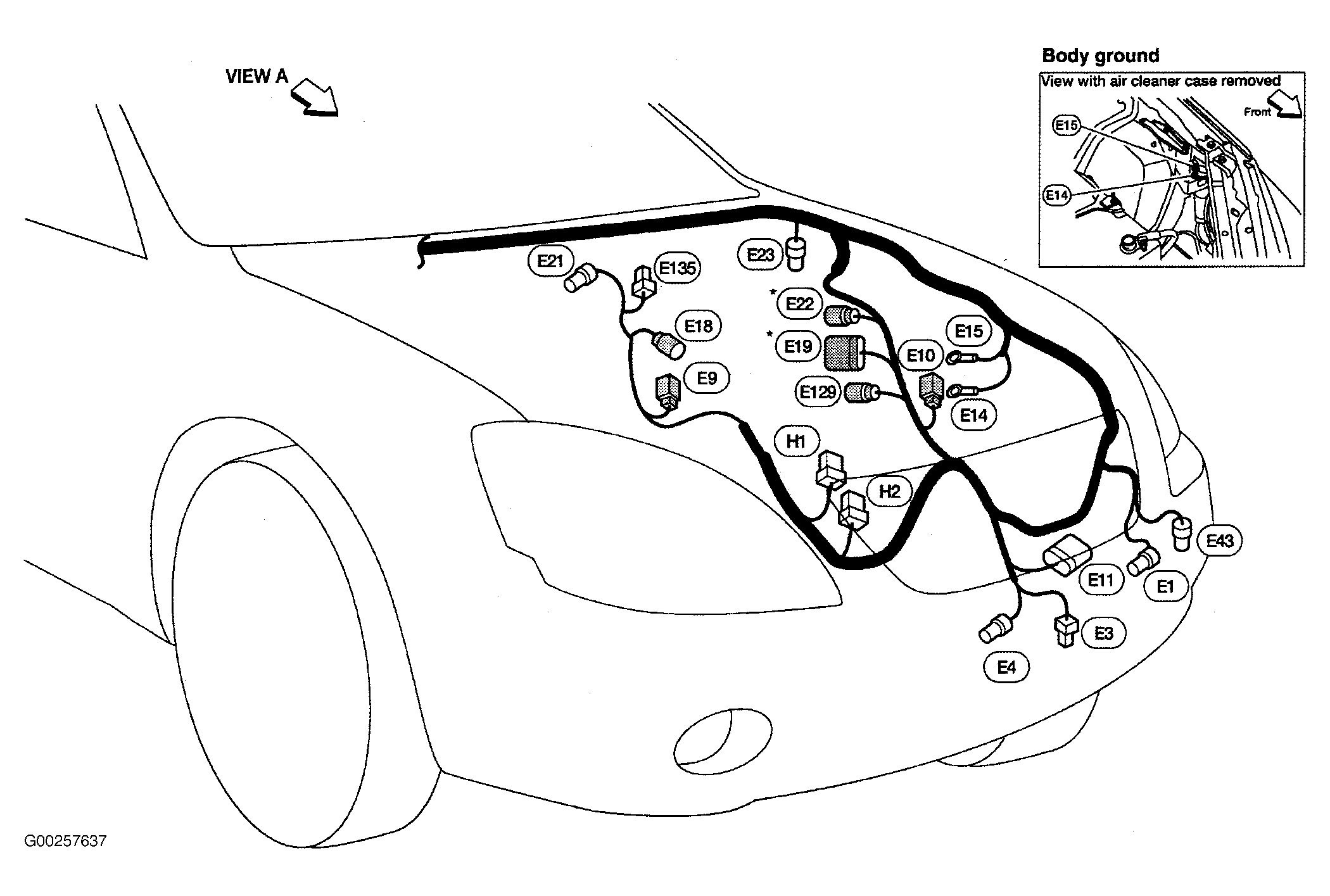

| Daytime Light Relay (H2) | Inside fuse & fusible link box. See Figure . |
| ECM Relay | In IPDM E/R (intelligent power distribution module, engine room). See Figure . |
| Front Fog Lamp Relay | In IPDM E/R (intelligent power distribution module, engine room). See Figure . |
| Fuel Pump Relay | In IPDM E/R (intelligent power distribution module, engine room). See Figure . |
| Headlamp High Relay | In IPDM E/R (intelligent power distribution module, engine room). See Figure . |
| Headlamp Low Relay | In IPDM E/R (intelligent power distribution module, engine room). See Figure . |
| Heated Seat Relay | Near fuse block (J/B). See Figure . |
| Heated Steering Relay | Near fuse block (J/B). See Figure . |

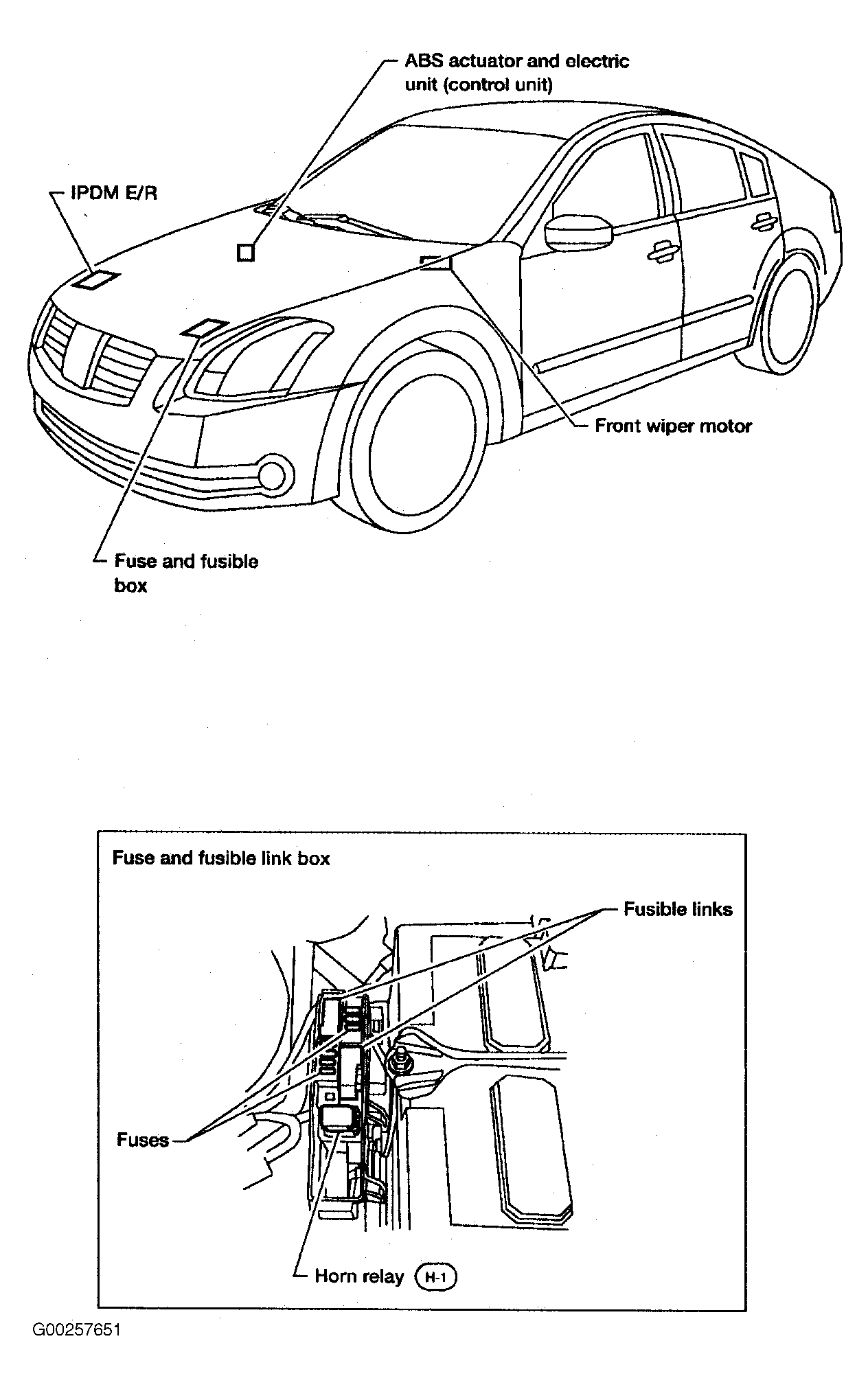

| Horn Relay | In fuse & fusible link box. See Figure . |
| Ignition Relay | In IPDM E/R (intelligent power distribution module, engine room). See Figure . |

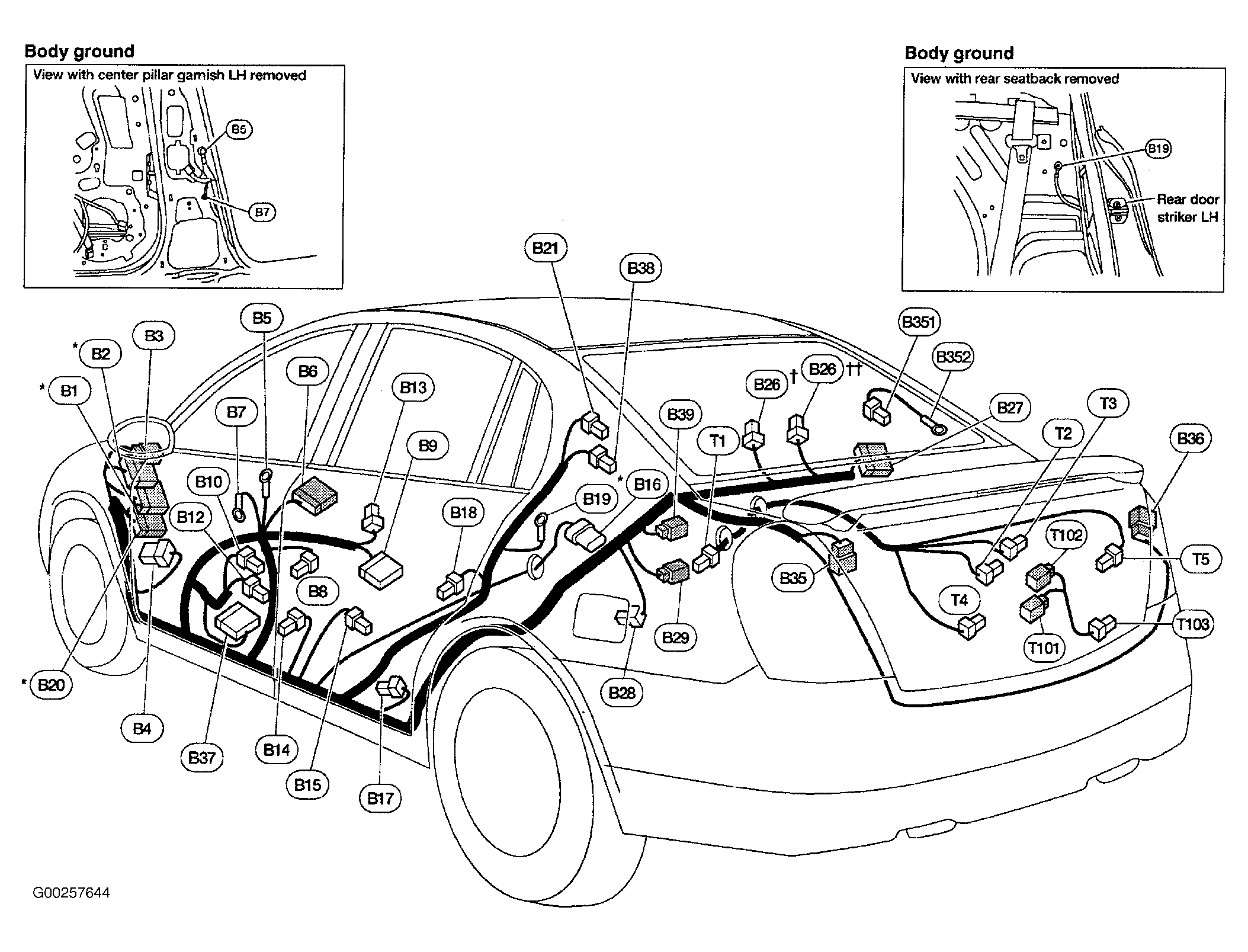

| Rear Window Defogger Relay (B4) | At left kick panel. See Figure . |

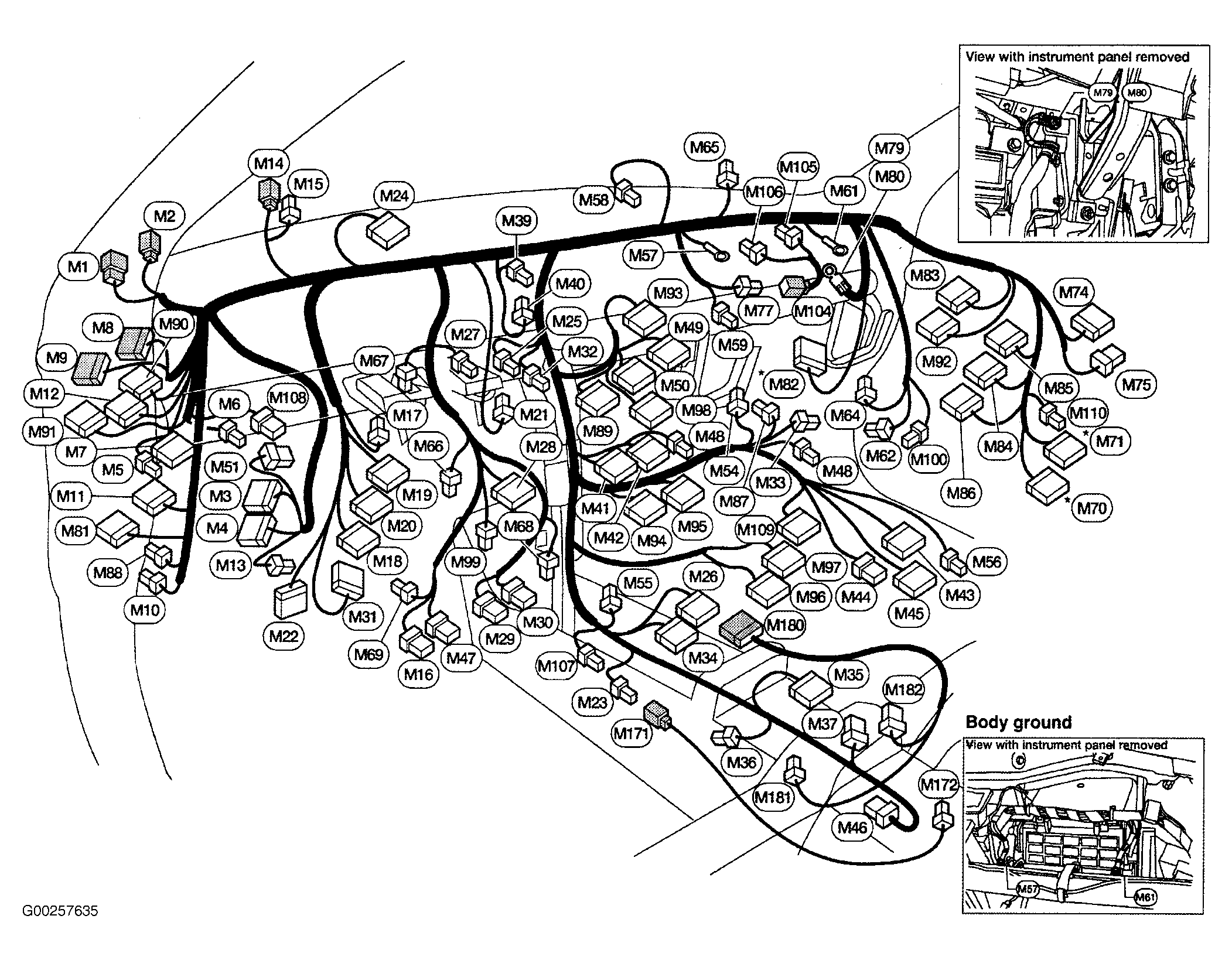

| Relay (M51) | Behind left side of dash. See Figure . |
| Starter Relay | In IPDM E/R (intelligent power distribution module, engine room). See Figure . |
| Throttle Control Motor Relay | In IPDM E/R (intelligent power distribution module, engine room). See Figure . |
