Intake Air Temperature Sensor

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Check resistance between mass air flow sensor (1) terminals 5 and 6 under the following conditions.

Intake air temperature °C (°F)	Resistance kΩ
25 (77)	1.800 - 2.200

Fig 1: Identifying Mass Air Flow Sensor

Courtesy of NISSAN NORTH AMERICA, INC.

If NG, replace mass air flow sensor (with intake air temperature sensor). Refer to "REMOVAL AND INSTALLATION ".

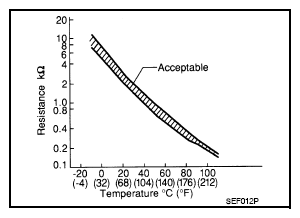

Fig 2: Fuel Tank Temperature Sensor Resistance Graph

Courtesy of NISSAN NORTH AMERICA, INC.
