Component Description

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

The EVAP canister vent control valve (3) is located on the EVAP canister (4) and is used to seal the canister vent.

Fuel filler pipe (top of frame view) (1)
EVAP control system pressure sensor (2)
Drain filter (5)
: Vehicle front

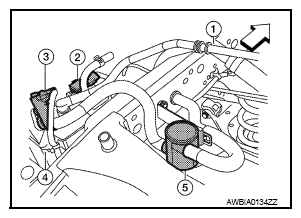

Fig 1: Identifying Fuel Filler Pipe, EVAP Control System Pressure Sensor, EVAP Canister Vent Control Valve, EVAP Canister And Drain Filter

Courtesy of NISSAN NORTH AMERICA, INC.

This solenoid valve responds to signals from the ECM. When the ECM sends an ON signal, the coil in the solenoid valve is energized. A plunger will then move to seal the canister vent. The ability to seal the vent is necessary for the on board diagnosis of other evaporative emission control system components.

This solenoid valve is used only for diagnosis, and usually remains opened.

When the vent is closed, under normal purge conditions, the evaporative emission control system is depressurized and allows "EVAP Control System" diagnosis.

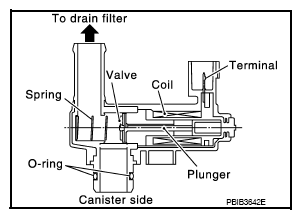

Fig 2: Identifying EVAP Canister Vent Control Valve Components

Courtesy of NISSAN NORTH AMERICA, INC.
