Knock Sensor

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Check resistance between knock sensor terminal 1 and ground.

NOTE: It is necessary to use an ohmmeter which can measure more than 10 MΩ.

Resistance: Approximately 532 - 588 kΩ [at 20°C (68°F)]

CAUTION: Never use any knock sensors that have been dropped or physically damaged. Use only new ones.

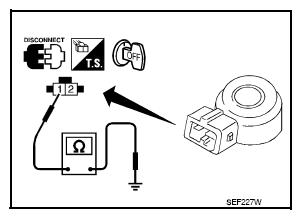

Fig 1: Checking Resistance Between Knock Sensor Terminal 1 And Ground

Courtesy of NISSAN NORTH AMERICA, INC.
