Throttle Position Sensor

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Reconnect all harness connectors disconnected.
Perform "THROTTLE VALVE CLOSED POSITION LEARNING ".
Turn ignition switch ON.
Shift selector lever to the D position.

Check voltage between ECM terminals 50 (TP sensor 1 signal) and ground, 69 (TP sensor 2 signal) and ground under the following conditions.

Terminal	Accelerator pedal	Voltage
50 (Throttle position sensor 1)	Fully released	More than 0.36V
50 (Throttle position sensor 1)	Fully depressed	Less than 4.75V
69 (Throttle position sensor 2)	Fully released	Less than 4.75V
69 (Throttle position sensor 2)	Fully depressed	More than 0.36V

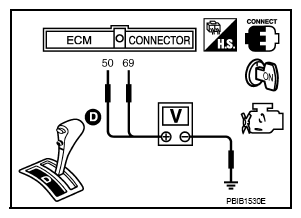

Fig 1: Checking Voltage Between ECM Terminals 50, 69 And Ground

Courtesy of NISSAN NORTH AMERICA, INC.

If NG, replace electric throttle control actuator and go to the next step. Refer to INTAKE MANIFOLD .
Perform "THROTTLE VALVE CLOSED POSITION LEARNING ".
Perform "IDLE AIR VOLUME LEARNING ".
