Component Description

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

The fuel tank temperature sensor is used to detect the fuel temperature inside the fuel tank. The sensor modifies a voltage signal from the ECM. The modified signal returns to the ECM as the fuel temperature input. The sensor uses a thermistor which is sensitive to the change in temperature. The electrical resistance of the thermistor decreases as temperature increases.

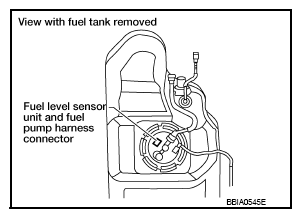

Fig 1: Identifying Fuel Level Sensor Unit And Fuel Pump Harness Connector

Courtesy of NISSAN NORTH AMERICA, INC.

Fluid temperature [°C (°F)]

Voltage⁽¹⁾ (V)

Resistance (kΩ)

20 (68)

3.5

2.3 - 2.7

50 (122)

2.2

0.79 - 0.90

⁽¹⁾	These data are reference values and are measured between ECM terminal 107 (Fuel tank temperature sensor) and ground.

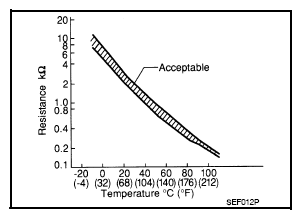

Fig 2: Fuel Tank Temperature Sensor Resistance Graph

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Never use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
