Accelerator Pedal Position Sensor
WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
- Reconnect all harness connectors disconnected.
- Turn ignition switch ON.

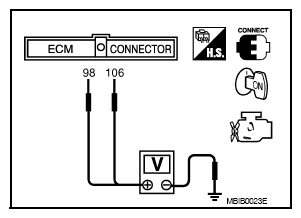

- Check voltage between ECM terminals 106 (APP sensor 1 signal), 98 (APP sensor 2 signal) and ground under the following conditions.
Terminal Accelerator pedal Voltage 106 (Accelerator pedal position sensor 1) Fully released 0.65 - 0.87V Fully depressed More than 4.3V 98 (Accelerator pedal position sensor 2) Fully released 0.28 - 0.48V Fully depressed More than 2.0V - If NG, replace accelerator pedal assembly, refer to REMOVAL AND INSTALLATION , and go to next step.
- Perform "ACCELERATOR PEDAL RELEASED POSITION LEARNING ".
- Perform "THROTTLE VALVE CLOSED POSITION LEARNING ".
- Perform "IDLE AIR VOLUME LEARNING ".
