Diagnosis Procedure

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK OVERALL FUNCTION-I

    With CONSULT

    1. Turn ignition switch ON.
    2. Select "BRAKE SW1" in "DATA MONITOR" mode with CONSULT.
    3. Check "BRAKE SW1" indication under the following conditions.
    CONDITION INDICATION
    Brake pedal: Fully released ON
    Brake pedal: Slightly depressed OFF

    Without CONSULT

    1. Turn ignition switch ON.
    2. Check voltage between ECM terminal 108 and ground under the following conditions.
    CONDITION VOLTAGE
    Brake pedal: Fully released Battery voltage
    Brake pedal: Slightly depressed Approximately 0V

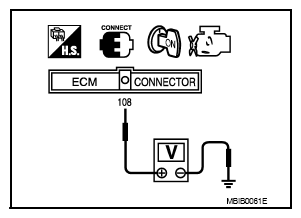

    Fig 1: Checking Voltage Between ECM Terminal 108 And Ground
    G08165186Courtesy of NISSAN NORTH AMERICA, INC.

    OK or NG

    OK: GO TO 2.

    NG: GO TO  3.

  2. CHECK OVERALL FUNCTION-II

    With CONSULT

    Check "BRAKE SW2" indication in "DATA MONITOR" mode.

    CONDITION INDICATION
    Brake pedal: Fully released OFF
    Brake pedal: Slightly depressed ON

    Without CONSULT

    Check voltage between ECM terminal 101 and ground under the following conditions.

    CONDITION VOLTAGE
    Brake pedal: Fully released Approximately 0V
    Brake pedal: Slightly depressed Battery voltage

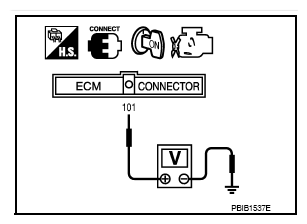

    Fig 2: Checking Voltage Between ECM Terminal 101 And Ground
    G08165187Courtesy of NISSAN NORTH AMERICA, INC.

    OK or NG

    OK: GO TO  11.

    NG: GO TO  7.

  3. CHECK ASCD BRAKE SWITCH POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect ASCD brake switch harness connector.
    3. Turn ignition switch ON.

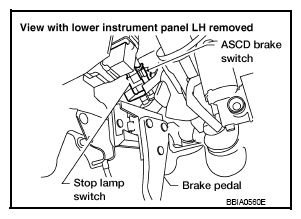

      Fig 3: Identifying ASCD Brake Switch, Brake Pedal And Stop Lamp Switch
      G08165188Courtesy of NISSAN NORTH AMERICA, INC.
    4. Check voltage between ASCD brake switch terminal 1 and ground with CONSULT or tester.

    Voltage: Battery voltage

    OK or NG

    OK: GO TO  5.

    NG: GO TO 4.

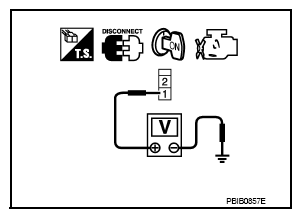

    Fig 4: Checking Voltage Between ASCD Brake Switch Harness Connector Terminal 1 And Ground Using Tester
    G08165189Courtesy of NISSAN NORTH AMERICA, INC.
  4. DETECT MALFUNCTIONING PART

    Check the following.

    • Fuse block (J/B) connector E160
    • 10 A fuse (No. 12)
    • Harness for open or short between ASCD brake switch and fuse

    Repair open circuit or short to ground or short to power in harness or connectors.

  5. CHECK ASCD BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Check harness continuity between ECM terminal 108 and ASCD brake switch terminal 2.

      Refer to WIRING DIAGRAM .

      Continuity should exist  .

    4. Also check harness for short to ground and short to power.

    OK or NG

    OK: GO TO 6.

    NG: Repair open circuit or short to ground or short to power in harness or connectors.

  6. CHECK ASCD BRAKE SWITCH

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    OK: GO TO  11.

    NG: Replace ASCD brake switch. Refer to REMOVAL AND INSTALLATION .

  7. CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect stop lamp switch harness connector.

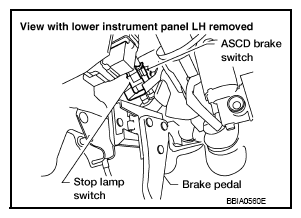

      Fig 5: Identifying ASCD Brake Switch, Brake Pedal And Stop Lamp Switch
      G08165190Courtesy of NISSAN NORTH AMERICA, INC.
    3. Check voltage between stop lamp switch terminal 1 and ground with CONSULT or tester.

    Voltage: Battery voltage

    OK or NG

    OK: GO TO  9.

    NG: GO TO 8.

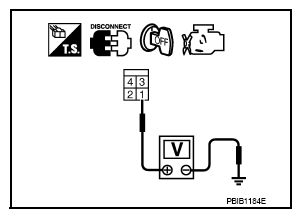

    Fig 6: Checking Voltage Between Stop Lamp Switch Harness Connector Terminal 1 And Ground Using Tester
    G08165191Courtesy of NISSAN NORTH AMERICA, INC.
  8. DETECT MALFUNCTIONING PART

    Check the following.

    • Fuse block (J/B) connector E160
    • 10 A fuse (No. 20)
    • Harness for open or short between stop lamp switch and battery

    Repair open circuit or short to ground or short to power in harness or connectors.

  9. CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Disconnect ECM harness connector.
    2. Check harness continuity between ECM terminal 101 and stop lamp switch terminal 2.

      Refer to WIRING DIAGRAM .

      Continuity should exist  .

    3. Also check harness for short to ground and short to power.

    OK or NG

    OK: GO TO 10.

    NG: Repair open circuit or short to ground or short to power in harness or connectors.

  10. CHECK STOP LAMP SWITCH

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    OK: GO TO 11.

    NG: Replace stop lamp switch. Refer to REMOVAL AND INSTALLATION .

  11. CHECK INTERMITTENT INCIDENT

    Refer to "INTERMITTENT INCIDENT ".

    >> INSPECTION END
