ASCD Steering Switch

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect combination switch (spiral cable) harness connector M102.
  2. Check continuity between combination switch (spiral cable) terminals 14 and 15 with pushing each switch.
Switch Condition Resistance [Ω]
MAIN switch Pressed Approx. 0
Released Approx. 4, 000
CANCEL switch Pressed Approx. 250
Released Approx. 4, 000
RESUME/ACCELERATE switch Pressed Approx. 1, 480
Released Approx. 4, 000
SET/COAST switch Pressed Approx. 660
Released Approx. 4, 000

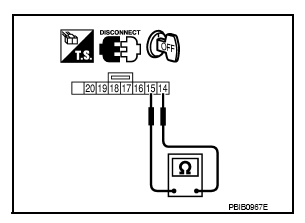

Fig 1: Checking Continuity Between Combination Switch (Spiral Cable) Terminals 14 And 15
G08165184Courtesy of NISSAN NORTH AMERICA, INC.
