Component Description

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

The ECM consists of a microcomputer and connectors for signal input and output and for power supply. The ECM controls the engine.

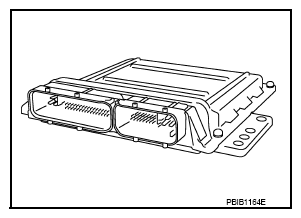

Fig 1: Identifying Electronic Control Module (ECM)
G08165139Courtesy of NISSAN NORTH AMERICA, INC.
