On Board Diagnosis Logic
WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
The heated oxygen sensor 2 has a much longer switching time between rich and lean than the air fuel ratio (A/F) sensor 1. The oxygen storage capacity of the three way catalyst (manifold) causes the longer switching time.

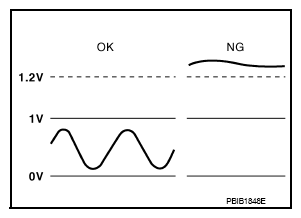

MALFUNCTION A
To judge malfunctions of heated oxygen sensor 2, ECM monitors whether the voltage is unusually high during various driving conditions such as fuel cut.

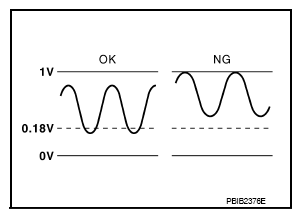

MALFUNCTION B
To judge malfunctions of heated oxygen sensor 2, ECM monitors whether the minimum voltage of sensor is sufficiently low during various driving conditions such as fuel cut.
| DTC No. | Trouble diagnosis name | DTC detecting condition | Possible cause | |
|---|---|---|---|---|
| P0138 0138 (Bank 1) | Heated oxygen sensor 2 circuit high voltage | A) | An excessively high voltage from the sensor is sent to ECM. |
|
| P0158 0158 (Bank 2) | B) | The minimum voltage from the sensor is not reached to the specified voltage. |
|
|
