Cooling Fan Operation

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

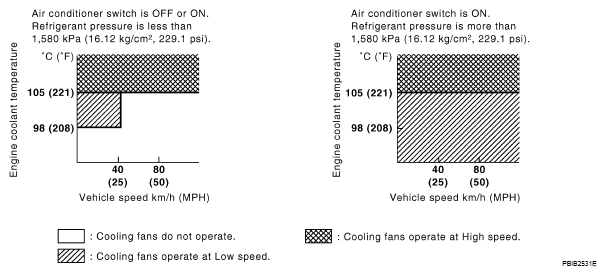

Fig 1: Identifying Cooling Fan Operation Chart
G04897194Courtesy of NISSAN NORTH AMERICA, INC.
