Camber, Caster And Kingpin Inclination

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Camber, caster and kingpin inclination are preset at factory and cannot be adjusted.

Measure camber, caster and kingpin inclination of both right and left wheels with a suitable alignment gauge.
- Camber, caster and kingpin inclination : Refer to "SPECIFICATIONS ".
If camber, caster or kingpin inclination is not within specification, inspect front suspension parts. Replace damaged or worn out parts.

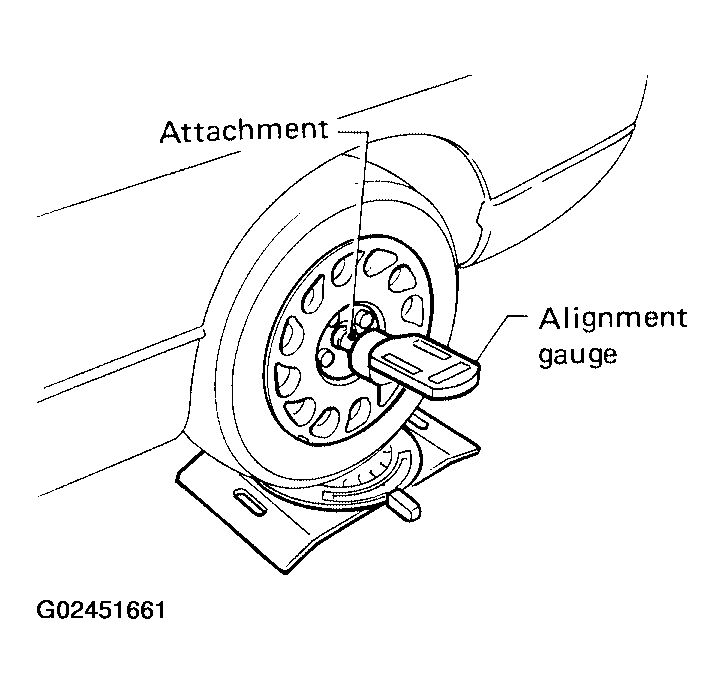

Fig 1: Measuring Camber, Caster And Kingpin Inclination
Courtesy of NISSAN MOTOR CO., U.S.A.
