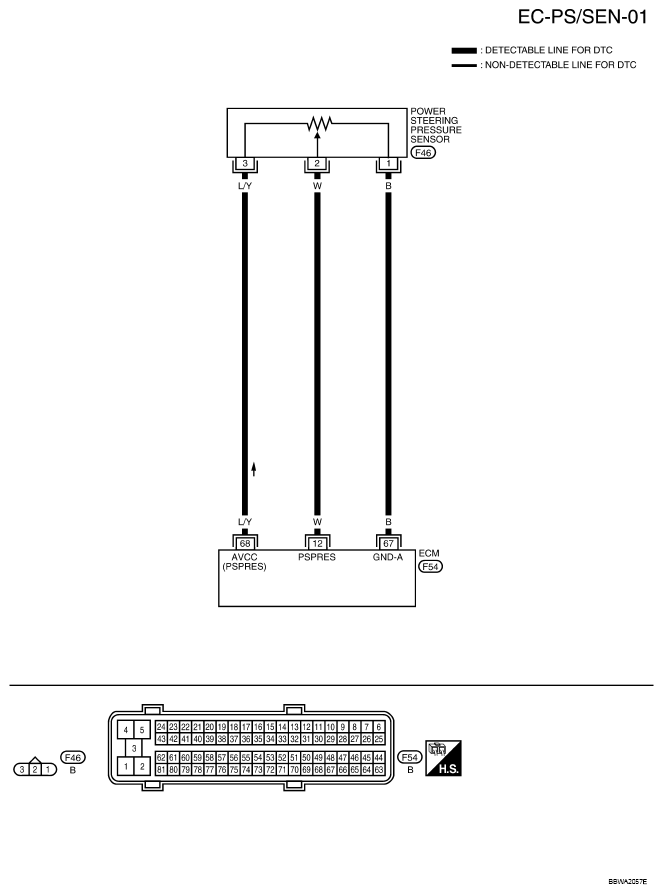

DTC P0550 PSP Sensor: Wiring Diagram
WARNING: This page is about a different car, the 2008 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
ECM INSPECTION TABLE
| TERMINAL NO. | WIRE COLOR | ITEM | CONDITION | DATA (DC Voltage) |
|---|---|---|---|---|
| 12 | W | Power steering pressure sensor | [Engine is running]
|
0.5 - 4.5V |
[Engine is running]
|
0.4 - 0.8V | |||
| 67 | B | Sensor ground | [Engine is running]
|
Approximately 0V |
| 68 | L/Y | Sensor power supply (Power steering pressure sensor) |
[Ignition switch ON] | Approximately 5V |
