DTC P0182, P0183 FTT Sensor: Wiring Diagram

WARNING: This page is about a different car, the 2008 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

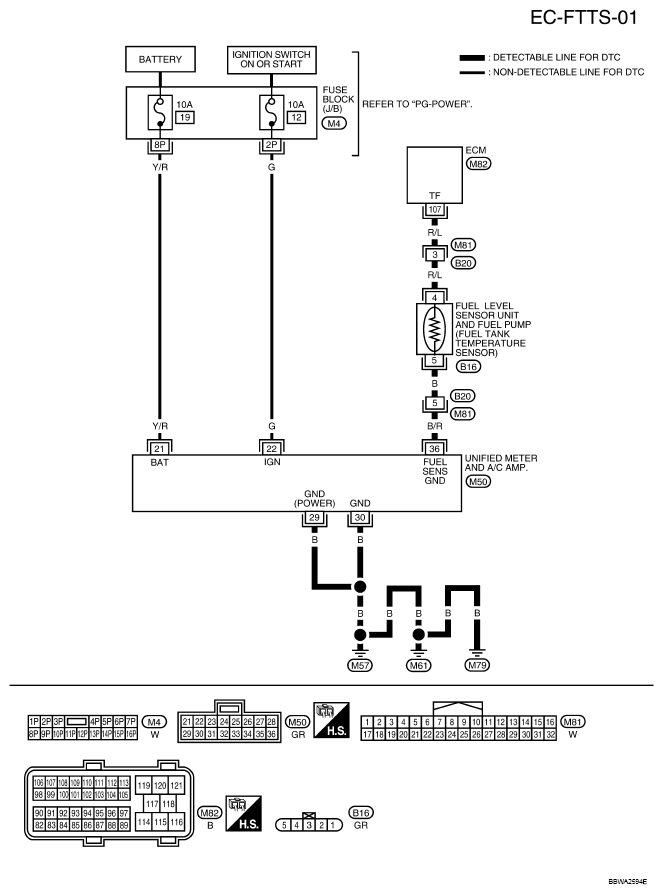

Fig 1: EC-FTTS-01 - Wiring Diagram
G04915483Courtesy of NISSAN MOTOR CO., U.S.A.
