Diagnostic Procedure

WARNING: This page is about a different car, the 2008 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect intake valve timing control solenoid valve harness connector.

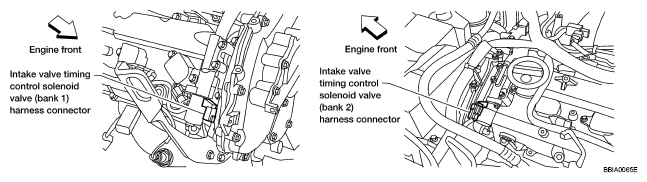

      Fig 1: Identifying Intake Valve Timing Control Solenoid Valve Connectors
      G04905233Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Turn ignition switch ON.
    4. Check voltage between intake valve timing control solenoid valve terminal 2 and ground with CONSULT-III or tester.

      Voltage: Battery voltage

      Fig 2: Checking Voltage Between Intake Valve Timing Control Solenoid Valve Terminal 2 And Ground
      G04874946Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK: GO TO  3.

    NG: GO TO  2.

  2. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors E131, M92
    • Harness connectors M70, F58
    • Harness connectors F44, F101 (bank 1)
    • Harness for open or short between intake valve timing control solenoid valve and IPDM E/R
    • Harness for open or short between intake valve timing control solenoid valve and ECM

      • >> Repair harness or connectors.

  3. CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Check harness continuity between ECM terminal 11 (bank 1) or 10 (bank 2) and intake valve timing control solenoid valve terminal 1. Refer to Wiring Diagram.

      Continuity should exist  .

    4. Also check harness for short to ground and short to power.

    OK or NG

    OK: GO TO  5.

    NG: GO TO  4.

  4. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors F44, F101 (bank 1)
    • Harness for open and short between ECM and intake valve timing control solenoid valve

    >> Repair open circuit or short to ground or short to power in harness or connectors.

  5. CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE

    Refer to "COMPONENT INSPECTION ."

    OK or NG

    OK: GO TO  6.

    NG: Replace intake valve timing control solenoid valve.

  6. CHECK INTERMITTENT INCIDENT

    Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ."

    >>INSPECTION END
