Camber, Caster And Kingpin Inclination

WARNING: This page is about a different car, the 2004 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Camber, caster and kingpin inclination are preset at factory and cannot be adjusted.
  1. Measure the camber, caster and kingpin inclination of both the right and left wheels using suitable commercially available attachment tool and alignment gauge.

    Camber, caster and kingpin inclination: Refer to  "SPECIFICATIONS  "

  2. If the camber, caster or kingpin inclination is not within specification, inspect the front suspension parts. Replace any damaged or worn out parts.

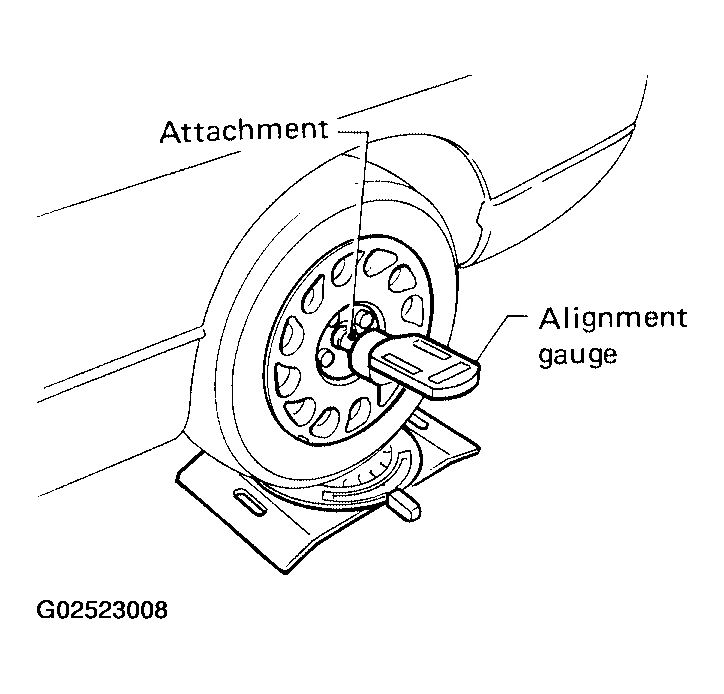

    Fig 1: Measuring Camber, Caster And Kingpin Inclination Of Both Right And Left Wheels Using Alignment Gauge
    G02523008Courtesy of NISSAN MOTOR CO., U.S.A.
