Connector Terminal Identification - Battery Power Supply

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

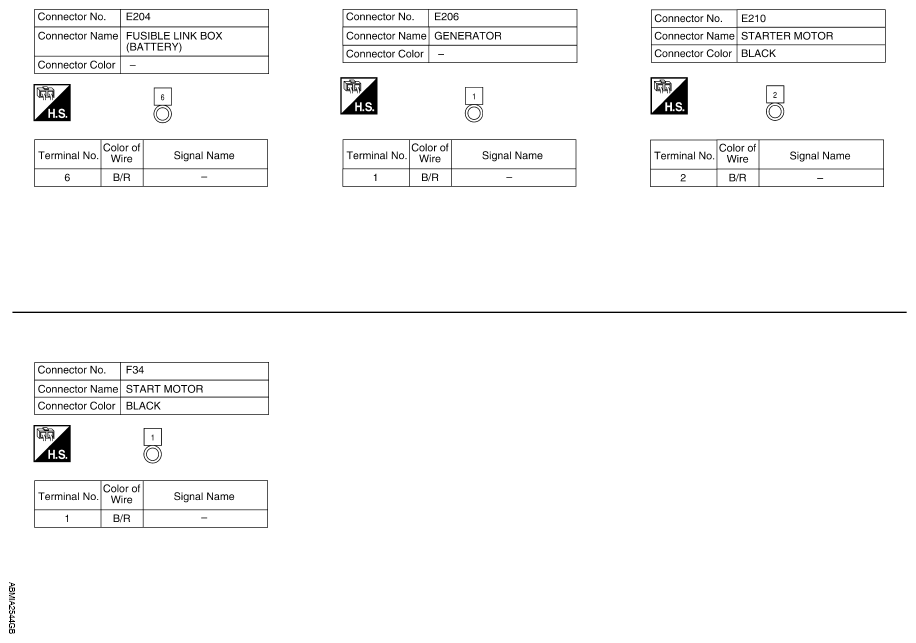

Fig 1: Identifying Battery Power Supply Connectors (1 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

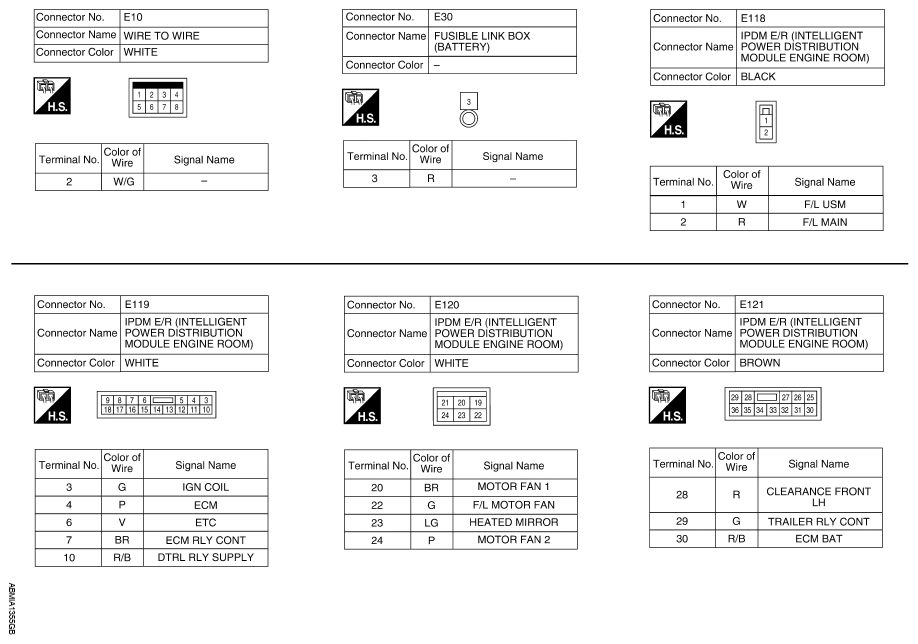

Fig 2: Identifying Battery Power Supply Connectors (2 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

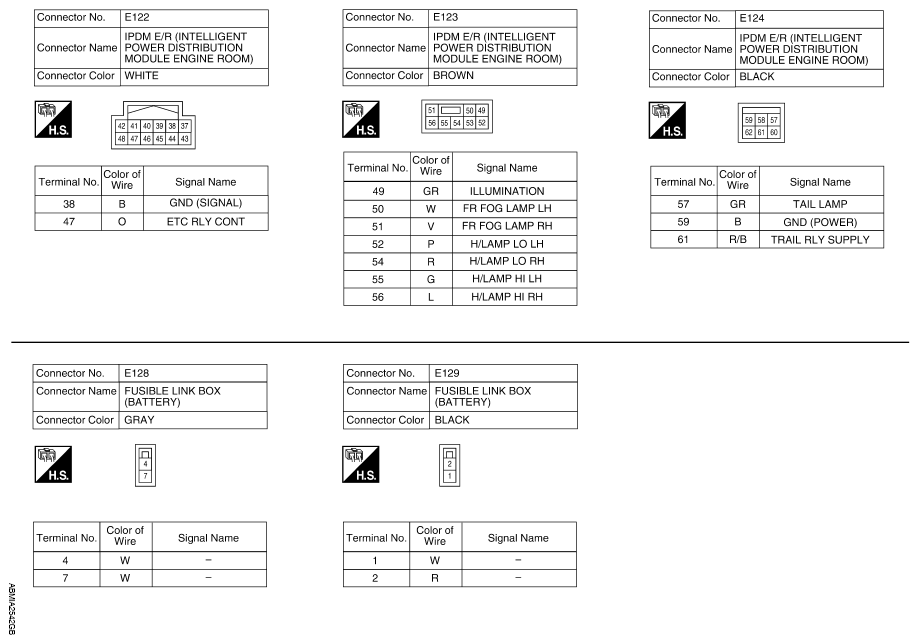

Fig 3: Identifying Battery Power Supply Connectors (3 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

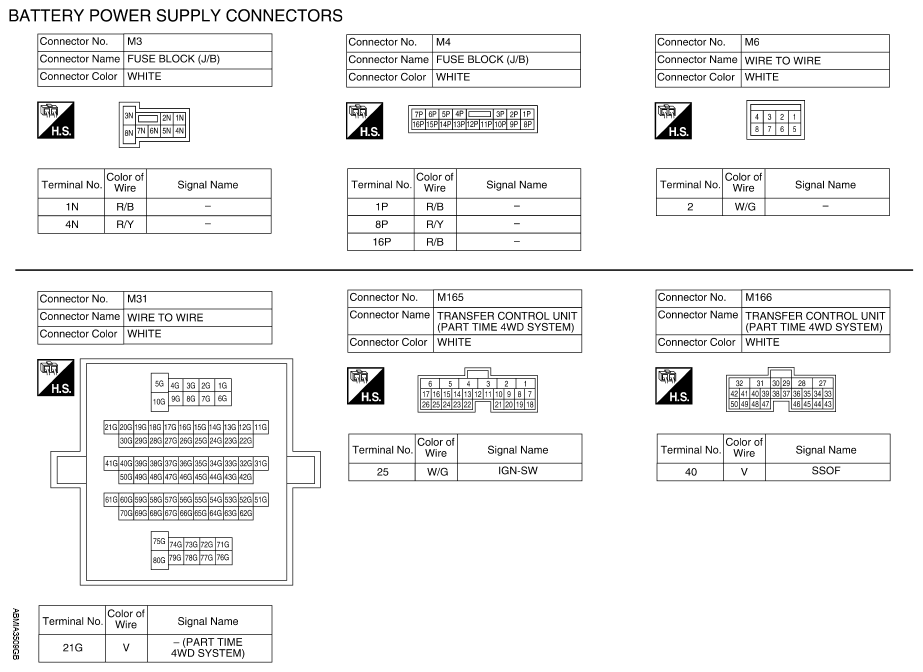

Fig 4: Identifying Battery Power Supply Connectors (4 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

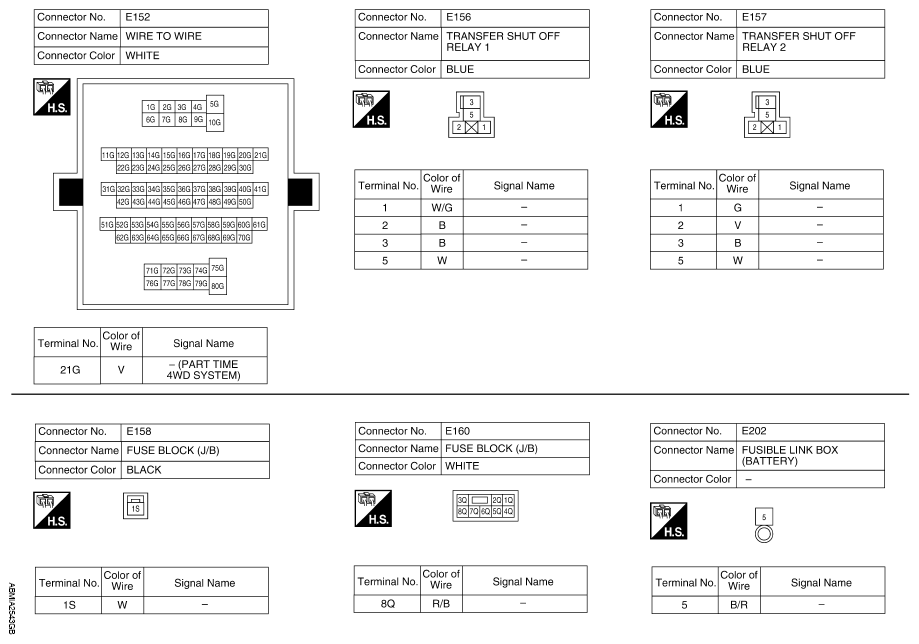

Fig 5: Identifying Battery Power Supply Connectors (5 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.
